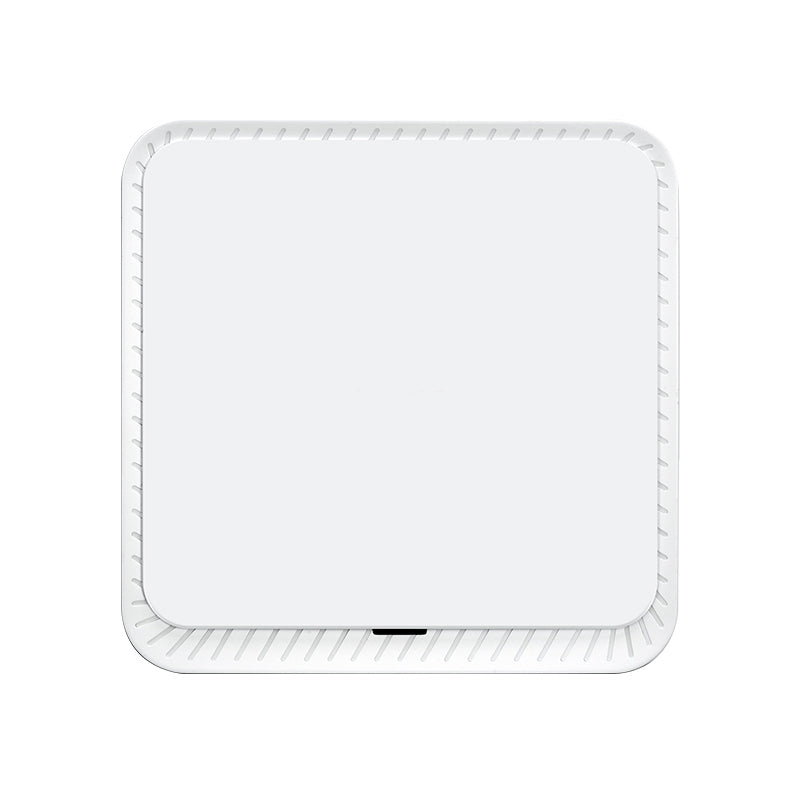

FS-AP-N505, Cloud Managed Wi-Fi 6 802.11ax 3000 Mbps Indoor Access Point, Seamless Roaming & 2 × 2 MU-MIMO Dual Radios, Manageable via Airware, Controller or Standalone (Without PoE Injector)

Equipped with the latest and fastest Wi-Fi 6 (802.11ax) technology, AP-N505 is built to provide your business with next-level coverage, ease of installation and management. It supports 2x2 MU-MIMO, and can simultaneously deliver services on the 2.4 GHz and 5 GHz, achieving a rate of up to 3000 Mbps.

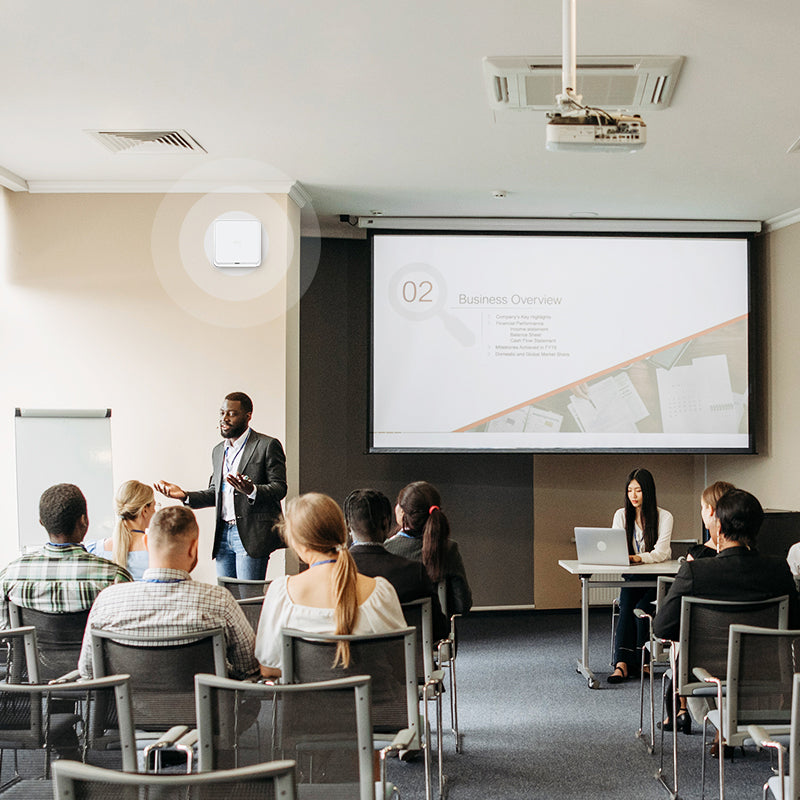

With built-in smart antennas that enable signals to follow Stations (STAs), providing better coverage, the AP is ideal for indoor environments such as small and medium-sized offices, schools, retail spaces, banking and other scenarios.

Specifications

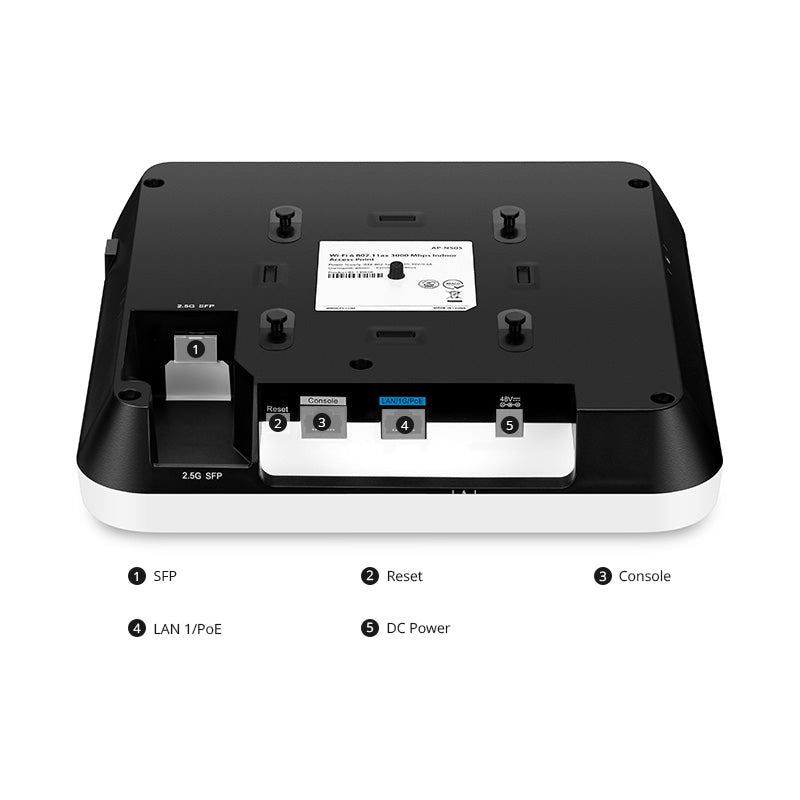

• Wired Interfaces: 1× 10/100/1000Base-T Ethernet port, 1× 2.5G SFP

• Wireless Standards: 802.11/a/b/g/n/ac/ax

• Antenna Type: Built-in Omnidirectional Antenna

• Frequency Band: 2.4 GHz and 5 GHz

• Antenna Gain: 2.4 GHz: 2× 3 dBi; 5 GHz: 2× 3 dBi

• Transmission Rate: 3000 Mbps

• AP Chip: Qualcomm IPQ5018

• MIMO: 2.4GHz: 2x2:2; 5 GHz: 2x2:2

• Power Supply: IEEE 802.3af PoE, DC 48V/0.6A

• Multiple SSIDs: 32

• Power Consumption: 12.95W

• Reference Coverage Radius: 15~20m

• Mount: Ceiling/Wall/T-Shaped Keel/Triangular Keel/Beam/Threaded Rod

• Max Number of Users: 256

• Dimensions (HxWxD): 8.66"×8.66"×1.94"(220x220x49mm)

• Recommended Number of Users: 64

• Operating Temperature: -10 to 50°C (50 to 122°F)

• Operating Mode: FAT/FIT/Cloud AP

• Storage Temperature: -40 to 70°C (40 to 158°F)

• Environment: Indoor
• Wireless Standard: 802.11a/b/g/n/ac/ax
• Frequency: Dual Radios (2.4 GHz and 5 GHz)
• Max Throughput: 3000 Mbps
• Max Client Devices: 256
• Concurrent Client Devices: 64
• Network Interface: 1x 10/100/1000M Base-T Ethernet, 1x 2.5G SFP
• Power-over-Ethernet: 802.3af
• SSIDs: 32
• Management: Airware Cloud, WLAN Controller, Gateway
• IP Rating: IP41
• Recommended For: SMEs, libraries, classrooms


Product Highlights

• Dual Radios 3000 Mbps: 2.4 GHz (2x2), 5 GHz (2x2)

• 160 MHz Frequency Bandwidth, Supporting 5 GHz-prior Access Managed via Airware Cloud/Wireless Controller/Security Gateway or Operate Alone

• Seamless Roaming with Airware Cloud/Wireless Controller/Security Gateway

• WPA3, WIDS and RF Interference Tracking, etc. Ensure Data Security

• Support OFDMA, MU-MIMO, 1024-QAM

• Support High Density Connectivity for Maximum of 256 Clients

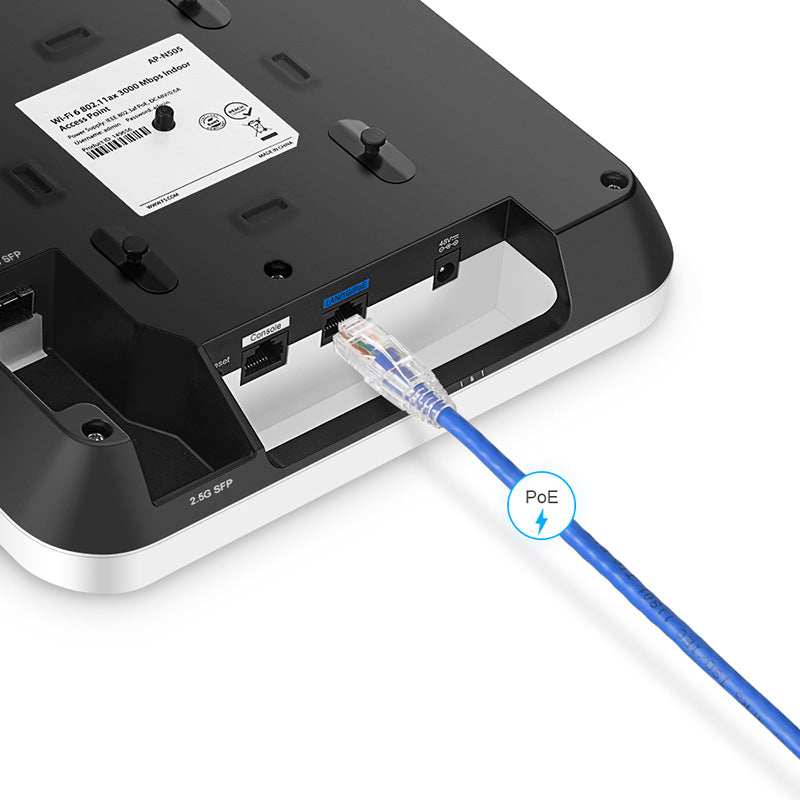

• Powered Using PoE (PoE Injector Sold Separately)

3000 Mbps Ultra-Fast Speed with 160 MHz Band
Double Wi-Fi speeds 160 MHz band, ensuring smooth video streaming, instant audio messaging, and file downloads in seconds.

Wi-Fi 6 That Turbo Boosts Business Performance
Designed to enhance multi-user performance, improve efficiency, and reduce congestion in high-bandwidth usage scenarios.

Always Stay Smooth with Seamless Roaming
Ensure customers enjoy uninterrupted streaming while moving around by switching clients automatically to the access points with the optimal signal.

Enterprise Level Security You Can Trust
Protect network security with stronger encryption and rogue device monitoring.

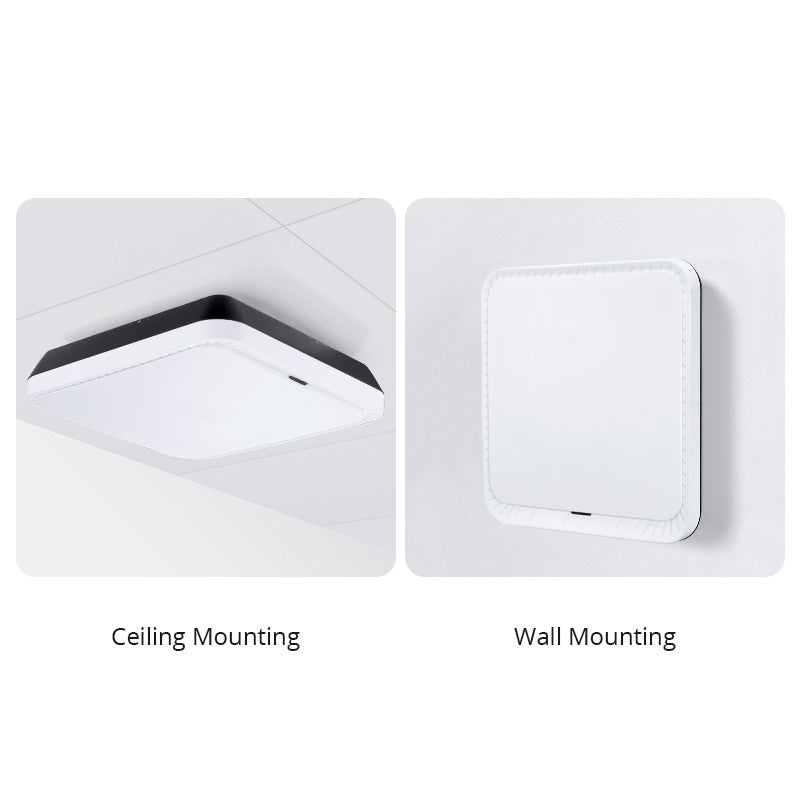

Your Installation Needs Met with Perfection
Support T-shaped, triangular keel ceiling, beam and threaded rod mounting ensuring a solid and stable connection.

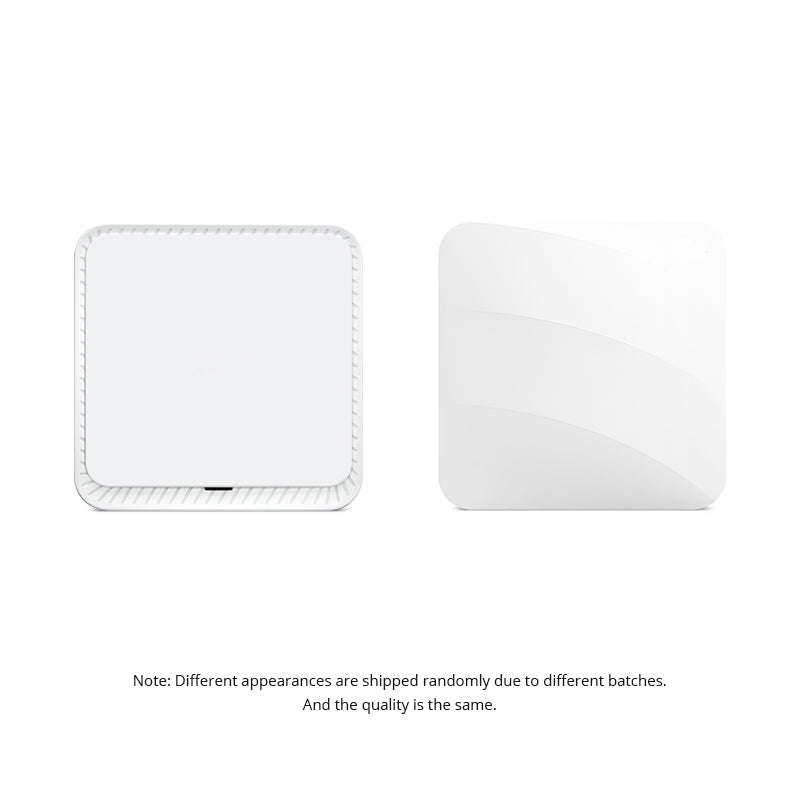

Available in Multiple Styles
Optional covers allow the AP to discreetly blend into a variety of environments.

Airware Cloud-based Network, One Control Center
Allow you to configure and manage 24/7 from one central location to reduce costs and time, streamlining operations and enabling quick deployment with Zero Touch Provisioning.
