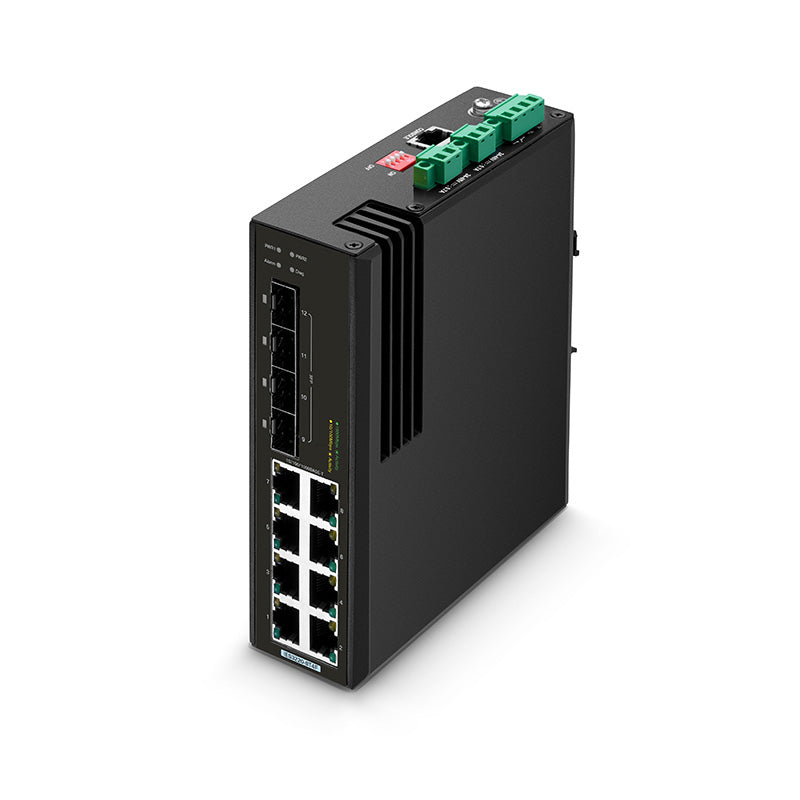

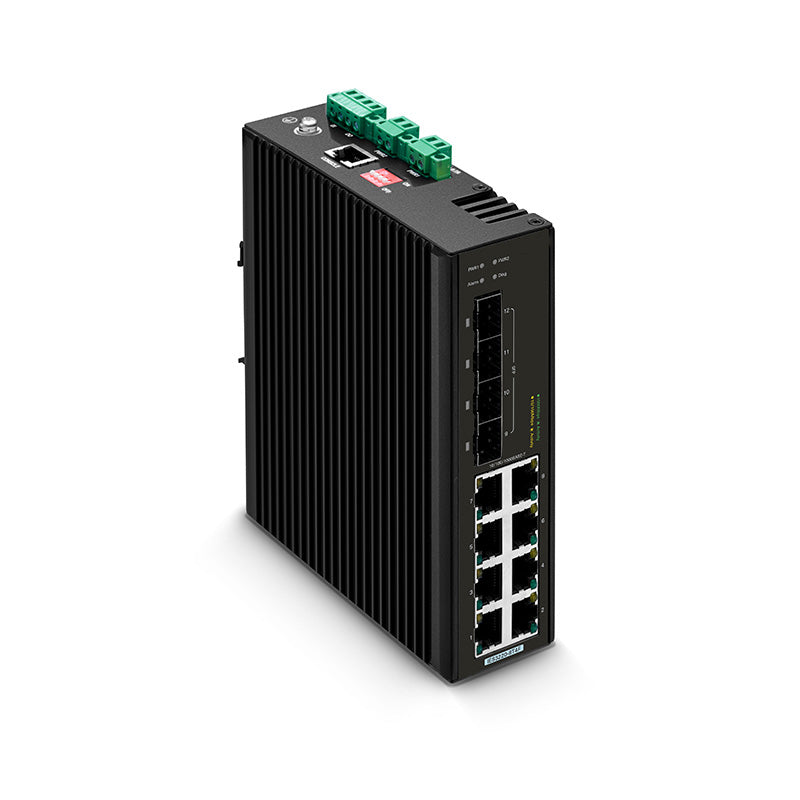

FS-IES3220-8T4F, 8-Port Gigabit Ethernet L2+ Managed Industrial Switch, 8 x 10/100/1000MBASE-T, with 4 x 1Gb SFP, -40 to 75°C Operating Temperature

The FS-IES3220-8T4F features 8x 10/100/1000BASE-T copper ports, 4x 1000BASE-X SFP ports, which is designed especially for a broad spectrum of industrial and extended enterprise connectivity needs. Equipped with an IP41 rated metal enclosure and fanless design, it can operate within a wide temperature range of -40 to 75°C (-40 to 167°F).

This switch is ideal for harsh environments, and can be widely used in public transport, traffic management, smart buildings, and other extreme temperature scenarios.

As a Layer 2+ managed industrial switch, it supports multiple ring protection and redundancy protocols, including ERPS, MRP, RRPP, and VRRP, ensuring fast convergence in under 20ms and compatibility with industrial protocols like Profinet, Ethernet/IP(CIP), Modbus and CC-Link to ensure seamless communication between devices.

This facilitates rapid integration with existing industrial networks while reducing deployment complexity and maintenance costs.

Specifications

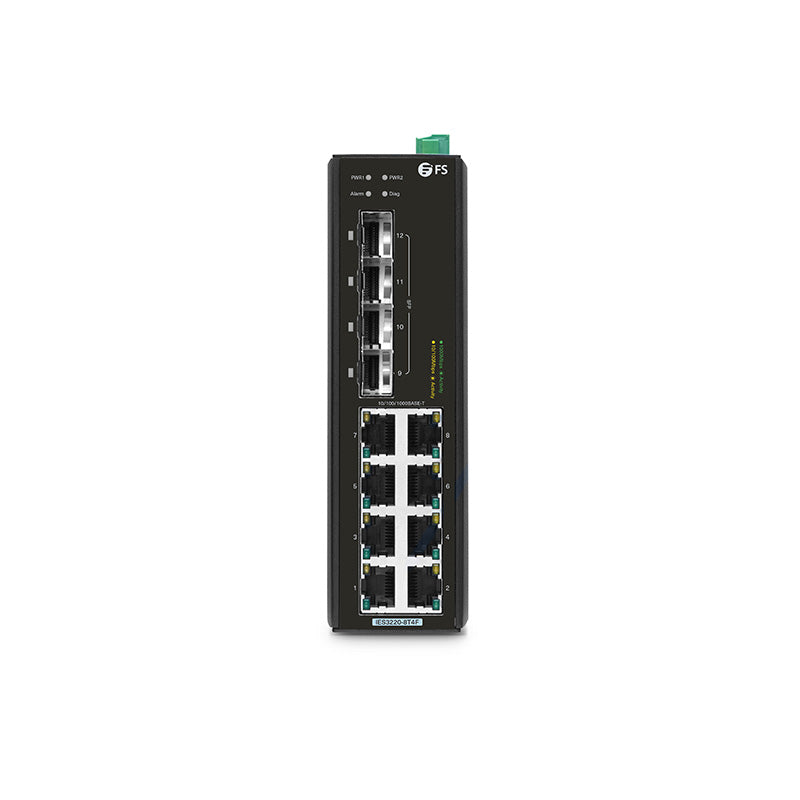

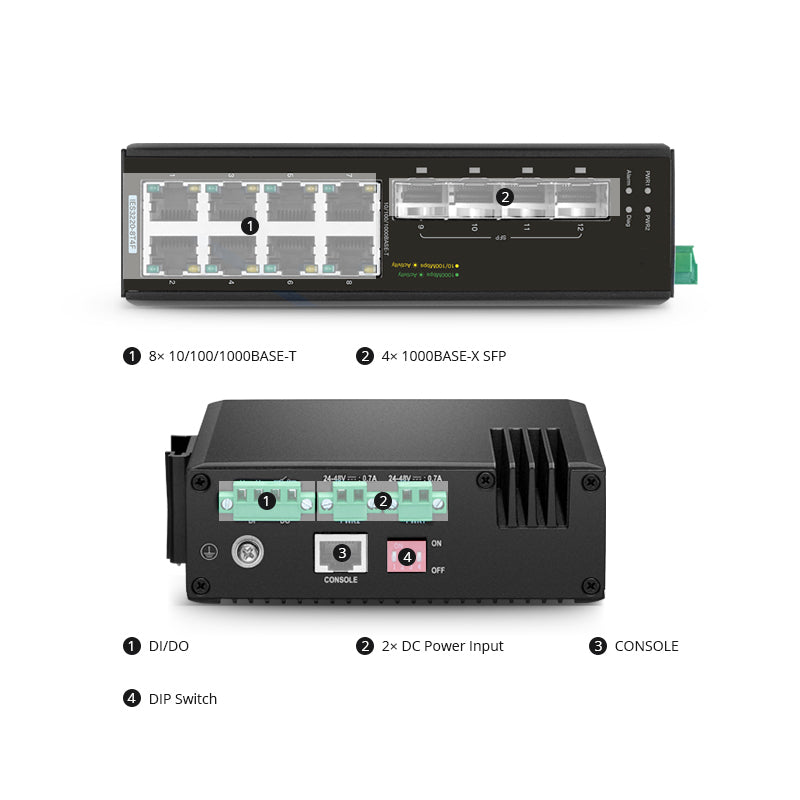

• Ports: 8x 10/100/1000BASE-T RJ45 | 4x 1000BASE-X SFP

• Switch Chip: Marvell AC3

• Switching Capacity: 24Gbps

• MAC Address: 16K

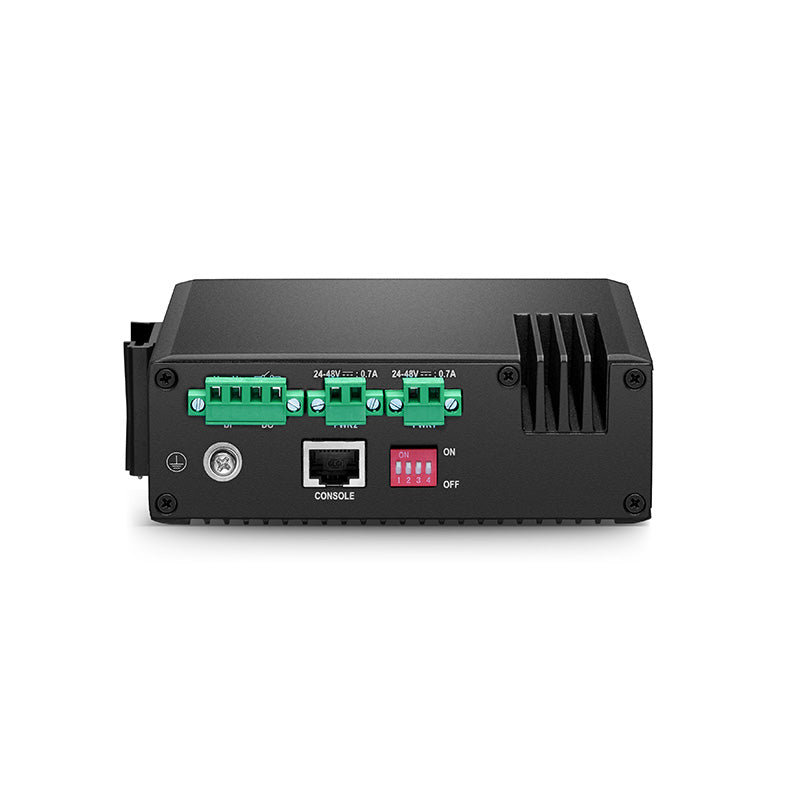

• Power Supply: Dual 1+1 redundant power supplies (DC)

• Input Voltage: 24-48VDC

• Forwarding Rate: 17.86Mpps

• Max. Power Consumption: 17W

• Flash Memory: 256MB

• Operating Temperature: -40 to 75°C (-40 to 167°F)

• Jumbo Frame: 10000

• Storage Temperature: -40 to 85°C (-40 to 185°F)

• Packet Buffer: 1.5Mbit

• Operating Humidity: 5-95%(non‐condensing)

• Fan Number: Fanless

• Management: WEB GUI/SSH/Telnet/SNMP

• Enclosure: IP41 Rated Metal Enclosure

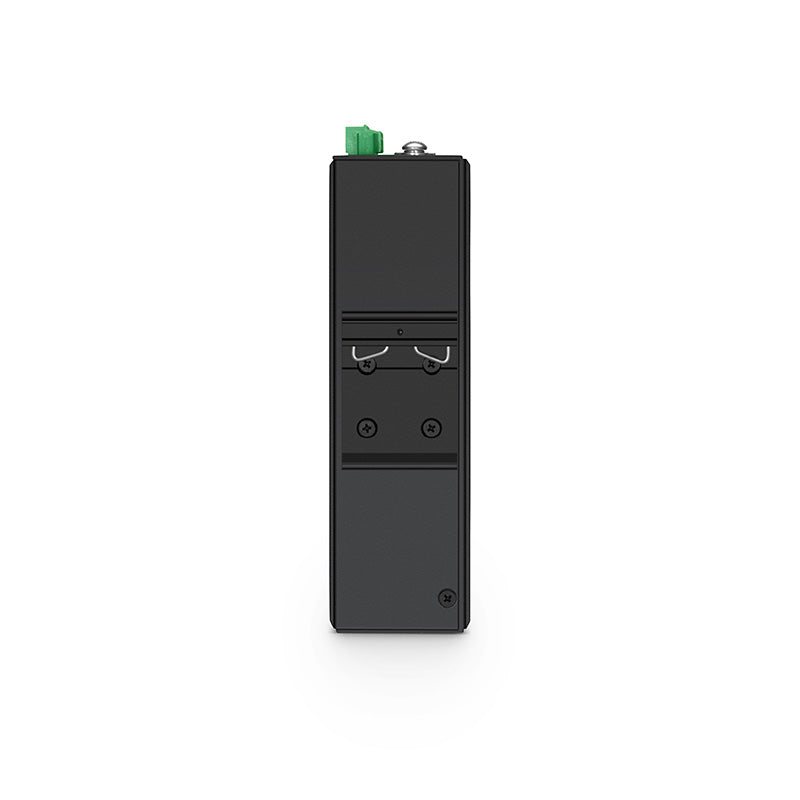

• Installation: DIN-rail Mount

• Dimensions (HxWxD): 5.91''x1.73''x5.19'' (150x44x130mm)

• Weight: ≤1.0kg

Product Highlights

• Marvell AC3 Chip

• Support Transparent Transmission for PROFINET, EtherNet/IP (CIP), Modbus TCP

• Support MRP, RRPP and ERPS Ring Network Protocol

• Support SNMP v1/v2/v3 /CLI / Web / TELNET / FTP

• Support SSH2.0 / SSL /ACLs / ACACS+ / RADIUS / IEEE 802.1x
• RJ45 Ports: 8x 10/100/1000BASE-T RJ45
• SFP Ports: 4x 1000BASE-X SFP
• IP Rating: IP41
• Security: ACLs, TACACS+, RADIUS, IEEE 802.1x, SSH2.0, SSL, IP Source Guard
• Industrial Protocol: PROFINET, Ethernet/IP(CIP), and Modbus TCP
• Redundancy Protocol: MRP, ERPS, RRPP

Software Spotlights

IP Routing

• Supports static routing
• Supports RIPv1/v2, RIPng
• Supports OSPFv1/v2, OSPFv3
• Supports BGP4, BGP4+ for IPv6
• Supports ISIS
• Supports equal-cost routing, policy-based routing
• Supports VRRP/VRRPv3
• Supports BFD for VRRP
• Supports BFD for IPv4
• Supports BFD for IPv6

Multicast Efficiency

• Support IGMP v1/v2/v3
• Support IPv4 IGMP snooping
• Support IPv6 MLD snooping
• Support Multicast VLAN
• Support MVRP (Alternatives to GVRP/GARP)

Industrial Ethernet Protocols

• Support transparent transmission for PROFINET, EtherNet/IP and Modbus TCP
• Supports PTP SyncE

Layer 2 Ring Protection Protocol

• Support STP/RSTP/MSTP
• Support STP root protection
• Support BPDU protection
• Supports G.8032 ERPS with a self-healing time of 30ms
• Supports RRPP with a self-healing time of 30ms
• Supports IEC 62439-2 MRP with a self-healing time of less than 20ms

Error-Free Network Configuration

• Supports remote configuration via Telnet
• Supports configuration through a console port
• Supports SNMP
• Supports RMON for alarms, events and historical data
• Supports SDN/OpenFlow, compliant with the OpenFlow 1.3 standard
• Supports cloud-based management
• Supports web-based network management
• Supports system logging
• Supports hierarchical alarms
• Supports IRF2 stacking technology
• Supports NTP
• Supports power and temperature alarms
• Support NETCONF

Secure and Simplified Access

• Supports hierarchical user management and password protection
• Supports AAA authentication
• Supports Radius authentication
• Supports SSH 2.0
• Supports port isolation
• Supports port security features
• Supports MAC address authentication
• Supports HTTPS
• Supports PKI (Public Key Infrastructure).
• Supports attack source tracing for ARP packets.
• Supports IP Source Guard (including both IPv4 and IPv6)
• Supports DAI, protection against ARP attacks and DDoS
• Supports Secure Boot
• Supports packet filtering functions
• Supports flexible queuing scheduling algorithms

Connectivity Solutions

Full Gigabit Ethernet Interfaces
IES3220-8T4F is available with 8x 1G RJ45, 4x 1G SFP ports to provide secure access for a wide variety of industrial and extended enterprise connectivity needs.

IP41 Aluminum Metal Housing Suitable for Industrial Environments
IES3220-8T4F is equipped with rugged IP41 metal enclosure to withstand a high degree of vibration and shock while operating in industrial environments from -40 to 75°C.

MRP (Media Redundancy Protocol) Enables Failover Protection in Sub-20ms
The MRP protocol eliminates ring network loops, prevents broadcast storms, and it restores network functionality within 10ms in case of link failure or disconnection.

Compact Ethernet Industrial Switches Designed for Tight Spaces
The compact switch supports DIN-rail mount, making efficient use of cabinet space for simple, flexible, and secure deployments.

Compatible with Mutiple Industrial Protocols
Seamlessly integrates mutiple protocols, allowing SCADA/HMI systems to centrally manage PLCs, VFDs, and industrial switches through a single industrial network infrastructure.

Advanced Network Security for Network Management
The switch implements full Ethernet security features to protect your industrial networks and critical assets from cybersecurity attacks.
