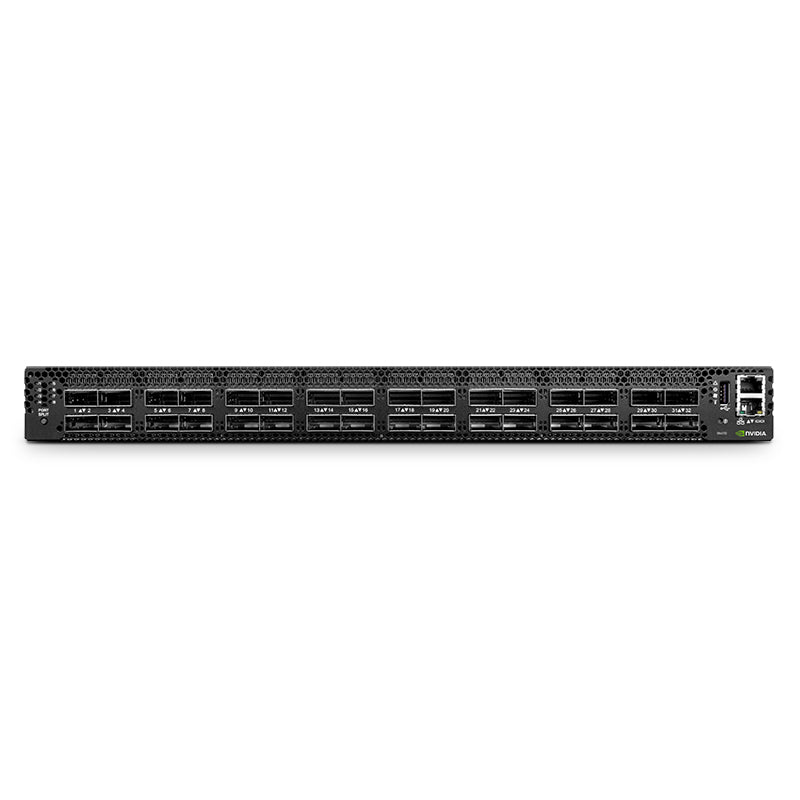

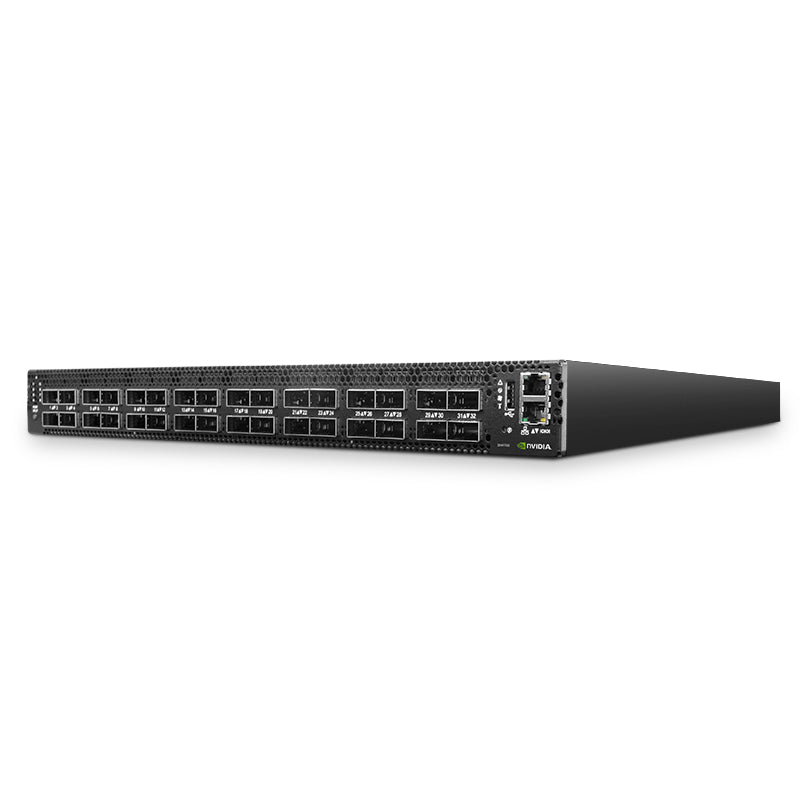

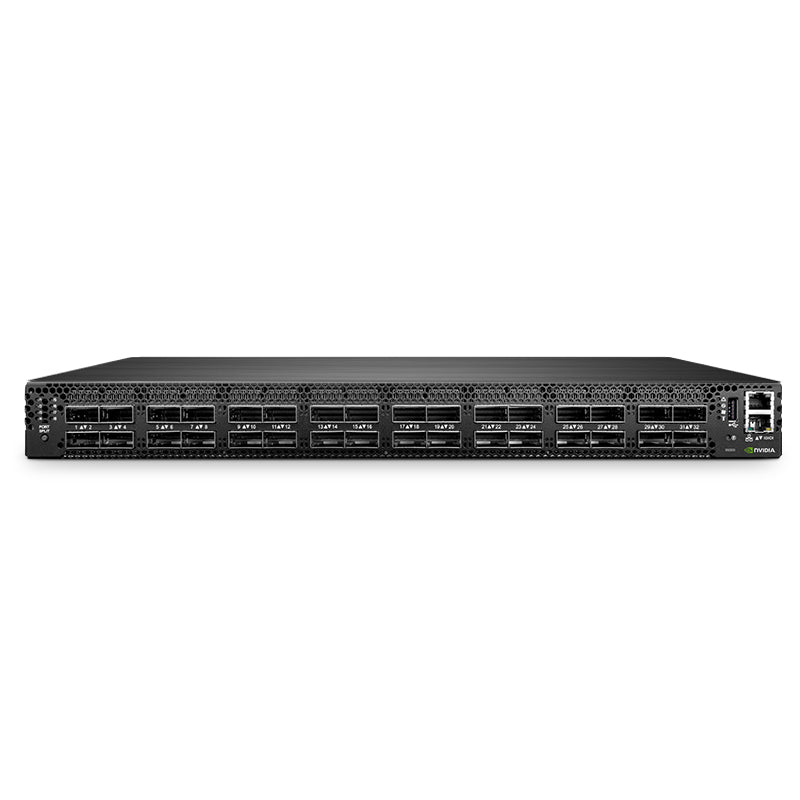

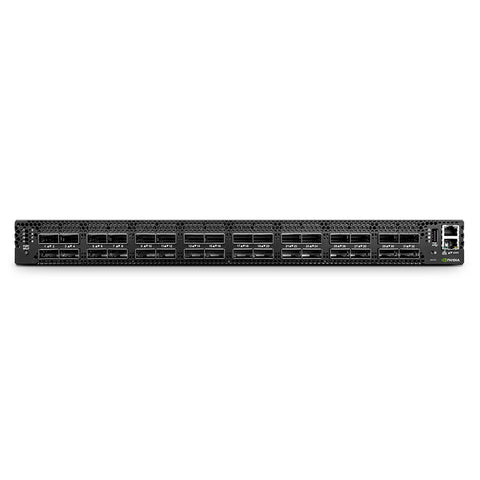

FS-MSN4700-WS2RC, NVIDIA® Mellanox Spectrum-3 Based 32-Port Ethernet L3 Data Center Switch, 32 x 400Gb FS-QSFP-DD, Cumulus Linux™, C2P Airflow, Support RoCE
FS-MSN4700-WS2RC, NVIDIA® Mellanox Spectrum-3 Based 32-Port Ethernet L3 Data Center Switch, 32 x 400Gb FS-QSFP-DD, Cumulus Linux™, C2P Airflow, Support RoCE
FS-MSN4700-WS2RC switch is the 4th generation of Spectrum switches, purpose-built for leaf/spine/super-spine data center applications. It provides port speeds spanning from 1GbE to 400GbE, enables connectivity to endpoints at varying speeds and carries a throughput of 12.8Tb/s, with a landmark 8.4Bpps processing capacity.
It comes pre-installed with NVIDIA Cumulus Linux, a powerful open network operating system that enables advanced automation, customization, and scalability using web scale, making it ideal for web scale IT, cloud, hyperconverged storage, and data analytics applications.
Product Highlights
- Support PTP, SyncE, and BC Clock Mode, Precision in Nanosecond
- NVIDIA® Spectrum-3 Switch with 1/10/25/40/50/100/200/400GbE Interface Speeds
- Support MLAG, BGP-EVPN, VXLAN, MPLS, ECMP, BFD, DCBX, etc.
- Support WJH Telemetry, Inband Network Telemetry (INT), etc. for Visibility
- Enable RDMA over Converged Ethernet Lossless (with PFC and ECN)
- 1+1 Hot-swappable Power Supplies, 6 (N+1) Hot-swappable Fans
- Support OpenFlow, Cloud Scale NAT–100K+ Sessions
- With Robust, Programmable and Innovative Operating System Cumulus Linux
Specifications
- Manufacturer: Mellanox
- Jumbo Frames: 9,216
- Ports: 32x 400Gb QSFP-DD
- CPU: Intel x86 2.20GHz Quad Core
- Max. 400GbE Ports: 32
- Switching Capacity: 12.8 Tb/s
- Max. 200GbE Ports: 64
- Packet Buffer: 64MB
- Max. 100GbE Ports: 128
- Airflow: Front-to-Back
- Max. 50GbE Ports: 128
- System Memory: 16GB
- Max. 40GbE Ports: 64
- Forwarding Rate: 8.4 Bpps
- Max. 25GbE Ports: 128
- SSD Memory: 64GB
- Max. 10GbE Ports: 128
- Input Voltage: 100-264VAC, 50-60 Hz
- Max. 1GbE Ports: 128
- Typical Power (ATIS): 630W
- Hot-swappable AC Power Supplies: 2 (1+1 Redundancy)
- Hot-swappable Fans: 6 (N+1 Redundancy)
- Dimensions (HxWxD): 1.72"x 16.85"x 22.3" (44mmx 428mmx 568.5mm)
- Rack Units: 1 RU
Product Highlights
- Support PTP, SyncE, and BC Clock Mode, Precision in Nanosecond
- NVIDIA® Spectrum-3 Switch with 1/10/25/40/50/100/200/400GbE Interface Speeds
- Support MLAG, BGP-EVPN, VXLAN, MPLS, ECMP, BFD, DCBX, etc.
- Support WJH Telemetry, Inband Network Telemetry (INT), etc. for Visibility
- Enable RDMA over Converged Ethernet Lossless (with PFC and ECN)
- 1+1 Hot-swappable Power Supplies, 6 (N+1) Hot-swappable Fans
- Support OpenFlow, Cloud Scale NAT–100K+ Sessions
- With Robust, Programmable and Innovative Operating System Cumulus Linux
- Switch Speeds: 32x 400G
- Airflow: Front-to-Back
- MLAG: YES
- PTP: YES
- VXLAN: YES
- EVPN: YES
- BGPv4/v6: YES
- PFC: YES
- ECN: YES
- OSPFv2/v3: YES
Software Spotlights
High Availability And Multi-Service Support
- Support stacking/MLAG/VRRP
- Support line-rate IPv4/IPv6 dual-stack multi-layer switching
- Support GR perfect restart, BFD fast forwarding
- Support STP/RSTP/MSTP
- Support MPLS/VXLAN/EVPN
- Support RIP, OSPFv3, BGP4+, and ECMP
Error-Free Network Configuration
- Support SNMP (Managed by Zabbix), RMON, HTTP, log
- Support Syslog, Web-based management, Telnet, SSH
- Support traffic statistics
- Support Global ACL
- Compatible with standard protocols
Secure And Simplified Access for Users And IoT
- Support SNMP (SNMPv1,v2c,v3), RMON
- Support Telnet, SSHv1/v2
- Support BPDU Guard/filtering/transparent
- Support hardware CPU protection mechanism
- Support DHCP snooping
- Support the source IP-based Telnet device access control
Connectivity Solutions
Spectrum Switches Offer Groundbreaking Performance
EVPN-VXLAN Achieves Layer 2 Virtual Network Fabric Dynamically
EVPN-VXLAN expands the potential number of Layer 2 domains, achieving services such as multi-tenant hosting and migration of virtual machines, etc.
MLAG Realizes Uninterrupted Services
The switch running MLAG can be upgraded without disrupting MLAG traffic. During the upgrade, another switch in the system takes over traffic forwarding to ensure uninterrupted services.
Microsecond Latency and Zero Packet Loss
RoCE provides efficient, low latency, lossless transport, necessary for modern datacenter applications. ECN and PFC are the key technologies to realize low latency, lossless transport.
