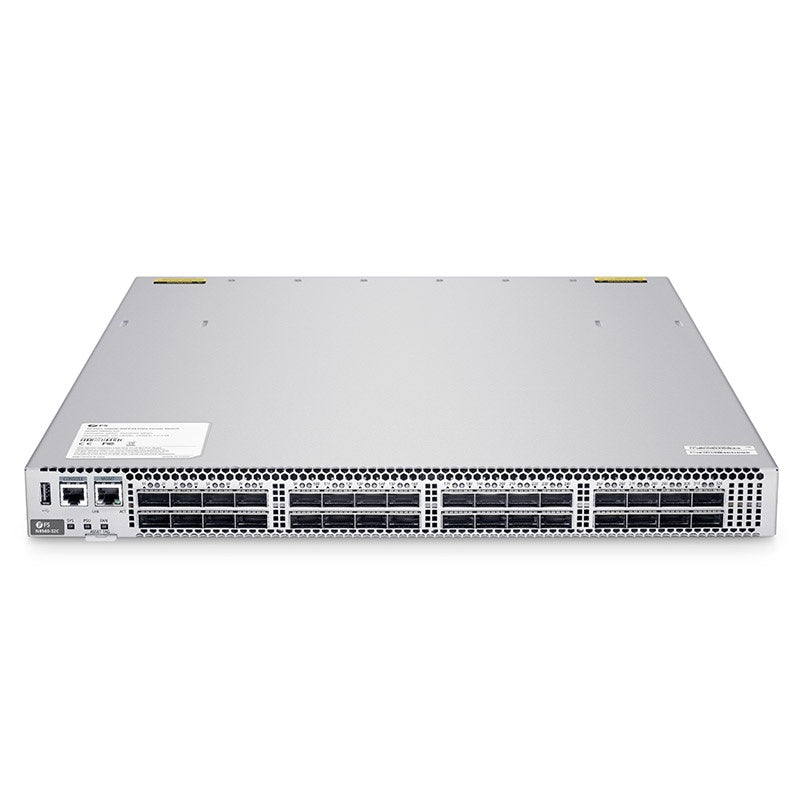

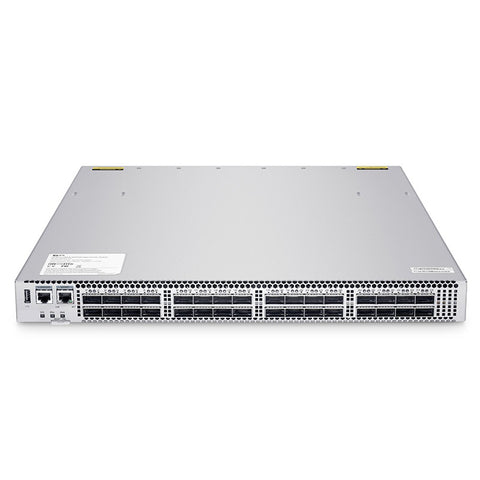

FS-N8560-32C, 32-Port Ethernet L3 Data Center Switch, 32 x 100Gb QSFP28, Support MLAG/Stacking, Broadcom Chip, Front-to-Back Airflow

The FS-N8560-32C provides line-rate L3 switching across the 32x QSFP28 ports, and each QSFP28 port can be configured as 40/100GbE, or as 4x 10/25GbE or 2x 50GbE via breakout cables.

The compact 1U switch can be deployed as a top-of-rack (ToR) switch supporting 10/25GbE to servers with 40/50/100GbE, or as a spine switch supporting 40/50/100GbE spine interconnects.

FS-N8560-32C supports PFC, DCBX, ECN and RoCEv2 to deliver low-latency, zero packet loss, non-blocking lossless Ethernet, VXLAN, EVPN for virtual network expansion, and supports features like GR, BFD mechanisms to ensure normal operation when the network bears abundant services and heavy traffic.

Product Highlights

• Flexible 10/25/40/50/100GbE Interface Speeds

• Support MLAG/Stacking, BGP4/BGP4+, EVPN-VXLAN, RoCEv2, REUP, GR, BFD

• Enable RDMA over Converged Ethernet Lossless (with PFC and ECN)

• 1+1 Hot-swappable Power Supplies, 4+1 Smart Fans

• Support Ansible, OpenFlow, NETCONF, etc. Configuration and Automation Tools

• Support SPAN/RSPAN/ERSPAN and In-band Network Telemetry (INT) for Visibility

• Support ACL, RADIUS, TACACS+, DHCP Snooping, etc. for Security

• Support SNMP v1/v2c/v3, CLI, Telnet, SSH

Specifications

• Ports: 32x 100G QSFP28

• Switching Capacity: 3.2 Tbps

• Switch Chip: BCM56870

• Forwarding Rate: 2980 Mpps

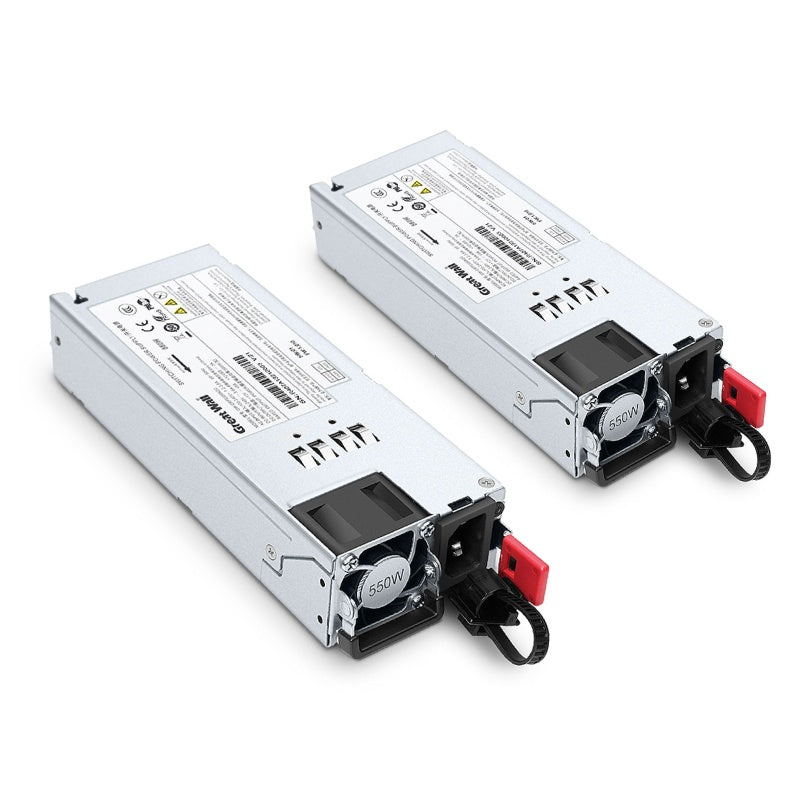

• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC

• Packet Buffer: 32MB

• Fans: 5x Hot-swappable Fans, Front-to-Back

• Jumbo Frame: 9,216

• Dimensions (HxWxD): 1.73"x 17.4"x 22" (44x 442x 560mm)

• MTBF: 390,000 hours

• Weight: 28.2 lbs (12.8kg)

• MAC Address: 10000

• Input Voltage: 100-240VAC, 50-60Hz

• IPv4/IPv6 Routes: 128,000/64,000

• Input Current: 3.6A

• Number of VLANs: 4K

• Max. Power Consumption: <450W

• SDRAM: 8GB

• Operating Temperature: 0 to 40ºC (32 to 104°F)

• Flash Memory: 240GB (SSD)
• Ports: 32x 100G QSFP28
• Switching Capacity: 3.2 Tbps
• Forwarding Rate: 2980 Mpps
• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC
• Fans: 5 (4+1 Redundancy), Front-to-Back
• Max. Power Consumption: <450W
• MLAG: Yes
• Stacking: Yes
• VXLAN/EVPN: Yes

Software Spotlights

High Availability And Multi-Service Support

• Support MLAG/Stacking
• Support Virtual Router Redundancy Protocol (VRRP)
• Support GR perfect restart, BFD fast forwarding detection and other mechanisms
• Support IPv4/IPv6 Dual Protocol Stack
• Support Unicast Routing
• Support Hot swap without affecting normal operation of other devices

Error-Free Network Configuration

• Support VXLAN-EVPN
• Support Ansible, OpenFlow, NETCONF, etc. Configuration and Automation Tools
• Support RoCEv2 (RDMA over Converged Ethernet Version2)
• Support ECN, DCBX
• Realized lossless Ethernet low-latency forwarding based on RDMA (Remote Direct Memory Access)
• Support DHCP snooping
• Support hardware-based IPv6 ACLs

Secure And Simplified Access for Users And IoT

• Support SNMP (SNMPv1,v2c,v3), RMON, gRPC,
• Support the Secure Shell (SSH) and SNMPv3
• Support the source IP-based Telnet device access control
• Support In-band Network Telemetry (INT)
• Support Network Foundation Protection Policy (NFPP)
• Support Zero Touch Provisioning (ZTP)

Connectivity Solutions

High-Performance Computing DC Network Solution
Provide continuous high-throughput network for HPC, machine learning and more. Ideal for IDC hosting, entertainment, education, research, finance, and other industries.

Flexible Interface Speeds for Multi-scenario Deployment
10/25G for servers, 40/50/100G uplinks for spine switches.

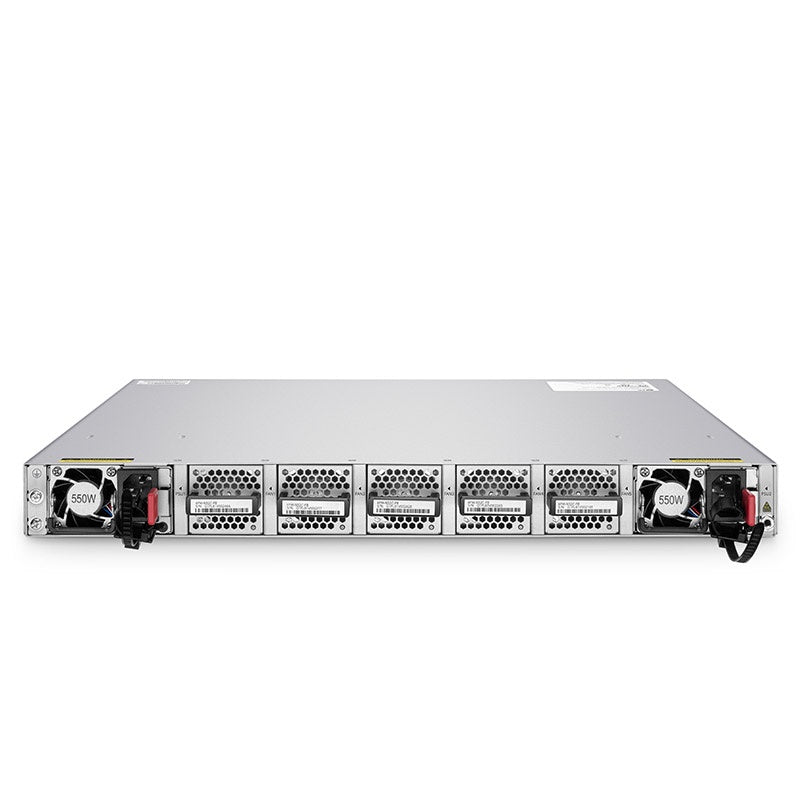

Dual Redundant Power Supplies and Smart Fans
Ship with dual power supplies and smart fans by default, provide high availability and longevity.

Stacking Simplifies Network Configuration
Stacking virtualization technology virtualizes multiple physical devices into a logical device, simplifying network configuration and structure, eliminating loops, and improving reliability.

Accelerate Provisioning from Days to Minutes
Simplify duplicate network configuration by automation helpers like NETCONF, Python, Zero Configuration, Ansible, gRPC, OpenFlow, greatly save daily operation costs and time.
