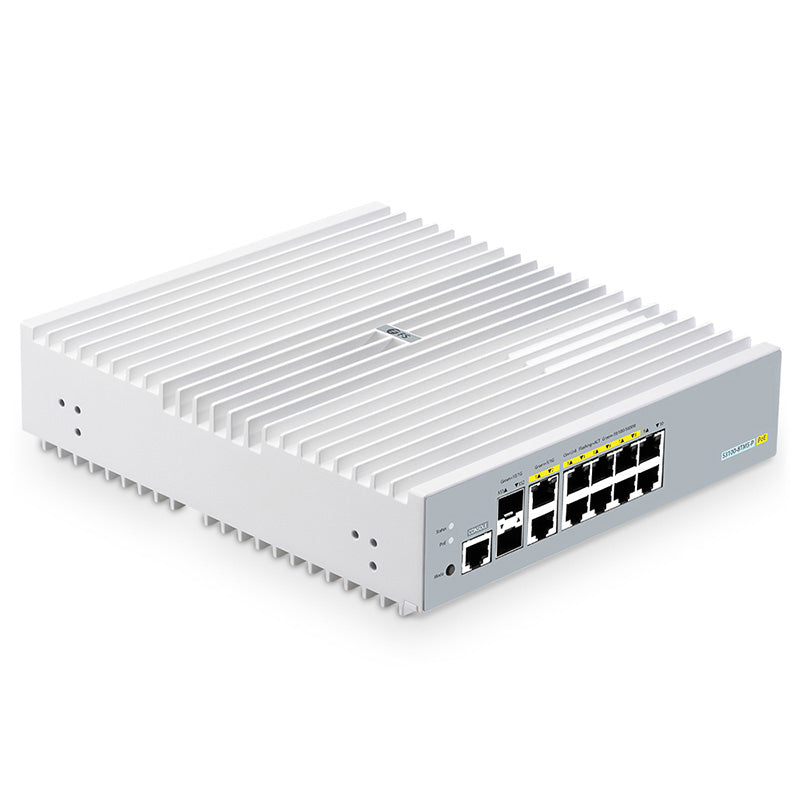

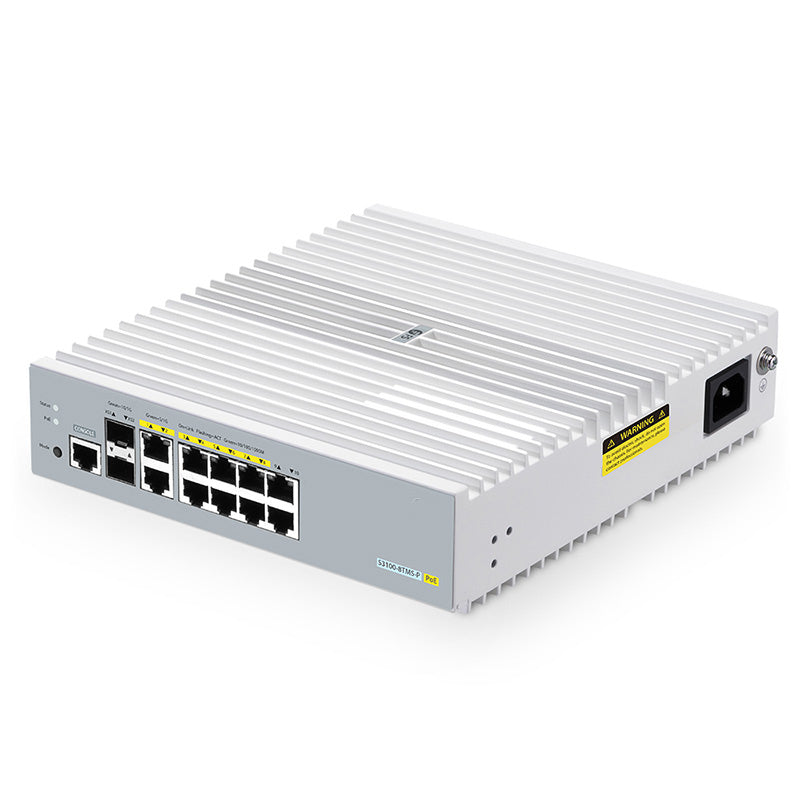

FS-S3100-8TMS-P, 8-Port Gigabit Ethernet L2+ PoE+ Switch, 8 x PoE+ Ports@125W, 2 x 5Gb RJ45, with 2 x 10Gb SFP+ Uplinks, Broadcom Chip, Fanless
FS-S3100-8TMS-P, 8-Port Gigabit Ethernet L2+ PoE+ Switch, 8 x PoE+ Ports@125W, 2 x 5Gb RJ45, with 2 x 10Gb SFP+ Uplinks, Broadcom Chip, Fanless
FS-S3100-8TMS-P is equipped with 8x 10/100/1000MBASE-T ports, 2x 1000M/2.5G/5GBASE-T ports, 2x 1/10Gb SFP+ uplinks. The 8 ports support IEEE 802.3af/at PoE+ (up to 30W per port), powering IP phones, wireless access points, and other standards-compliant network devices.
5G Ethernet ports, meeting the requirements of new services and enhancing service scalability. This enterprise switch adopts Broadcom chip for 76 Gbps switching capacity and 49.1 Mpps forwarding rate. Its fanless design ensures silent operation, lower costs, and reduced power consumption.
Simplified management, advanced features, and robust security enhance digital transformation and protect critical transactions. Ideal for education, business, hospitals, and office parks, it supports future network expansion and lowers operational costs with its all-optical Ethernet and FTTx architecture.
Product Highlights
- BCM56150 Chip, Up to 8 PoE+ Ports, Total Budget 125W
- Fanless Design, Always Working <35dB
- Compact Design with Multiple Mounting Options
- Support DHCP Snooping, Voice VLAN, LACP, QoS, etc.
- Support Airware Cloud/CLI/WEB/SNMP for Flexible Operation
Specifications

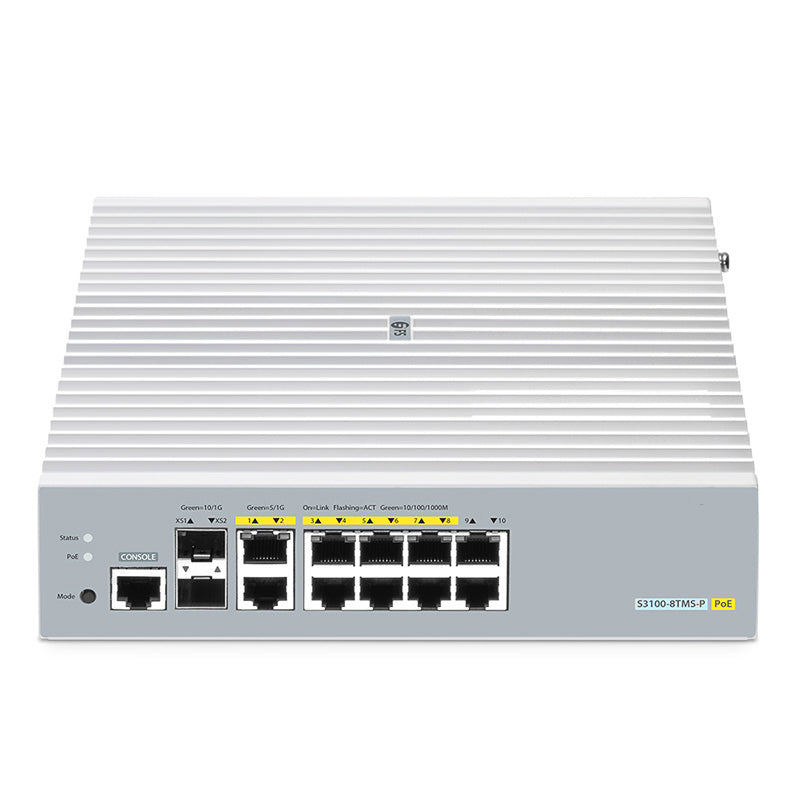

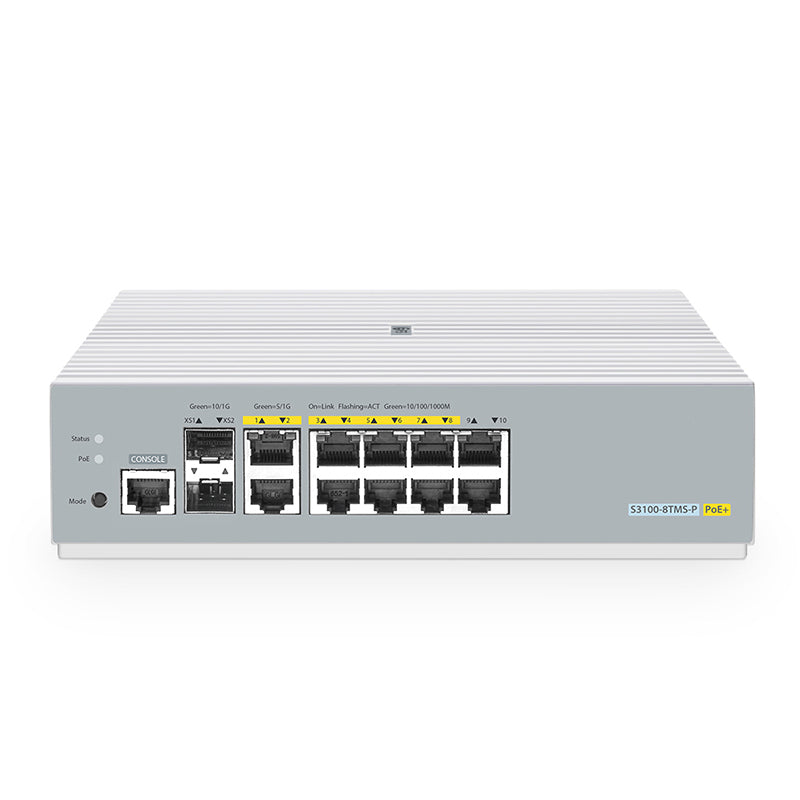

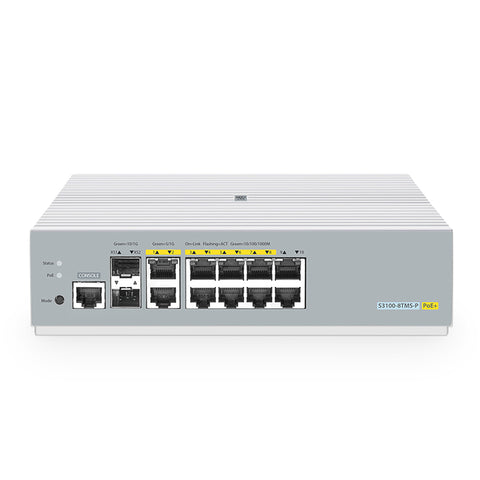

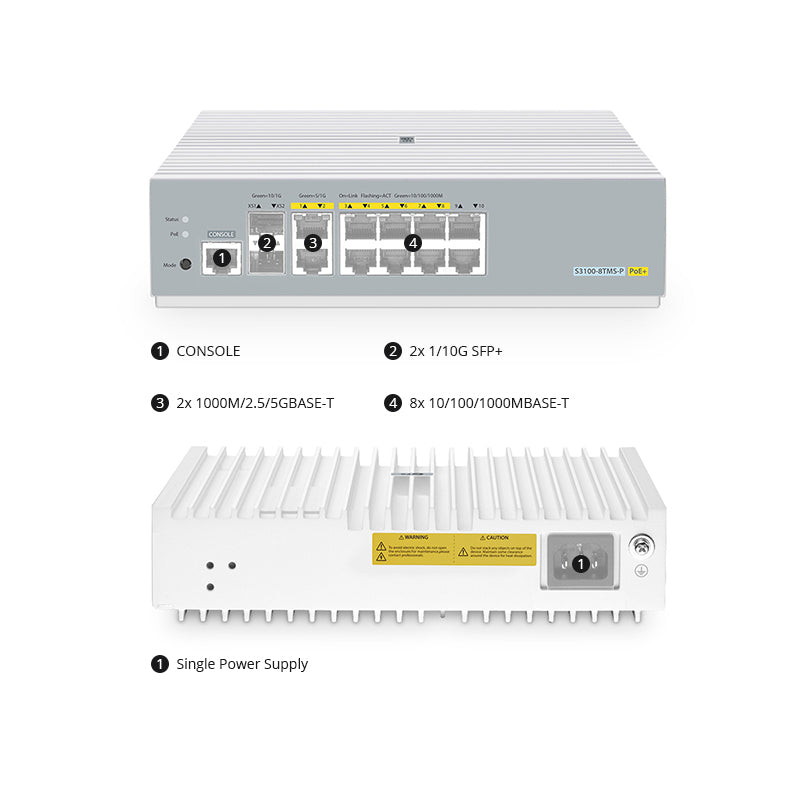

- Ports: 8x 10/100/1000MBASE-T, 2x 1000M/2.5G/5GBASE-T, 2x 1/10Gb SFP+
- Switch Chip: Broadcom BCM56150
- Switching Capacity: 76 Gbps
- PoE Standard: IEEE 802.3af/at
- Flash Memory: 256MB
- Forwarding Rate: 49.1 Mpps
- MAC Address: 16K
- SDRAM: 512MB
- Rated Voltage Range: 110-220VAC
- MTBF: > 200000 Hours
- Acoustic Noise: ＜35dB
- HVDC: Support
- Jumbo Frame: 9K
- Max. Power Consumption: < 25W (Full Load without PoE), < 150W (Full Load with PoE)

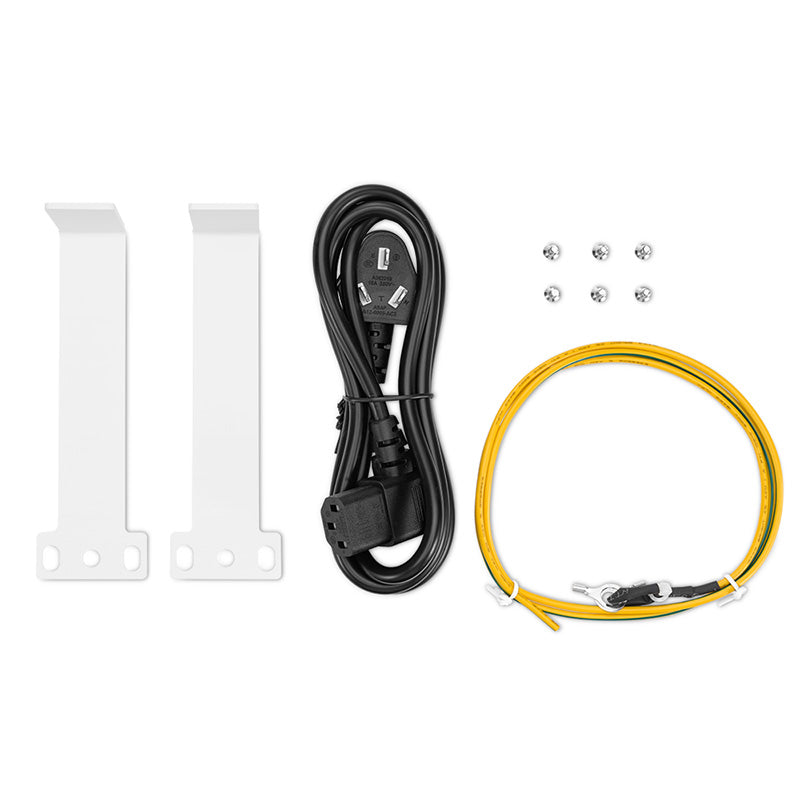

- Mounting Options: Desktop, Wall, Rack and Weak Current Box
- Storage Temperature: -40 to 70ºC (-40 to 158°F)
- Operating Temperature: 0 to 45°C (32 to 113°F)
- Operating Humidity: 5% to 95% (Non-condensing)
- Dimensions (HxWxD): 2.17''x8.27''x9.25''（55x210x235mm）
- PoE Budget:125W
Software Spotlights
High Availability and Multi-Service Support
- Support LACP dynamic aggregation
- Support QinQ
- Support voice VLAN, 4K static VLAN, IEEE 802.1Q VLAN
- Support RIP, OSPF
- Support EEE (802.3az)
- Support BPDU guard/filtering
- Support IGMP Snooping (V1, V2, V3)
Error-Free Network Configuration
- Support SNMP v1/v2c/v3
- Support WEB UI, Telnet, RMON, SSH, Syslog/Debug
- Support STP/RSTP/MSTP
- Support ERPS
- Support managing two physically isolated networks on one device
Secure and Simplified Access for Users and IoT
- Support ARP spoofing prevention
- Support actively defending against ICMP requests
- Support hardware CPU protection mechanism
- Support Network Foundation Protection Policy (NFPP)
- Support DHCP snooping
- Support ACL
- Support RADIUS, TACACS+
Connectivity Solutions
Simplified All-optical Ethernet Solution for Next-gen Network
Fiber-to-the-x (FTTx) deployment, integrating CWDM with Ethernet, offers enterprise exclusive networks with high bandwidth, low latency, high flexibility, and simplified maintenance.
Multi-Gigabit Ports Ensure Agile Network Expansion
It provides 8x 10/100/1000MBASE-T RJ45 ports, 2x 1/2.5/5G ports, 2x 10G uplink optical ports, and is PoE+ compatible, supporting full-service expansion.
Small Size for Flexible FTTx Deployment
With multiple mounting options, this fanless compact switch is ideal for FTTx deployment in space-constrained and quiet environments.
Ultra-Fast 5G Ethernet Port for Enhanced Connectivity
Experience lightning-fast downlink speeds with the 5G Ethernet port, perfect for fully loading Wi-Fi 6 access points. Boost data rates and expand service capabilities effortlessly.
Comprehensive Security Policy Protects from Network Threats
With network-level security and stability capabilities like SSH, ACL, TACACS+, etc., it defends against network threats for enterprises, campus and financial industry.
Comprehensive Security Policy Protects from Network Threats
With network-level security and stability capabilities like SSH, ACL, TACACS+, etc., it defends against network threats for enterprises, campus and financial industry.
Full-metal Integrated Design to Ensure a Long Product Life
The interior components are protected by high-quality metal casing to ensure a long product life. Having passed IP40 and IK05 tests, it can operate reliably in various scenarios.
