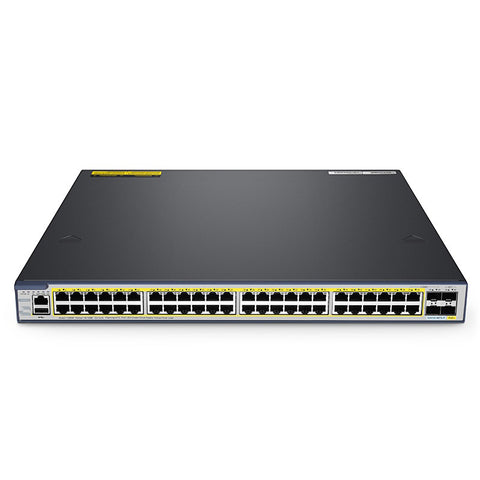

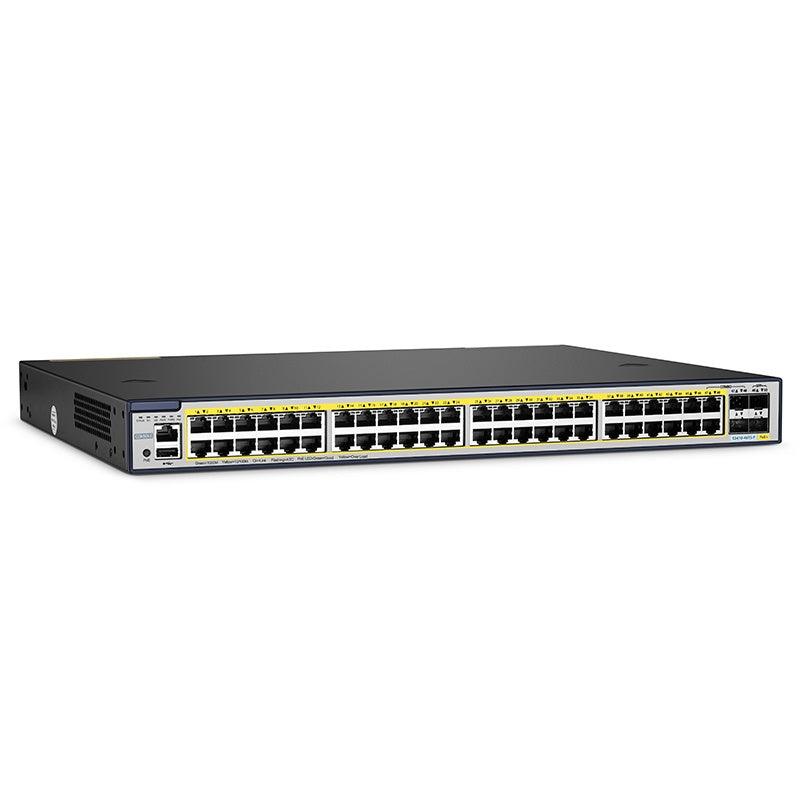

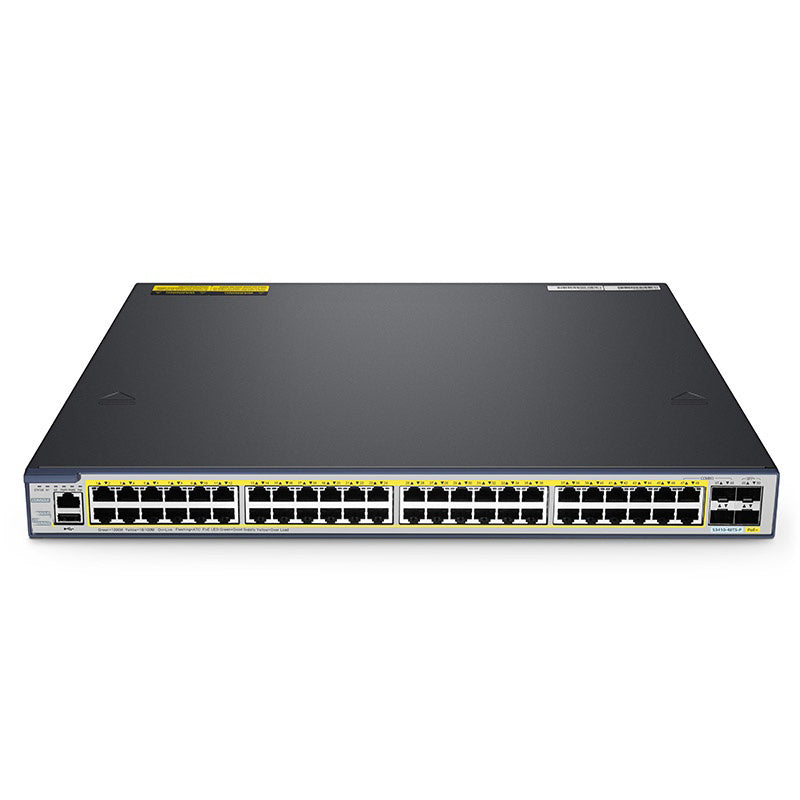

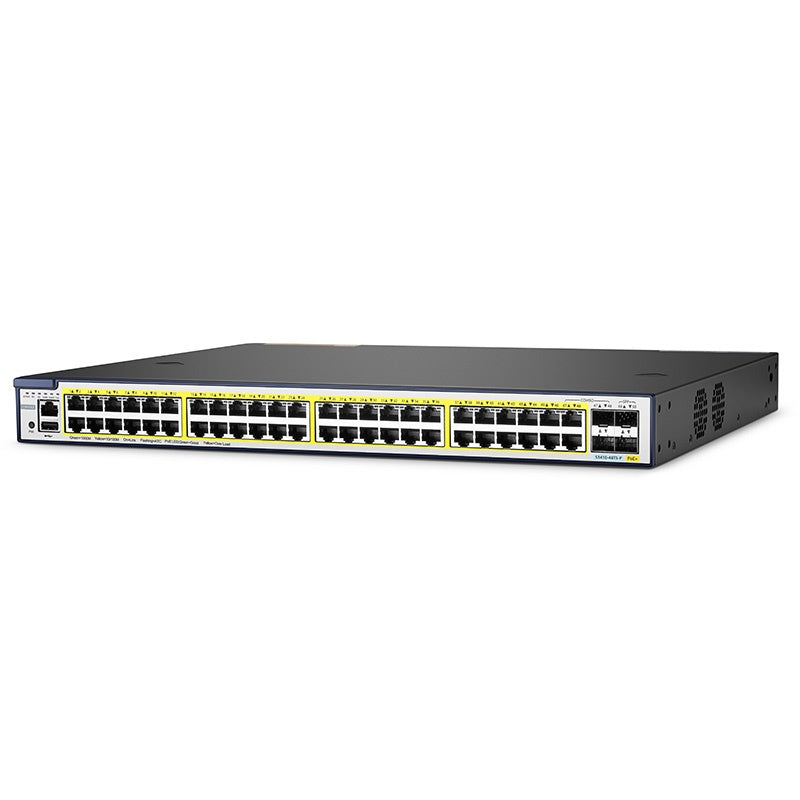

FS-S3410-48TS-P, 48-Port Gigabit Ethernet L2+ PoE+ Switch, 48 x PoE+ Ports @740W, with 2 x 10Gb SFP+ Uplinks and 2 x Combo SFP Ports, Stackable switch, Broadcom Chip
FS-S3410-48TS-P, 48-Port Gigabit Ethernet L2+ PoE+ Switch, 48 x PoE+ Ports @740W, with 2 x 10Gb SFP+ Uplinks and 2 x Combo SFP Ports, Stackable switch, Broadcom Chip
S3410-48TS-P 48-port managed PoE+ switch is equipped with 48x 10/100/1000BASE-T ports, 2x 1Gb RJ45/SFP combo ports and 2x 1/10Gb SFP+ uplinks. 48x RJ45 ports support both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port) for powering attached IP phones, wireless access points, or other standards-compliant PoE and PoE+ end network devices. I
t supports 4 Units of virtual stacking. This managed enterprise switch delivers 176 Gbps switching capacity and 132 Mpps forwarding rate. It comes with dual redundant hot-swappable power supplies and dual smart fans, ensuring superior processing performance and network reliability.
Secure and simple access for users and loT with FS Airware Cloud. This access switch offers a compact and cost-effective solution for campus networks, SMBs, and enterprise networks.
Specifications

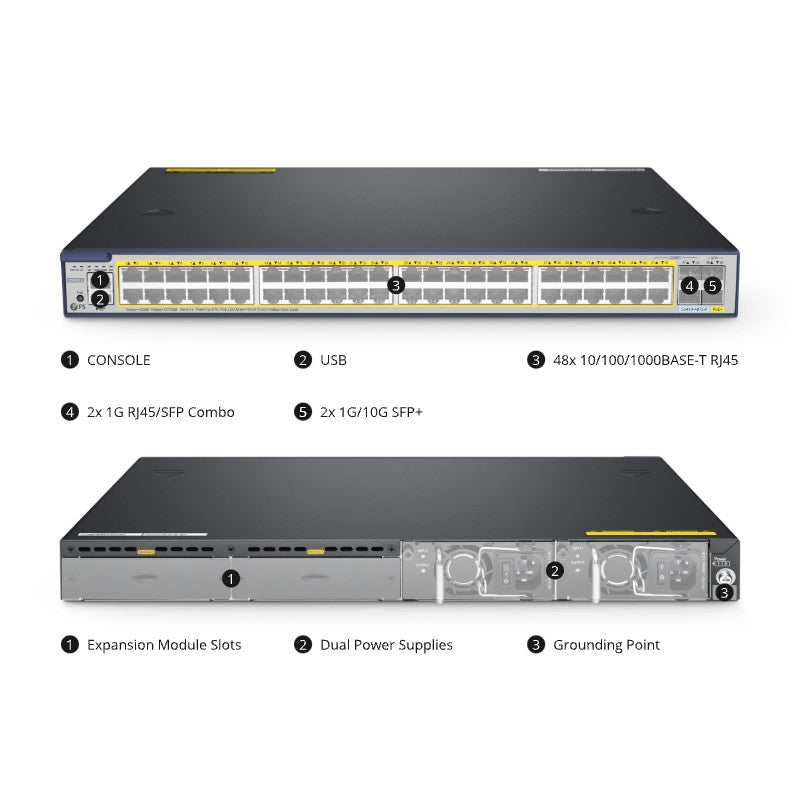

- Ports: 48x 10/100/1000BASE-T RJ45, 2x 1G RJ45/SFP Combo | 2x 1G/10G SFP+
- PoE Standard: IEEE 802.3af/at
- Switch Chip: BCM56150
- Stacking: Support
- Switching Capacity: 176 Gbps
- ARP Table: 1,000
- Forwarding Rate: 132 Mpps
- Number of VLANs: 4K
- Power Budget (Dual-power): 740W
- MAC Address: 16K
- Flash Memory: 512MB
- Jumbo Frame: 9,216
- Packet Buffer: 1.5MB
- Total number of IPv4 routes: 500
- Power Supply: 1+1 Hot-swappable
- Management: SNMPv1/v2/v3, RMON, Syslog, sFlow, WEB
- Fan Number: 2 Built-in
- Dimensions (HxWxD): 1.73''x17.32''x14.17'' (44x440x360mm)
- Airflow: Left-to-Right
- Mounting Options: Desktop or Rackmount or Wall-mount
- Max. Power Consumption: 57W (850W with PoE)
- RJ45 Ports: 48x 100/1000M
- Fiber Ports: 2x 1G SFP, (2 Combo), 2x 10G SFP+
- PoE Ports: 48 PoE/24 PoE+
- PoE Budget: 740W
- Management Layer: L2+
- Stacking: Up to 4 Units
- Power Supply: 1+1 Redundant Hot-swappable
- Fan: 2 Built-in Smart Fans
- QoS, IGMP Snooping, Link Aggregation, IPv6, L3 Static Routing, RIP, OSPF: Yes
- Advanced Security: Yes
Connectivity Solutions
Features
Cloud Platform Enables Unified Management of Branch Networks
Airware unifies the management of network devices, suitable for industries that have branches, like hotel chains, retail chains, company branches, university branches, etc.
Gigabit Port Configuration
48× PoE 10/100/1000 Mbps RJ45 ports provide up to 30W per port and total PoE power budget of 740W, together with 2 x 10Gb SFP+ slots for high-speed optical connections.
740W Power Budget Powers more Devices
48 PoE / 24 PoE+ auto-sensing ports support high-density access to different devices, simplify network infrastructure, reduce cabling and future maintenance costs.

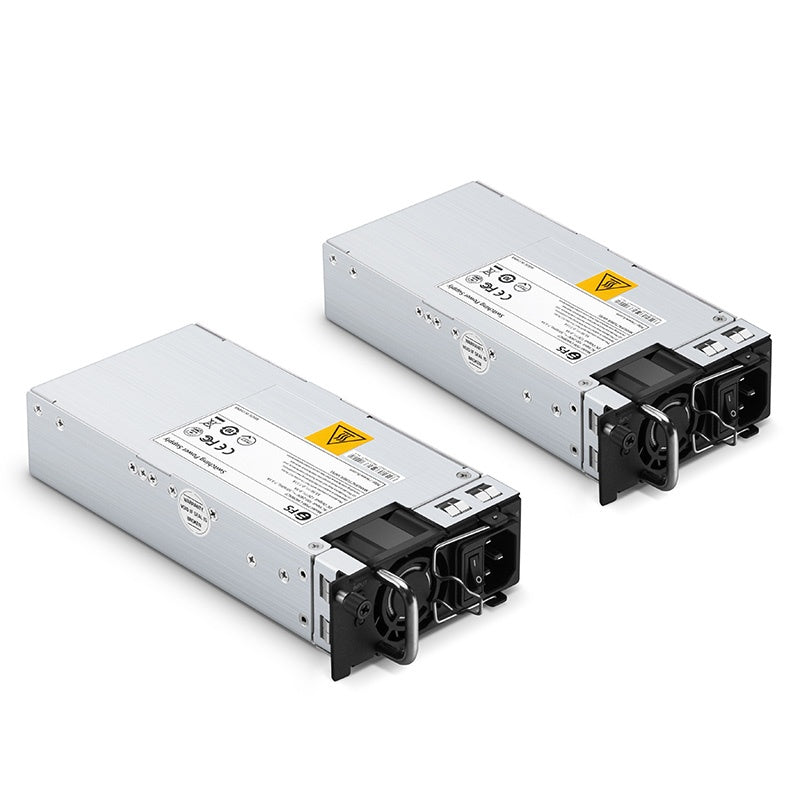

Dual Redundant Power Supplies and Smart Fans
Ship with dual power supplies by default, variable-speed fans with left-to-right airflow, provide high availability and longevity.
Manage up to 4 Switches with a Single IP Address
Virtual stacking of up to 4 units for a total of 192 1GbE ports, and interconnected switches can be managed as a single device, reducing the overall number of units to monitor and manage.
ERPS (Ethernet Ring Protection Switching) Enables Failover Protection in Sub-50ms
ERPS implements loop blocking and link recovery faster than STP on the main device, and can effectively add redundancy and up-time protection to any network.
QoS (Quality of Service) for Better Traffic Control
Provides different priorities to different applications, users, or data flows to reduce packet loss, latency, and jitter on a network.
SSH (Secure Shell) Protocol Provides Secure Remote Access
SSH uses the key login function to encrypt and verify network data, provide secure remote access connections, and can effectively guarantee the normal development of users' network services.
Cloud-based Network
Configuration and debugging online optimized remotely with Airware and Airbox network.
