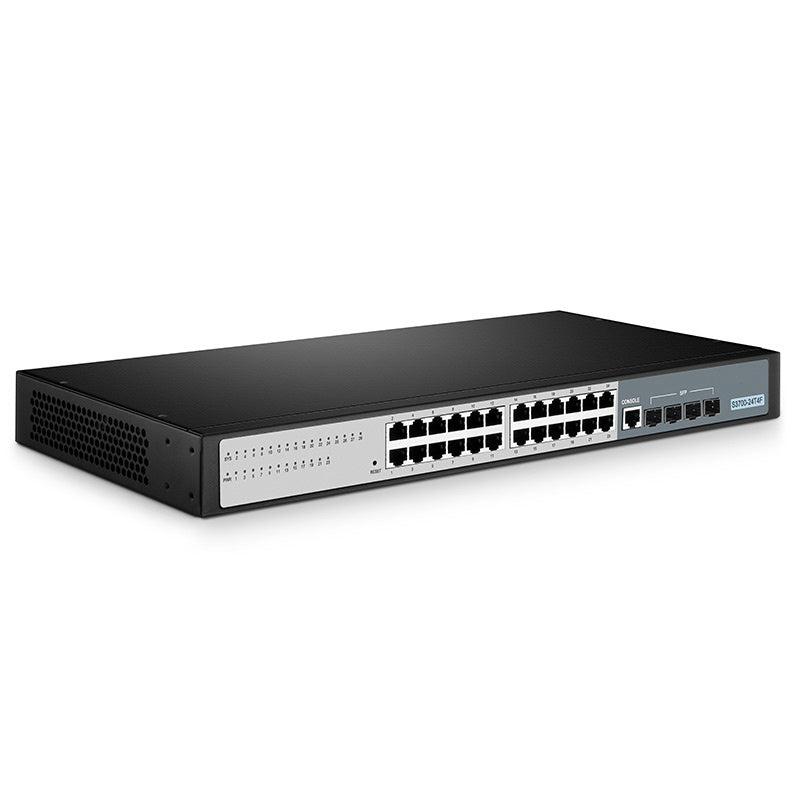

FS-S3700-24T4F, 24-Port Gigabit Ethernet L2+ Switch, 24 x Gigabit RJ45, with 4 x 1Gb SFP, Fanless

FS-S3700-24T4F is an enterprise-class access switch of robust hardware with 24x 10/100/1000BASE-T RJ45 ports and 4x 100/1000M uplink ports in a compact 1U form factor, ideal for Gigabit Ethernet and compatible with Fast Ethernet.

FS-S3700-24T4F offers advanced functions such as ACL, QinQ, QoS functions and L2+ static routing, delivering enhanced access security, traffic prioritization, and IPv6 support.

Optimized for simple, flexible and secure access, and equipped with flexible management choices such as user-friendly Web GUI, CLI and SNMP, the FS-S3700-24T4F provides a cost-effective access solution for IoT, mobile, and cloud-supported networks, ideal for enterprise campus, branch office, and SMB deployments.

Product Highlights

• Gigabit Ethernet Ports and Realtek Chip for Enterprise-class Connectivity

• Fanless Design for Flexible Deployment and Longer Lifespan

• Support QoS, QinQ, STP, RSTP, MSTP, LACP, RIP etc.

• Support WEB/CLI/SNMP/SSH for Flexible Operation

• Support SSH, ACL, IEEE 802.1X, RADIUS, TACACS+, etc. for Security

• Support Static Routing and OSPF for More Efficient Use of Network Resources

• Support IPv6 for Future Network Expansion

Specifications

• Ports: 24x 10/100/1000BASE-T RJ45 | 4x 1G SFP

• Switching Capacity: 56 Gbps

• Switch Chip: Realtek RTL8382M

• Forwarding Rate: 42 Mpps

• Power Supplies: 1Built-in, AC

• Packet Buffer: 0.5MB

• Fans: Fanless

• Jumbo Frame: 9K

• Dimensions (HxWxD): 1.73''x17.32''x8.27'' (44x440x210mm)

• MTBF: >50,000 hours

• Weight: 4.41 lbs (2kg)

• MAC Address: 8K

• Input Voltage: 100-240VAC, 50-60Hz

• IPv4/IPv6 Routes: 128/64

• Input Current: 0.75A

• Number of VLANs: 4K

• Max. Power Consumption: 15W

• RAM: 128MB

• Operating Temperature: 0 to 50ºC (32 to 122°F)

• Flash Memory: 16MB (NOR)

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Software Spotlights

Resiliency and High Availability

• IEEE 802.3ad Link Aggregation (LACP)
• Graceful protocol restart (OSPF)
• BFD mechanism
• Ethernet Ring Protection Switching (ERPS)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

Security

• Defend against DDoS attack, SYN Flood attack of TCP or UDP Flood attack
• IEEE 802.1x authentication
• RADIUS and Tacacs+ authentication
• Port isolation, port security, IP+MAC+port binding

Management

• Web-based management, Telnet
• SNMP v1/v2/v3
• Remote monitoring (RMON)
• LLDP (802.1ab)
