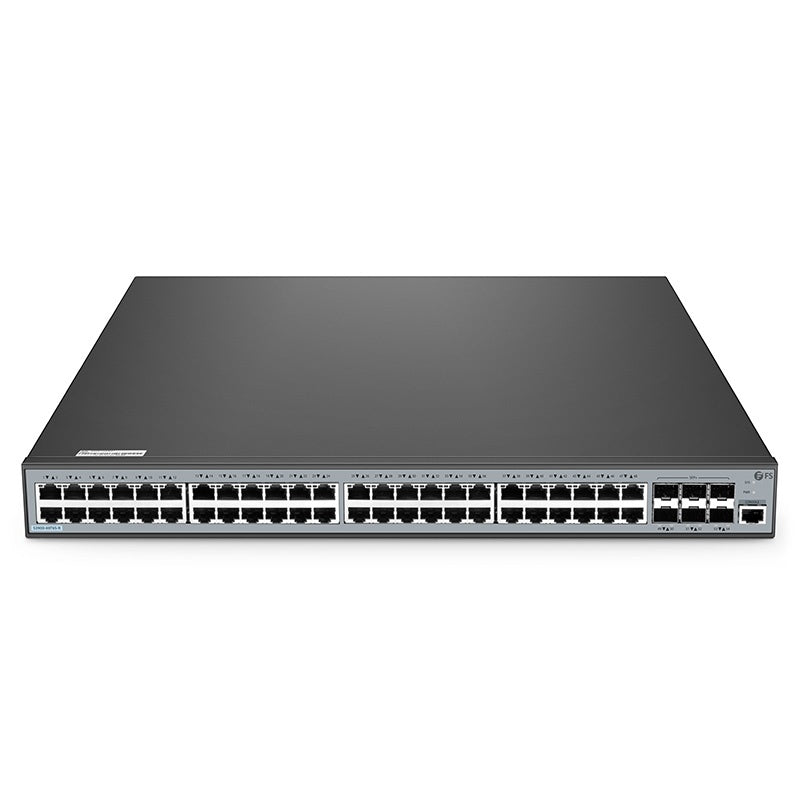

FS-S3900-48T6S-R, 48-Port Gigabit Ethernet L2+ Switch, 48 x Gigabit RJ45, with 6 x 10Gb SFP+ Uplinks, Stackable Switch

48-Port Gigabit Ethernet L2+ Switch, 48x Gigabit RJ45, with 6x 10Gb SFP+ Uplinks, Stackable Switch

S3900-48T6S-R is an advanced Layer 2 Plus (Layer 3 Lite) Gigabit managed stackable switch with 48x 10/100/1000BASE-T and 6x 10Gb SFP+ uplinks, dual redundant power supplies, and dual fans design ensures that the power supply of the switch will not be interrupted even if it fails, providing improved ease of use, highly secure business operations, improved sustainability, and a borderless network experience.

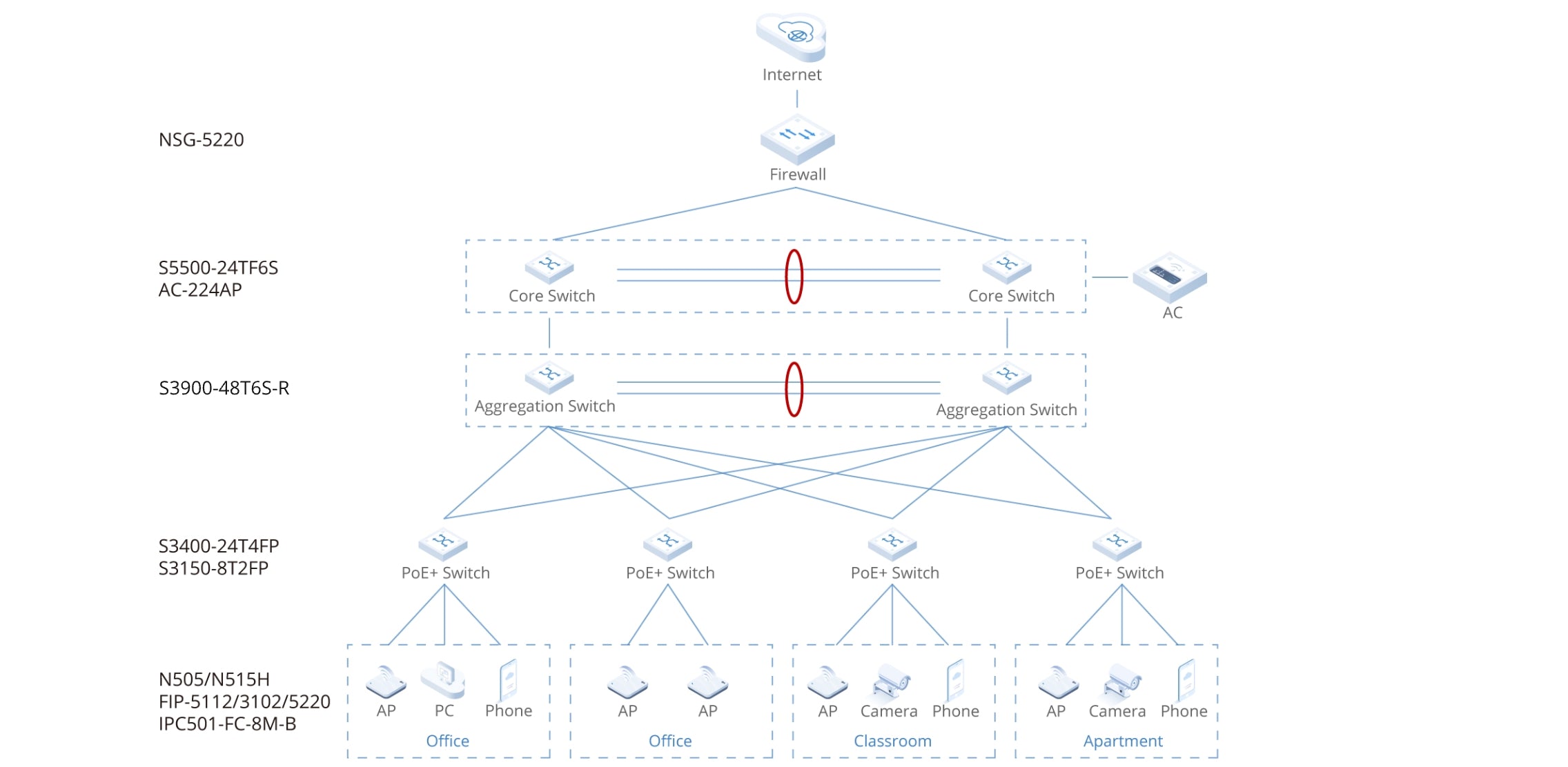

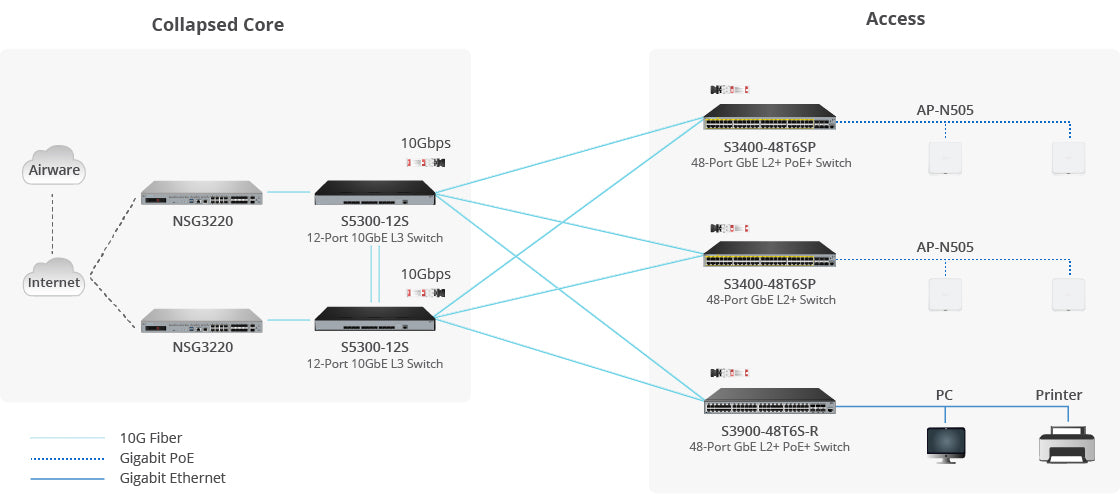

The S3900 series switches support stacking capability with 1 and 10 Gigabit connectivity and advanced QoS to the network edge while supporting simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. The S3900 series are ideal Gigabit access and aggregation switches designed for SMB, enterprise, midmarket, and branch office networks to provide lower total cost of ownership.

Specifications

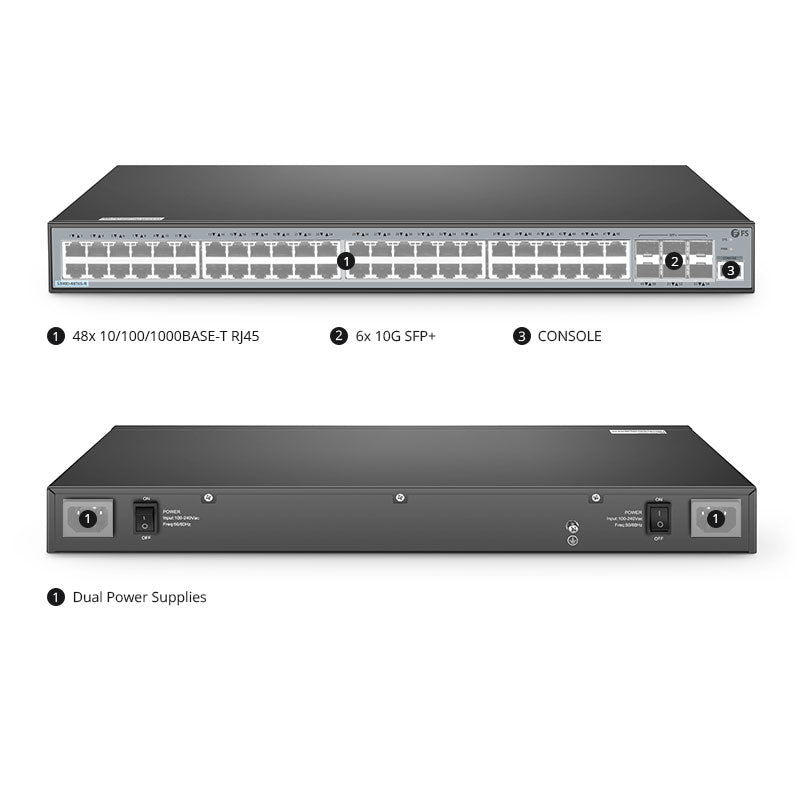

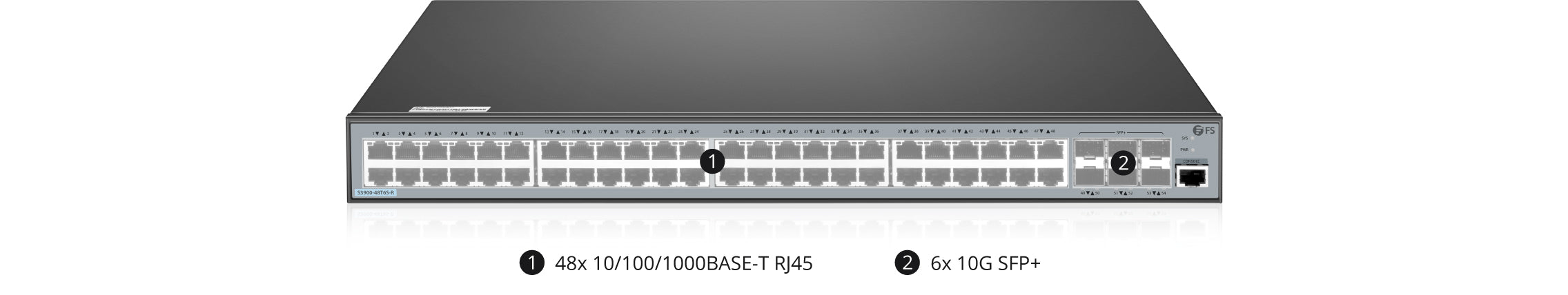

Ports: 48x 10/100/1000BASE-T RJ45 | 6x 10G SFP+
Switching Capacity: 216 Gbps

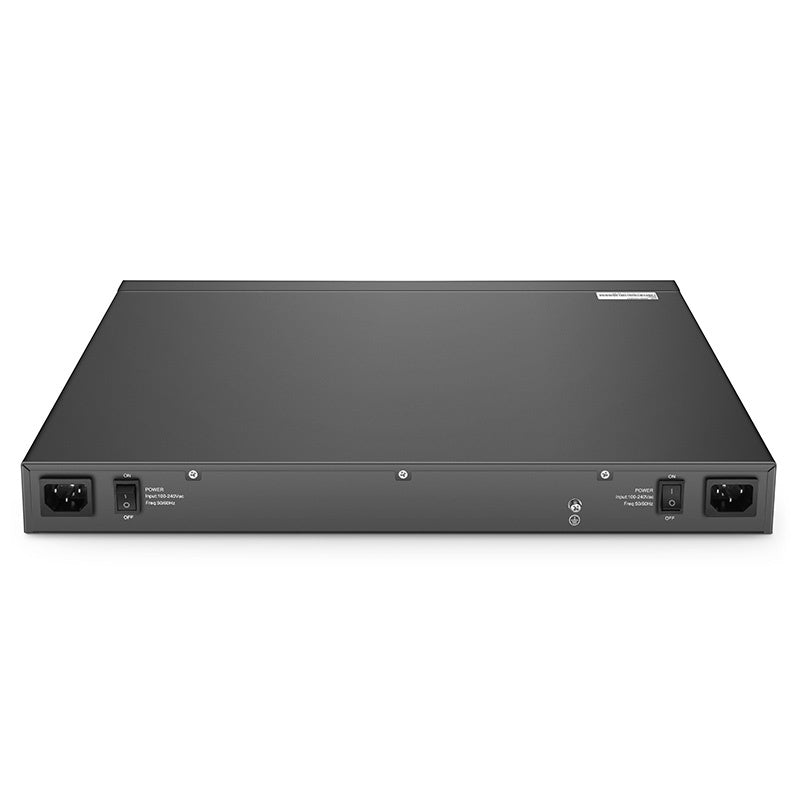

Power Supplies: 2 (1+1 Redundancy) Built-in, AC
Forwarding Rate: 162 Mpps
Fans: 2 Built-in, Left-to-Right
Packet Buffer: 2MB
Dimensions (HxWxD): 1.73''x17.32''x11.02'' (44x440x280mm)
Jumbo Frame: 9,000
Weight: 10.8 lbs (4.9kg)
MAC Address: 32K
Input Voltage: 100-240VAC, 50-60Hz
IPv4/IPv6 Routes: 502/152
Input Current: 0.8A Max
Number of VLANs: 4K
Max. Power Consumption: 51W
RAM: 512MB
Operating Temperature: 0 to 50ºC (32 to 122°F)
Flash Memory: 16MB

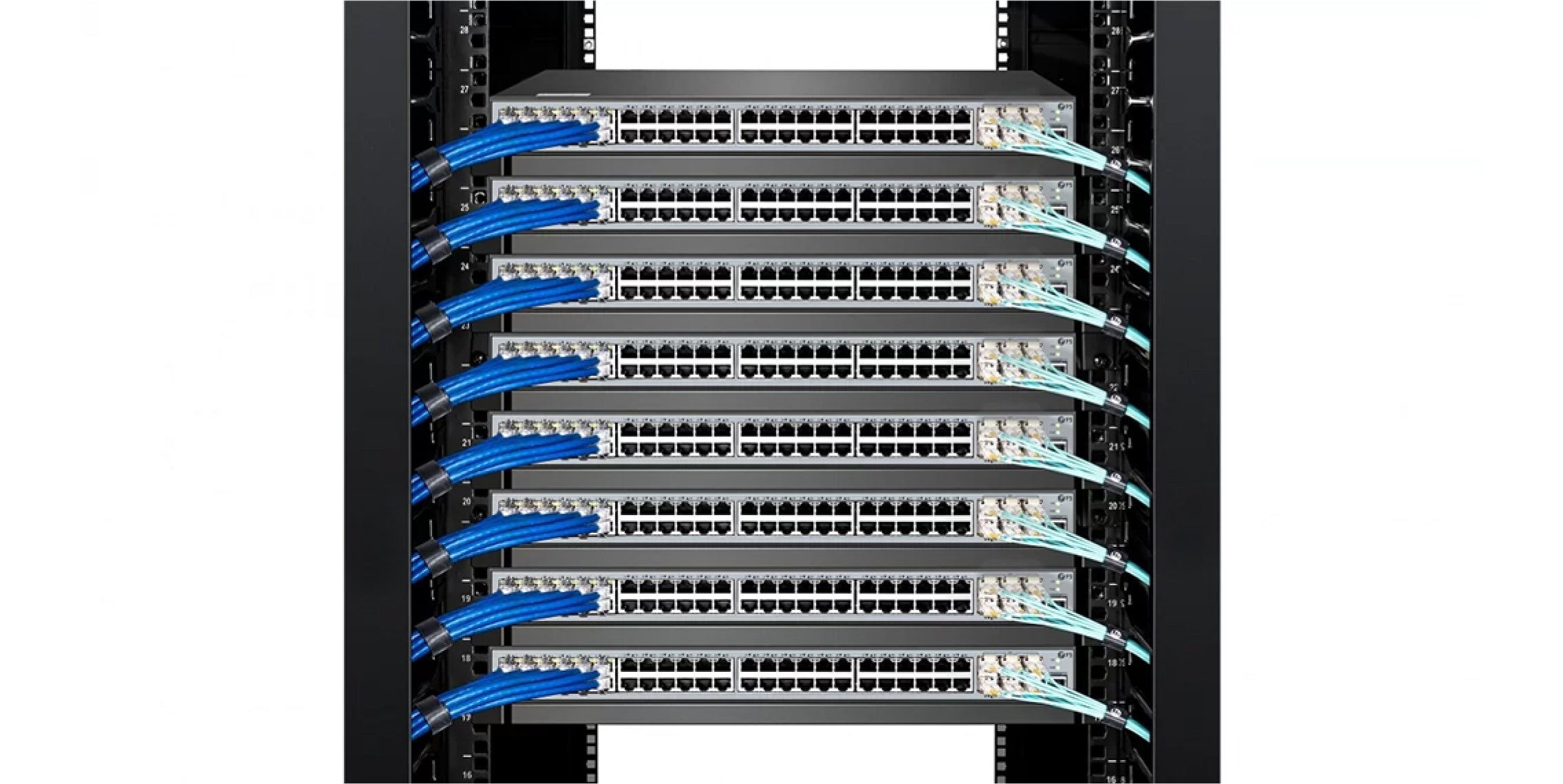

• Stack Up to 8 Units on 10G Uplinks Ports with Up to 480G Bandwidth

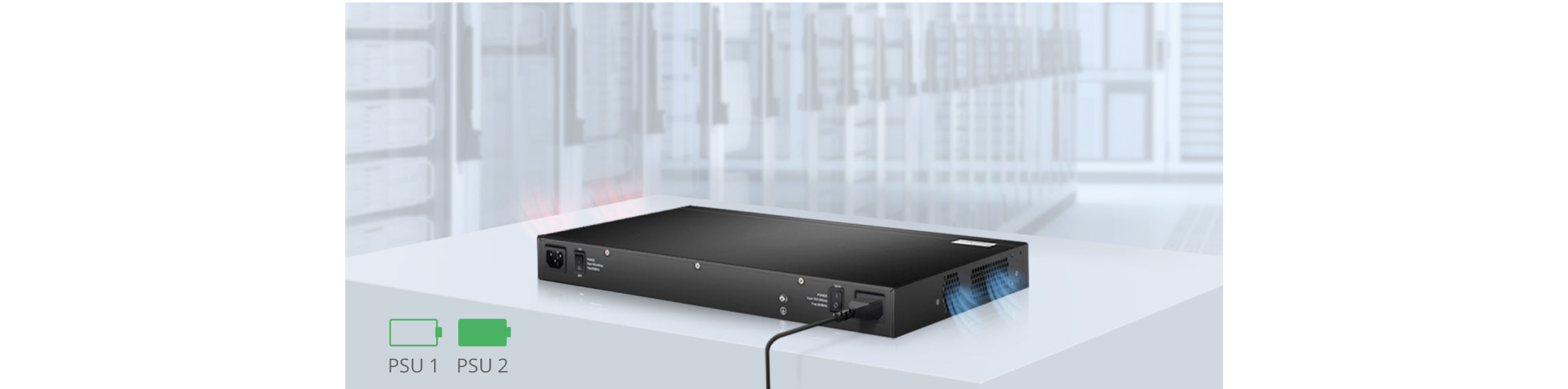

• 1+1 Redundant Power Supplies and Dual Fans

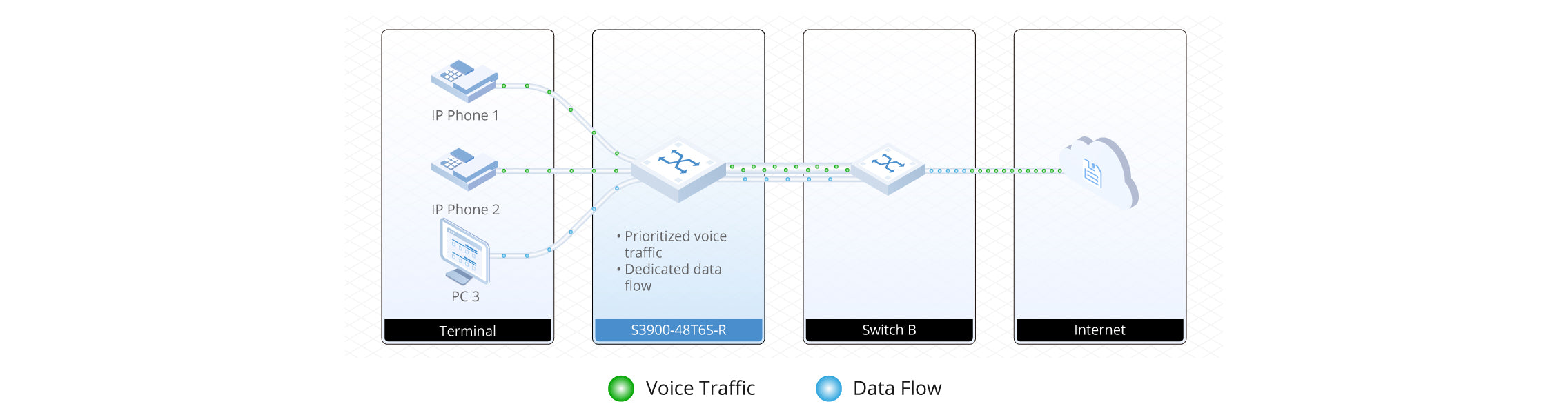

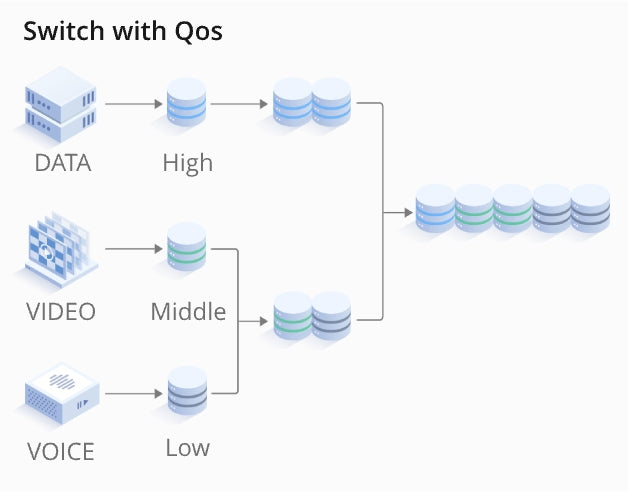

• Support LACP, Voice VLAN, QoS, DHCP Snooping, etc.

• Support SSH, ACL, 802.1X, RADIUS, TACACS+, etc. for Security

• Support CLI/WEB/SNMP/SSH for Flexible Operation

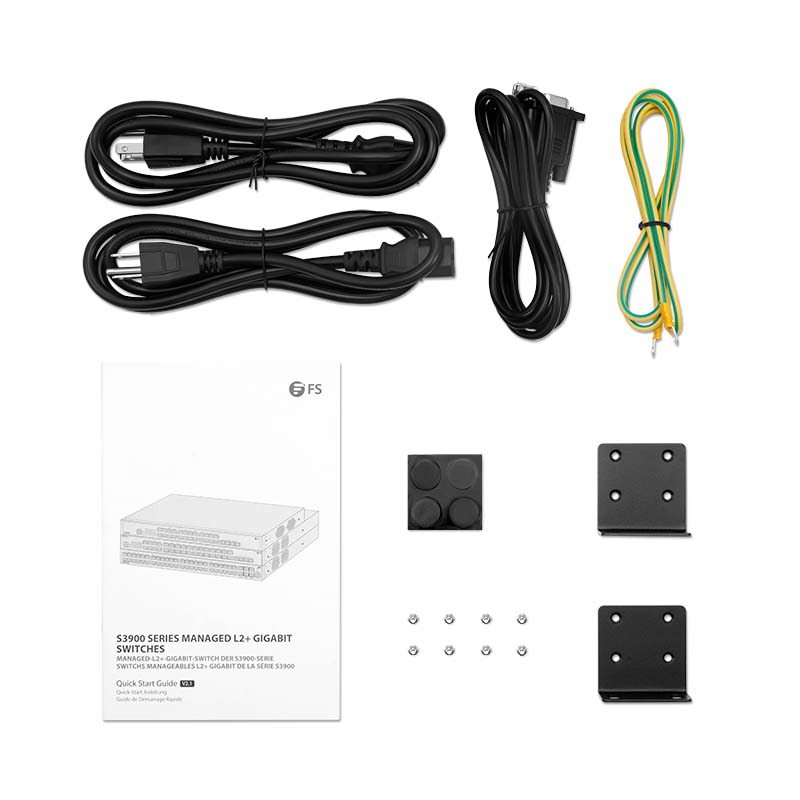

Please Note: Matching the American standard power cord as default.  If you need other standard power cords, please note in the order or contact your account manager.

Software Spotlights

Resiliency and High Availability

• Redundant, hot-swappable power supplies
• Up to 8 units stacking

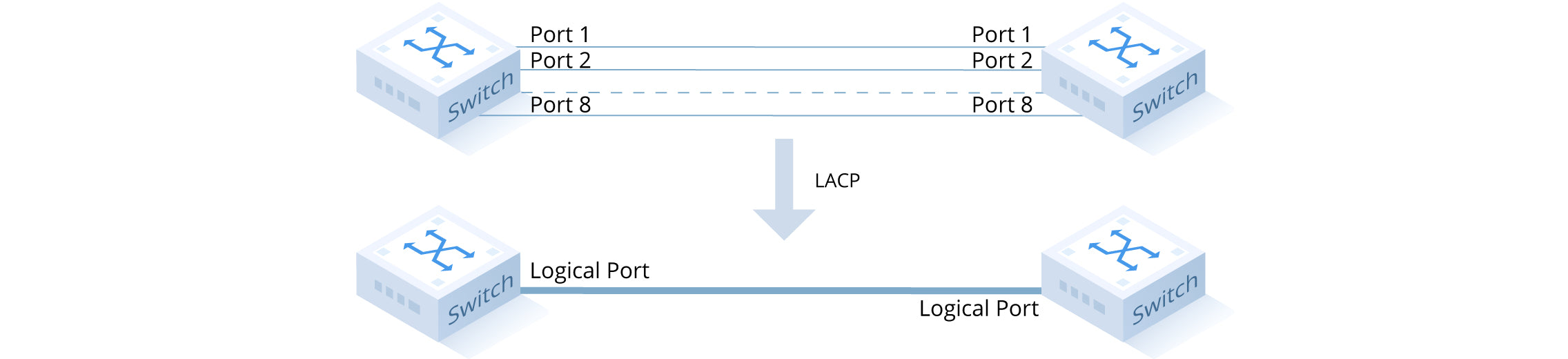

• IEEE 802.3ad Link Aggregation (LACP)
• Graceful protocol restart (OSPF)
• Virtual router redundancy protocol (VRRP)
• Rapid link detection protocol (RLDP)
• Rapid Ethernet uplink protection protocol (REUP)
• Bidirectional forwarding detection (BFD)
• Ethernet Ring Protection Switching (ERPS)
• The spanning tree protocols (STPs)

Security

• Local/Radius Authentication
• Port-based Authentication
• Mac-based Authentication HTTPS and SSL (v3)
• DHCP snooping
• IP Source guard
• DoS Protection

Management

• SNMP V1/V2/V3, HTTP, log
• Remote monitoring (RMON)
• Syslog, Web-based management, Telnet, SSH
• Command-Line Interface (CLI)
• LLDP (802.1ab)
