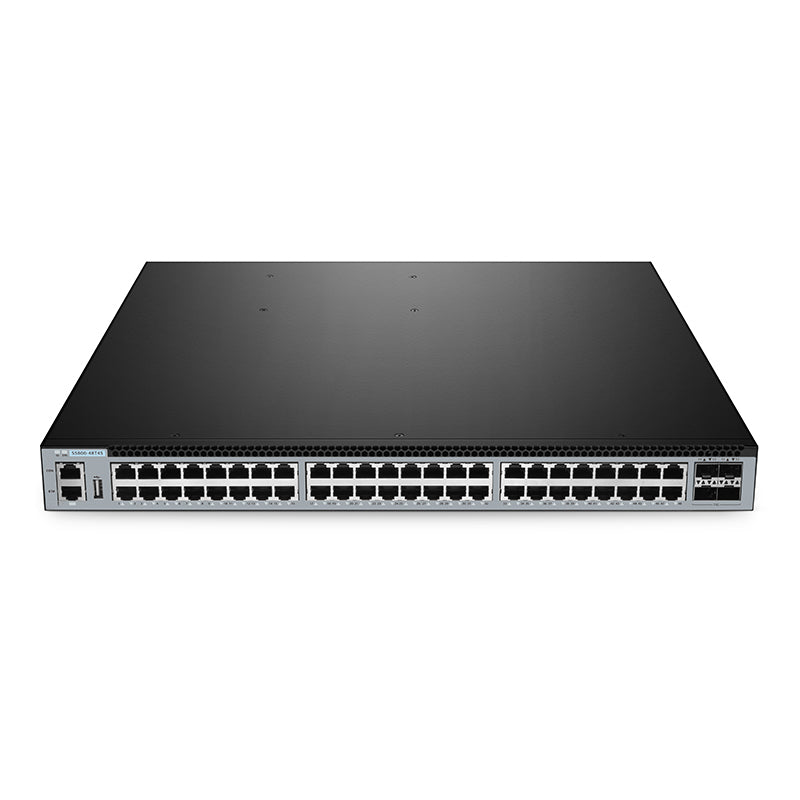

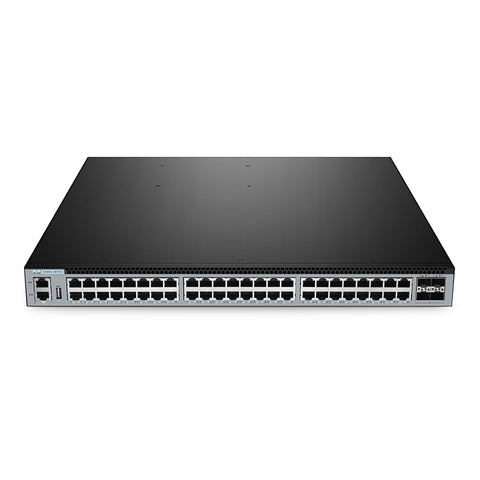

FS-S5800-48T4S 48-Port Gigabit Ethernet L3 Switch, 48 x Gigabit RJ45, with 4 x 10Gb SFP+, Support MLAG

FS-S5800-48T4S is a high-performance Layer 3 Ethernet switch with 48x 10/100/1000BASE-T RJ45 access ports and 4x 10Gb uplink ports in a compact 1U form factor, the powerful switch delivers non-blocking forwarding of 176Gbps combined with feature rich L2 and L3 switching.

The S5800 Series switches provide uncompromising simplicity, ensuring security, constant availability, and streamlined IT management.

It supports simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI, and it is ideal for enterprise branch, remote office, and enterprise campus networks.

Product Highlights

• Support MLAG to Enhance Reliability and Uninterrupted Services

• 1+1 AC Hot-swappable Power Supplies and 2+1 Smart Fans for Hardware Redundancy

• Support MPLS & VXLAN-BGP-EVPN, OSPF, VRRP, DHCP Relay, etc.

• Support 802.1X, RADIUS, TACACS+, AAA, ACL, and QoS for Security

• Support WEB/CLI/SNMP/SSH/RPC-API for Flexible Operation

Specifications

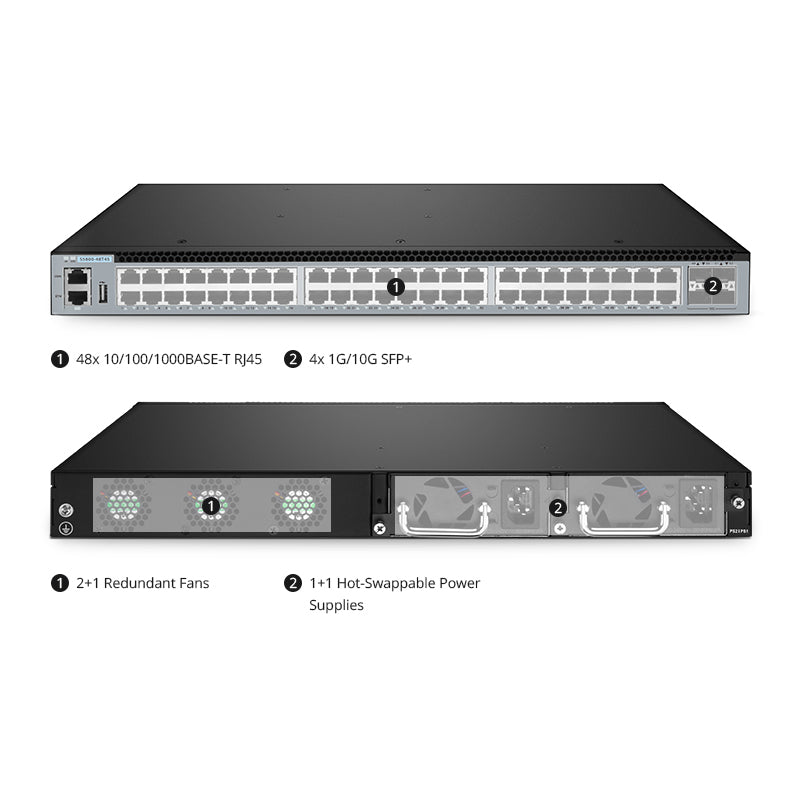

• Ports: 48x 10/100/1000BASE-T RJ45 | 4x 1G/10G SFP+

• Switching Capacity: 176 Gbps

• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC

• Forwarding Rate: 132 Mpps

• Fans: 3 (2+1 Redundancy) Built-in, Front-to-Back

• Packet Buffer: 9MB

• Dimensions (HxWxD): 1.73''x17.5''x14.6'' (43.6x440x370mm)

• Jumbo Frame: 9,600

• Weight: 13.44 lbs (6.1kg)

• MAC Address: 98K

• Input Voltage: 100-240VAC, 50-60Hz

• IPv4/IPv6 Routes: 56K/4K

• Input Current: 2A

• Number of VLANs: 4K

• Max. Power Consumption: 55W

• DRAM: 2GB

• Operating Temperature: 0 to 50ºC (32 to 122°F)

• Flash Memory: 8GB (eMMC)
• Ports: 48x 10/100/1000BASE-T 4x 10G SFP+
• Switching Capacity: 176 Gbps
• Forwarding Rate: 132 Mpps
• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC
• Fans: 3 (2+1 Redundancy) Built-in, Front-to-Back
• Max. Power Consumption: 55W
• MLAG: YES
• 802.1X: YES

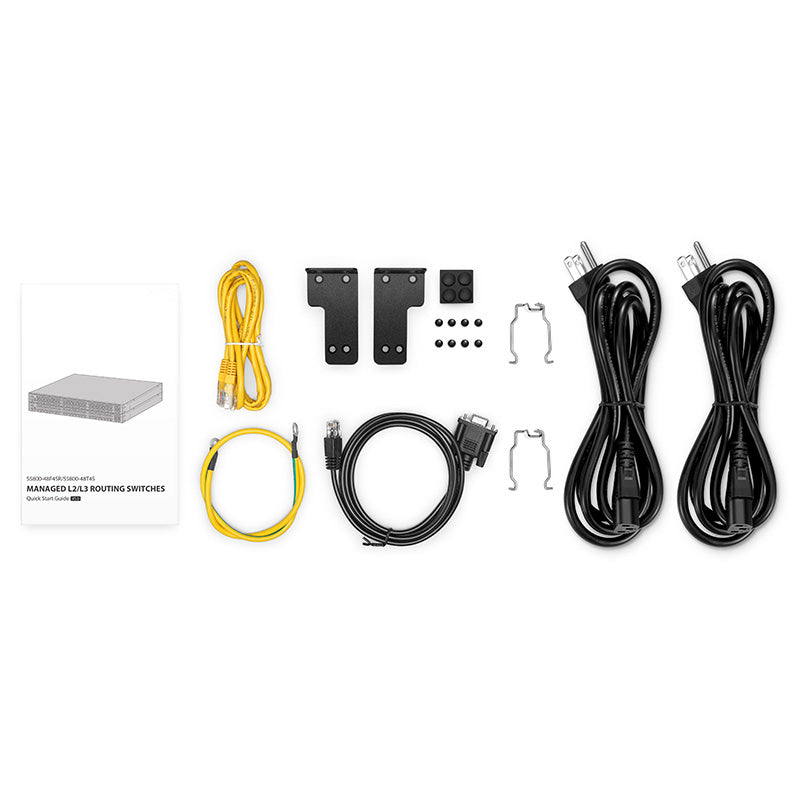

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Software Spotlights

Resiliency and High Availability

• Redundant, hot-swappable power supplies and fans
• Multi-Chassis Link Aggregation (MLAG)
• IEEE 802.3ad Link Aggregation (LACP)
• Virtual Router Redundancy Protocol (VRRP)
• Support BFD for fast link failure detection
• Graceful protocol restart (OSPF, BGP)
• Ethernet Ring Protection Switching (ERPS)

Security

• IPv4/IPv6 ACL and MAC whitelisting
• IP Source Guard (IPSG)
• ARP inspection
• IEEE802.1X RADIUS authentication, TACAS+
• Control Plane Policing (CoPP)
• DHCP Server Relay/Snooping

Management

• CLI-based, using console ports
• WEB UI, Telnet, SSH
• SNMP (Managed by Zabbix) v1, v2, and v3
• Traffic monitoring

Connectivity Solutions

Features

Upgrade Your Network to High Bandwidth and Scalability
Both the aggregation layer and access layer are designed with dual links, which can eliminate bottlenecks and achieve high-speed networks and get reliable performance.

Gigabit Access Switch with 10G Uplinks
Gigabit ports for access switch or servers, 10G ports for aggregation switches.

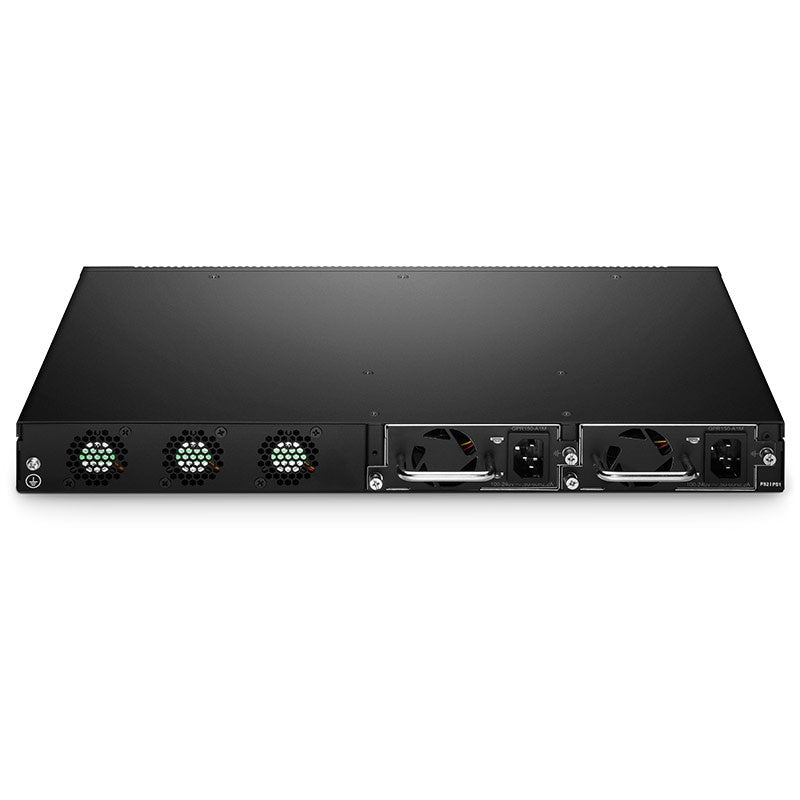

1+1 Hot-Swappable Power Supplies and 2+1 Redundant Fans
The dual power supplies can be replaced without shutting down the system, and the variable-speed fans with front-to-back airflow automatically adjust fan speed to reduce power draw.

MLAG Realizes Uninterrupted Services
MLAG delivers device-level link redundancy and load balancing by aggregating links across two switches, enhancing network performance, reliability, and service continuity.

MPLS Helps Establish Point-to-point Connections
MPLS enables small and medium-sized operators to create tunnels for their users, which helps build point-to-point connections and achieves intercommunication between user networks. (Requires an advanced license LIC-FIX-MA)

VXLAN-BGP-EVPN Achieves Arbitrary Migration of Virtual Machines
VXLAN-BGP-EVPN automatically discovers and establishes tunnels, enabling unrestricted and seamless migration of data center virtual machines with no user perception. (Requires an advanced license LIC-FIX-MA)

Comprehensive Security Policies Protect from Network Threats
With network-level security and stability capabilities like SSH, ACL, AAA, etc., it defends against network threats for enterprises, campuses, and the financial industry.

Flexible Management Options
Innovative design supports CLI and easy-to-use Web GUI eliminating rip and replace of equipment as network management needs grow.
