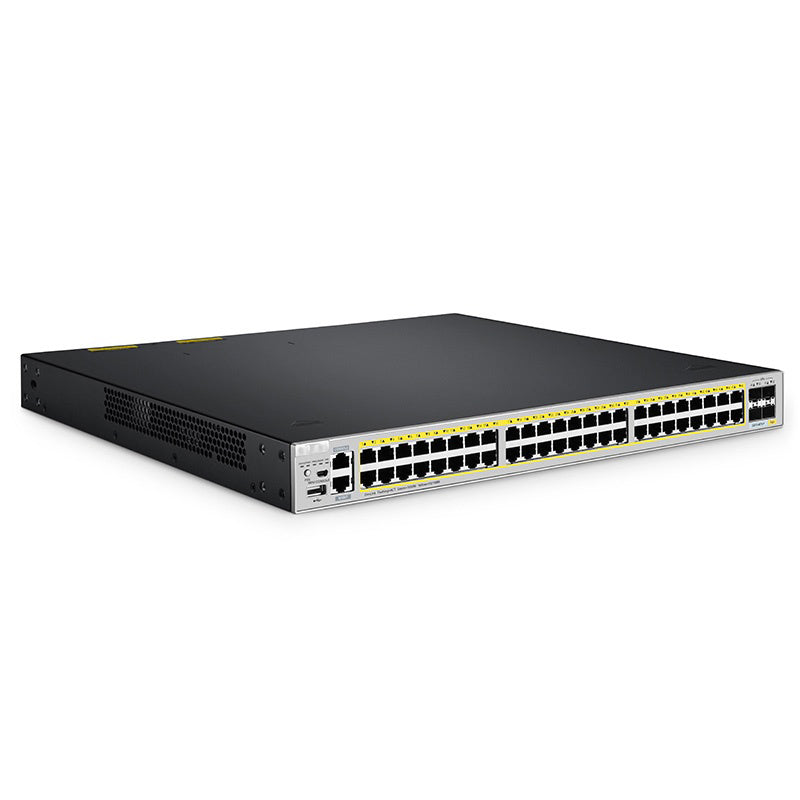

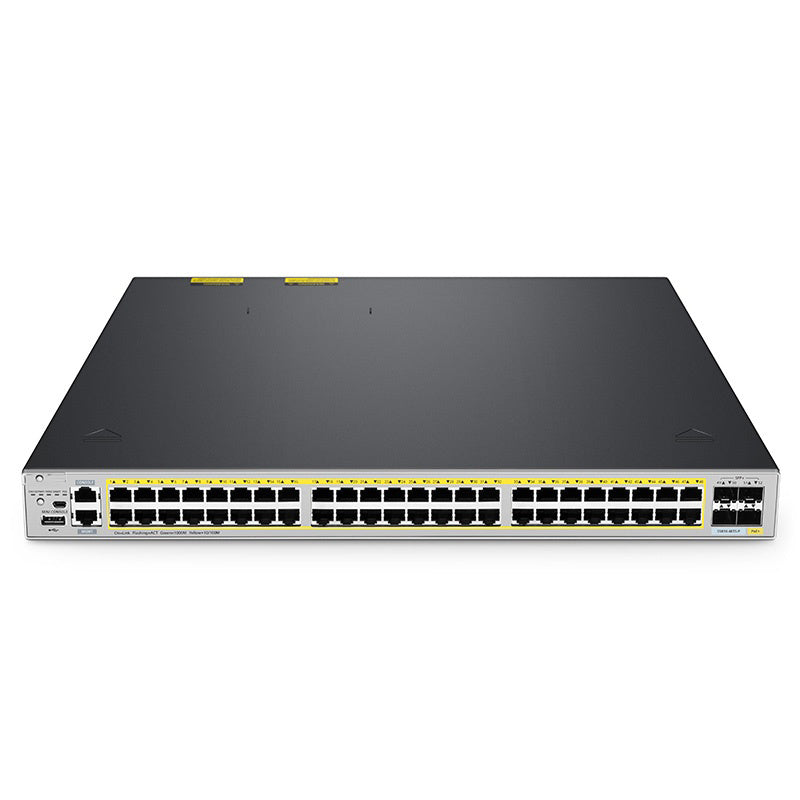

FS-S5810-48TS-P S5810-48TS-P, 48-Port Gigabit Ethernet L3 PoE+ Switch, 48 x PoE+ Ports @740W, with 4 x 10Gb SFP+ Uplinks, Support Stacking, Broadcom Chip

The S5810-48TS-P features 48x 10/100/1000Mbps PoE ports and 4x 1G/10G uplink ports. It provides a max power budget of 740W for all PoE ports and up to 30W for every single PoE port respectively.

All uplinks allow any combination of up to 8 units of S5810 series switches to be seamlessly interconnected and managed as a single device. It adopts cutting-edge Broadcom chips to deliver 176 Gbps switching capacity and 132 Mpps forwarding rate. It is packed with redundant hot-swappable power supplies and variable-speed axial fans for superior processing performance.

It supports local management via CLI and web UI, while also streamlining campus network deployment and management through Airware cloud. Boast advanced features, such as enhanced Layer 3 functionality, IPv6 capabilities, and diverse multicast protocols, S5810 series switches are ideal for acting as an aggregation of large campus networks and core of small to medium-sized enterprise networks.

Specifications

• Ports: 48x 100/1000BASE-T RJ45 | 4x 1G/10G SFP+

• Switch Chip: BCM56340

• Switching Capacity: 176 Gbps

• SDRAM: 1GB

• Forwarding Rate: 132 Mpps

• Jumbo Frame: 9216

• Flash Memory: 512MB

• MAC Address: 64K

• Power Budget (Dual-power): 740W

• Input Voltage: 100-240VAC, 50-60Hz, 3.5A Max

• Packet Buffer: 4MB

• Power Output: 500W

• Dimensions (HxWxD): 1.73''x17.32''x16.54'' (44x440x420mm)

• Max. Power Consumption: 70W (880W with PoE)

• Power Supply: 2 (1+1 Redundancy) Hot-swappable

• PoE Standard: IEEE 802.3af/at

• Fan Number: 3 (2+1 Redundancy) Built-in

• Operating Temperature: 0 to 50ºC (32 to 122°F)

• Airflow: Left-to-Right

• Storage Temperature: -40 to 70ºC (-40 to 158°F)
• RJ45 Ports: 48x 1000BASE-T
• SFP+ Ports: 4x 10G SFP+
• Management Layer: L3

• Hardware Stacking: Up to 8 Units
• 1+1 Hot-swappable Power Supplies: YES
• QoS, IGMP Snooping, Link Aggregation, IPv6, L3 Static Routing, RIP, OSPF: YES
• Advanced Routing Protocol (BGP/ISIS): YES
• Advanced Security: YES


Product Highlights

• Up to 48 PoE+ Ports, 30W Per Port & Total Budget 740W

• Broadcom BCM56340 Chip, Support 8 Units Stacking

• 1+1 Hot-swappable Power Supplies and 2+1 Smart Fans

• Support MPLS, IGMP Snooping, L2 Multicast Functions

• Support Airware Cloud/WEB/CLI/SNMP for Flexible Operation

Software Spotlights

High Availability and Multi-Service Support

• Support Stacking
• Support Virtual Router Redundancy Protocol (VRRP)
• IPv4/IPv6 Dual Protocol Stack
• Unicast Routing
• Support 802.1p, IP ToS, traffic filtering, SP, WRR
• Support Ethernet Ring Protection Switching (ERPS)(G.8032)

Error-Free Network Configuration

• Support MPLS, DHCP Server, L2 Multicast Functions
• Advanced Network Monitoring Using SFlow
• IPv4/IPv6/MAC/ARP ACL
• Support IGMP snooping, IGMP, MLD, PIM, MSDP
• Support SNMP (Managed by Zabbix), RMON, log and configuration backup
• Support Syslog, Web-based management, Telnet, etc

Secure and Simplified Access for Users and IoT

• Support hardware-based IPv6 ACLs
• Support hardware CPU protection mechanism
• Support DHCP snooping
• Support the IP-based Telnet access control
• Support the Secure Shell (SSH) and SNMPv3
• Support Network Foundation Protection Policy (NFPP)

Connectivity Solutions

Features

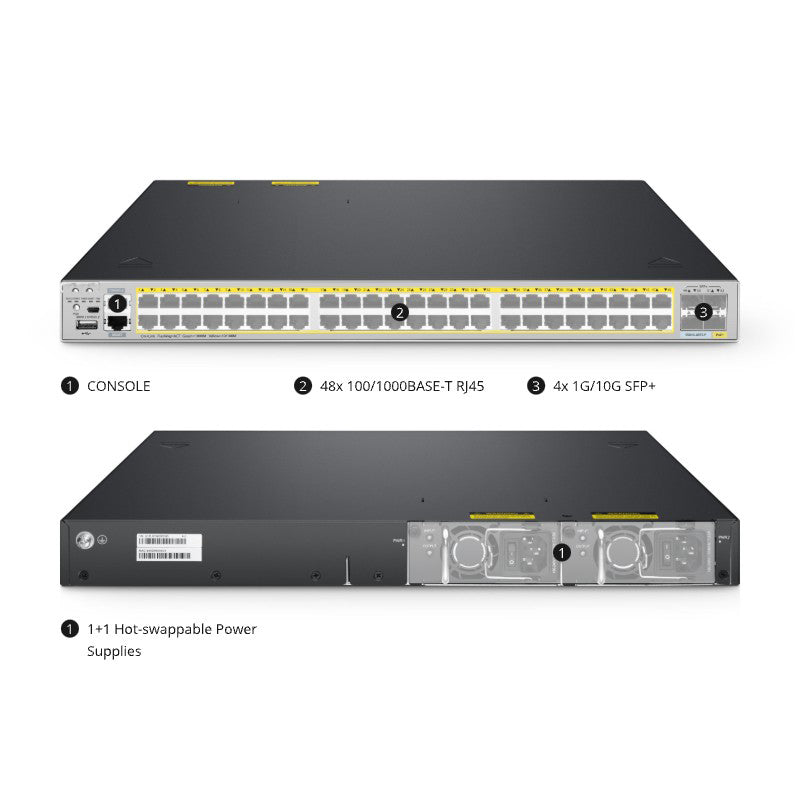

Gigabit Port Configuration

48x 10/100/1000Mbps PoE ports for different bandwidth devices, 4x 1G/10G uplink ports for future expansion.

Cloud Platform Enables Unified Management of Branch Networks
Airware unifies the management of network devices, suitable for industries that have branches, like hotel chains, retail chains, company branches, university branches, etc.

740W PoE+ Full Power Capability
Support IEEE 802.3af/at PoE standards, power to multiple PSE to simplify your network infrastructure and cabling.

Support 8 Units Stacking to Achieve High Bandwidth
10G ports can be stacked between S5810 series via transceivers or DAC/AOC cables to scale with ease, build resiliency, and streamline management.

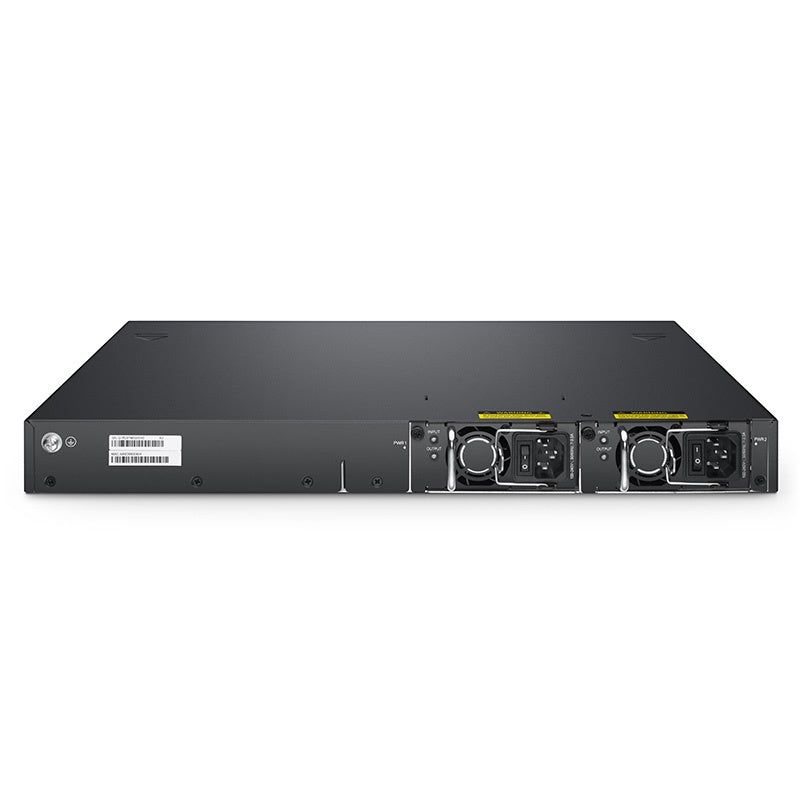

Dual Redundant Power Supplies and Smart Fans
Shipping with dual power supplies by default, variable-speed fans with left-to-right airflow, provide high availability and reliability.

MPLS Helps Establish Point-to-point Connections
MPLS enables small and medium-sized operators to create tunnels for their users, which helps build point-to-point connections and achieves intercommunication between user networks.

Support IPv4/IPv6 Dual-Stack to Run IPv4 and IPv6 in Parallel
Dual-stack allows the current hybrid environment encompassing both IPv4 and IPv6, as well as the future migration to IPv6.

Comprehensive Security Policy Protects from Network Threats
With network-level security and stability capabilities like SSH, ACL, AAA, etc., it defends against network threats for enterprises and campus.

Cloud-based Network
Allow you to configure and manage 24/7 from one central location to reduce costs and time.
