FS-S5850-48S2Q4C, 48-Port Ethernet L3 Switch, 48 x 10Gb SFP+ with 2 x 40Gb QSFP+ and 4 x 100Gb QSFP28, Support MPLS&MLAG

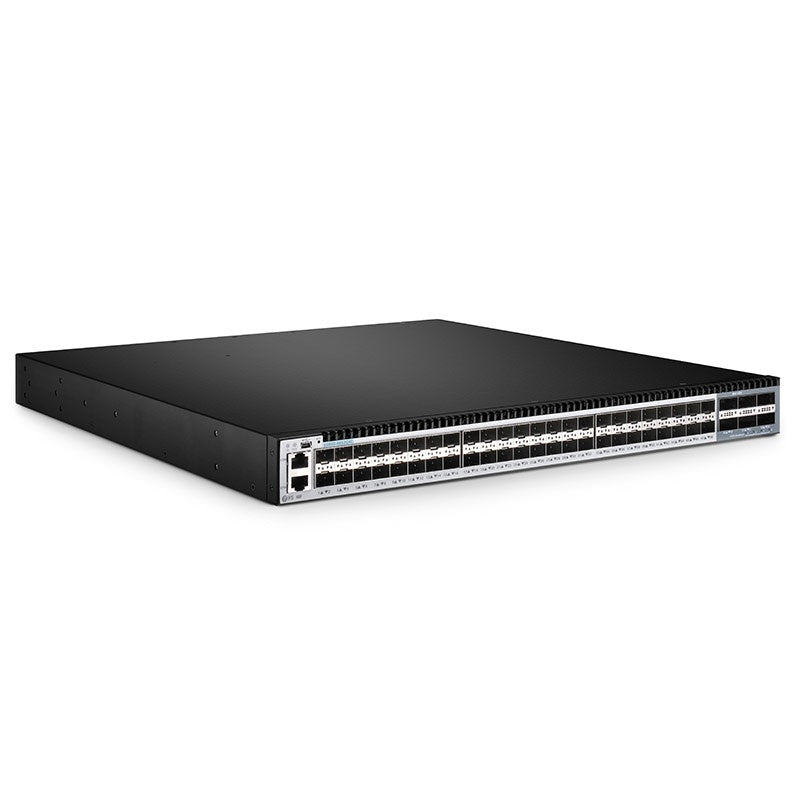

FS-S5850-48S2Q4C is a high-performance ToR/Leaf switch with 48x 10Gb SFP+, 2x 40Gb QSFP+ and 4x 100Gb QSFP28 in a compact 1U form factor.

The switch comes with the complete system software with comprehensive protocols and applications to facilitate the rapid service deployment and management for traditional Layer 2 and Layer 3 networks.

It is cost-effective Ethernet aggregation and core layer to data center application and is ideally designed for demanding workloads.

Supporting advanced features, including MLAG, IPv4/IPv6, SFLOW, SNMP etc., this switch meets next generation Metro and enterprise network requirements, and it is also ideal for traditional or fully virtualized data center.

Specifications

• Ports: 48x 1G/10G SFP+ | 2x 40G QSFP+, 4x 100G QSFP28

• Switching Capacity: 1.92 Tbps

• Power Supply: 2 (1+1 Redundancy) Hot-swappable

• Forwarding Rate: 1071.4 Mpps

• Fan Number: 4 (3+1 Redundancy) Hot-swappable

• Airflow: Front-to-Back

• MAC Address: 64K

• Number of VLANs: 4K

• Flash Memory: 2GB (NAND)

• RAM: 1GB

• Packet Buffer: 9MB

• Max./Min. Latency: 0.635μs/0.6μs

• Flow Control: Support

• DHCP Server: Support

• IPv4 Routes: 8,192

• IPv6 Routes: 1,536

• ARP Table: 4,096
• Jumbo Frame: 9,600

• MTBF: >90,000 Hours

• Max. Power Consumption: 200W
• Support MLAG+VARP, Smart-Link, VRRP, etc. for Networking Reliability

• 1+1 AC Hot-swappable Power Supplies, 3+1 Smart Fans

• Support MPLS, DHCP Server, L2 Multicast Functions

• Support PFC, ECN, Data Center TCP to Build a Lossless and Low-latency Network

• Support WEB/CLI/SNMP/SSH for Flexible Operation

• Support Latency Monitor, Buffer Monitor, IPFIX, EFD, etc. for Easier Analysis

• Support 802.1X, RADIUS, TACACS+, AAA, ACL, and QoS for Security
• SFP+ Ports: 48x 10G SFP+
• 25G/40G/100G Ports: 2x 40G QSFP+, 4x 100G QSFP28
• Management Layer: L3

• Stacking or MLAG: MLAG
• VLAN, QoS, IGMP Snooping, Link Aggregation: YES
• Static Routing, RIP, OSPF, IPv6 support: YES
• 1+1 Hot-swappable Power Supplies: YES

Please Note: Matching the American standard power cord as default. If you need other standard power cords, please note in the order.

Software Spotlights

Multi-Chassis Link Aggregation (MLAG)

• Connects to other switches and servers by LAG or LACP without other proprietary protocols
• The software supports up to 63 MLAG members
• Support mixed configuration MLAG with S3950, S5800, S5850 and S8050 series switches

Data Center Features

• Support PFC, ECN, Data Center TCP
• Support NVGRE, GENEVE
• Support DCBX, GRE Tunnel

Metro Advanced License

• Support advanced features of MPLS, LDP, MPLS-L2VPN, MPLS-L3VPN, VxLAN-BGP-EVPN, IPFIX
• LIC-FIX-MA license is required to enable the advanced features

IPv4/IPv6 Dual-Stack

• Support line-rate IPv4/IPv6 dual-stack
• Support RIP, OSPFv2, BGP, static routing, RIPng, OSPFv3 and BGP4+

High Reliability

• Support 64-way ECMP routing for load balancing and redundancy
• Support LACP, VRRP, VARP, Smart Link, BFD, ERPS, G.8031, G.8032, Load-Balancing, etc
• Support the Spanning Tree Protocols (IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP)
• Support STP Protocol Protection (BPDU Guard, Root Guard, Loop Guard, Anti TC-BPDU attack)
• Support modular power redundancy
• Support modular fan redundancy

Sound Security Protection Policies

• Support IPv4/IPv6 ACL and MAC whitelisting
• Support ARP inspection
• Support IP source guard
• Support IEEE802.1X RADIUS authentication, TACAS+
• Support DHCP Server Relay/Snooping
• Support Control Plane Protect (CoPP) black & white list and rate limit features

QoS

• Support 13 hardware queues per-port (8 unicast queues, 4 multicast queues and 1 monitor queue)
• Support Weighted Random Early Detection (WRED)
• Support Tail Drop (TD)
• Support Strict Priority (SP) scheduling
• Support Weighted Deficit Round Robin (WDRR) scheduling
• Support SP + WDRR mixed scheduling
• Support traffic classification based on COS/DSCP (simple classification)

Easy Network Maintenance

• Support CLI-based, using console ports
• Support WEB UI, Telnet, SSH, using 10/100/1000Mbps management port or service ports
• Support SNMP (Managed by Zabbix) v1, v2, and v3
• Support RPC-API for Software Defined Network (SDN)

Supported Optics and Cables

• Support 1000BASE-T, 1000BASE-SX, LX/LH, EX, ZX, BX, DWDM and CWDM SFP transceivers
• Support 10GBASE-T, 10GBASE-SR, LR, LRM, ER, ZR, BX, DWDM and CWDM SFP+ transceivers
• Support 40GBASE-SR4, CSR4, LR4, PLR4, PIR4, ER4 transceivers
• Support 100GBASE-SR4, PIR4, IR4, LR4, EIR4 transceivers
• Support 10G SFP+ DAC and AOC cables
• Support 40G QSFP+ DAC and AOC cables
• Support 40G QSFP+ to 4x10G SFP+ DAC and AOC cables
• Support 100G QSFP+ DAC and AOC cables

Connectivity Solutions

Upgrade Your Network to High Bandwidth and Scalability
Both the aggregation layer and access layer are designed with dual links, which can eliminate bottlenecks and achieve high-speed networks and get reliable performance.

10G Core and Aggregation Switch with 40G Ports
10G ports for access switch or servers, 40G ports for core switches.

Spine-Leaf Architecture of MLAG
MLAG takes the benefits of link aggregation and spreads network bandwidth and reliability across a pair of enterprise switches to deliver system level redundancy as well as network level resiliency.

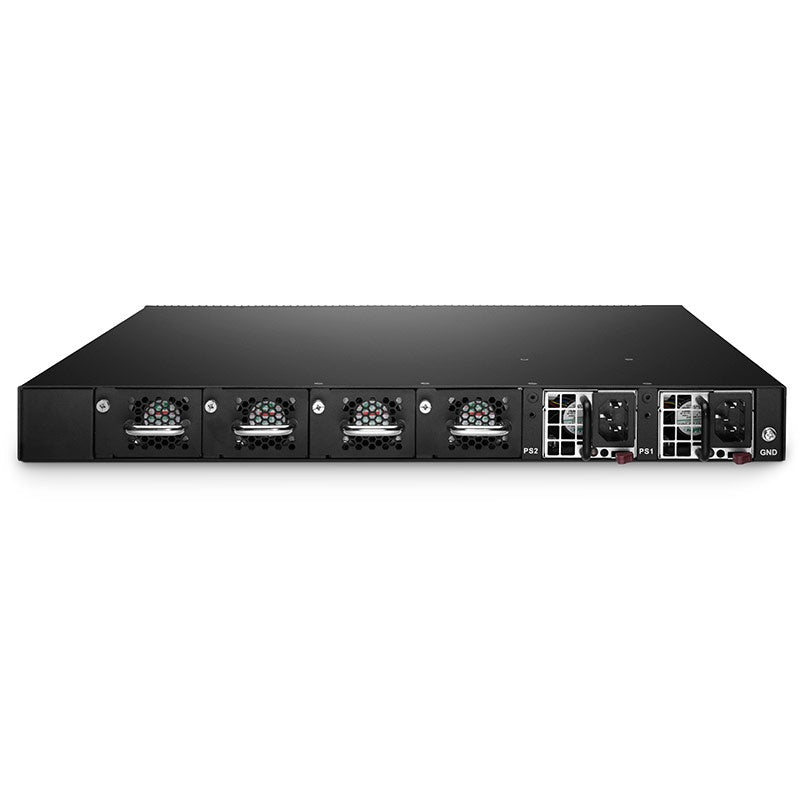

1+1 Hot-Swappable Power Supplies and 3+1 Redundant Fans
The dual power supplies can be replaced without shutting down the system, and the variable-speed fans with front-to-back airflow automatically adjust fan speed to reduce power draw.

MPLS Helps Establish Point-to-point Connections
MPLS enables small and medium-sized operators to create tunnels for their users, which helps build point-to-point connections and achieves intercommunication between user networks.

MLAG Realizes Uninterrupted Services
Using the same model of switches, providing a distributed and redundant architecture for uninterrupted service upgrades, and fault isolation for minimized impact.

Comprehensive Security Policy Protects from Network Threats
With network-level security and stability capabilities like SSH, ACL, AAA, etc., it defends against network threats for enterprises, campus and financial industry.

Flexible Management Options
Innovative design supports CLI and easy-to-use Web GUI eliminating rip and replace of equipment as network management needs grow
