FS-S5850C-24XMG2C, 24-Port Gigabit Ethernet L3 Half-width Switch, 24 x 10GBase-T/Multi-Gigabit, with 2 x 100Gb QSFP28 Uplinks, AV over IP, Support MLAG

The FS-S5850C-24XMG2C switch is a high-performance Layer 3 managed switch designed for audio/video over IP, equipped with 24x 100M/1G/2.5G/5G/10GBASE-T ports and 2x 100Gb QSFP28 uplink ports in a compact half-width form factor.

This powerful switch offers 880 Gbps switching capacity and a 654.72 Mbps forwarding rate. It features 1 hot-swappable power supply, supports two-node power redundancy, and includes intelligent fan speed control with a quiet design, ensuring an energy-efficient and eco-friendly network.

The switch provides comprehensive L2/L3 features and supports easy management through a user-friendly Web GUI. It also supports essential protocols like IGMP Snooping & Querier, Multicast, QoS, VLAN and PTP TC, making it ideal for audio/video applications.

Specifications

• Ports: 24x 100M/1G/2.5G/5G/10GBASE-T RJ45 | 2x 100Gb QSFP28

• MAC Address: 98K

• Switching Capacity: 880 Gbps

• Latency: 2.5~7μs

• Forwarding Rate: 654.72 Mpps

• Number of VLANs: 4,094

• Packet Buffer: 4.5MB

• ARP Table: 12,288

• Flash Memory: 8GB

• Jumbo Frame: 9,600

• DRAM: 2GB

• MTBF: ≥90,000 Hours

• Power Supply: 1 Hot-swappable

• IPv6 Routes: 4K

• Fan Number: 2 Built-in

• IPv4 Routes: 56K

• Airflow: Front-to-Back

• Operating Temperature: 0 to 40ºC (32 to 104°F)

• Dimensions (HxWxD): 1.73''x8.46''x14.02'' (44x215x356mm)

• Max. Power Consumption: 101W
• RJ45 Ports: 24x 10GBase-T
• 25G/40G/100G Ports: 2x 100G QSFP28
• Management Layer: L3
• Stacking or MLAG: MLAG
• VLAN, QoS, IGMP Snooping, Link Aggregation: YES
• Static Routing, RIP, OSPF, IPv6 support: YES
• Power Supplies: 1 Hot-swappable
• Fan Number: 2 Built-in

Product Highlights

• 24x 10/100/1000M/2.5G/5G/10G RJ45, 2x 40G/100G QSFP28 (Split to 4x 10G/25G)

• The Half-width Form Factor Enables Redundant Top-of-rack

• Two-node Power Redundancy, Quiet Variable-speed Fans

• IGMP Snooping & Querier, Multicast, QoS, and PTP TC for AV applications

• Support MLAG, VXLAN, OSPF, BGP, RIP, PBR, VRRP, VLAN, etc.

• ACLs, 802.1X, AAA, SSH, DAI, DHCP Snooping, etc. for Security

• Support CLI/WEB/SNMP/sFlow/RMON for Flexible Operation

Software Spotlights

Resiliency and High Availability

• Redundant, hot-swappable power supplies
• Multi-Chassis Link Aggregation (MLAG)
• IEEE 802.3ad Link Aggregation (LACP)
• Virtual Router Redundancy Protocol (VRRP)
• Support BFD for fast link failure detection
• Graceful protocol restart (OSPF, BGP)
• Unidirectional Link Detection (UDLD)
• Ethernet Ring Protection Switching (ERPS)

Security

• IP Source Guard (IPSG)
• Dynamic ARP Inspection (DAI), Proxy ARP, Static ARP
• 802.1X, SSH, ACLs, RADIUS, TACACS+
• Control Plane Policing (CoPP)
• DHCP Relay, DHCP Snooping
• Enable or disable port security

Management

• CLI-based, using console ports
• SNMP v1/v2/v3, RMON, FTP/TFTP
• WEB UI, Telnet, SSH
• RPC-API for Software Defined Network (SDN)
• Network Time Protocol (NTP)
• Link Layer Discovery Protocol (LLDP)
• Traffic monitoring

10G Interconnect

Multi-Gigabit Ports Ensure Agile Network Expansion
24 Multi-Gigabit (2.5/5G) ports enable high-speed network upgrades over existing cabling, and 2 100G ports provide robust connectivity for future expansion.

Reliable AV over IP Performance with Advanced Features
Experience reliable AV over IP performance with IGMP, QoS, PTPv2, and VLAN support, along with a user-friendly Web UI and quiet, variable-speed fans, making it ideal for AV, broadcasting, and conferencing environments.

IGMP Snooping Enhances AVoIP Multicast Efficiency
IGMP Snooping efficiently manages multicast traffic to reduce network load and optimize bandwidth utilization, enhancing the network experience for applications like IPTV and video conferencing.

PTP (Precision Time Protocol) Supports Sub-microsecond Precision
PTP TC helps switches accurately calculate transmission delays and adjust message timing, reducing errors and enhancing synchronization accuracy.

MLAG Realizes Uninterrupted Services
MLAG delivers device-level link redundancy and load balancing by aggregating links across two switches, enhancing network performance, reliability, and service continuity.

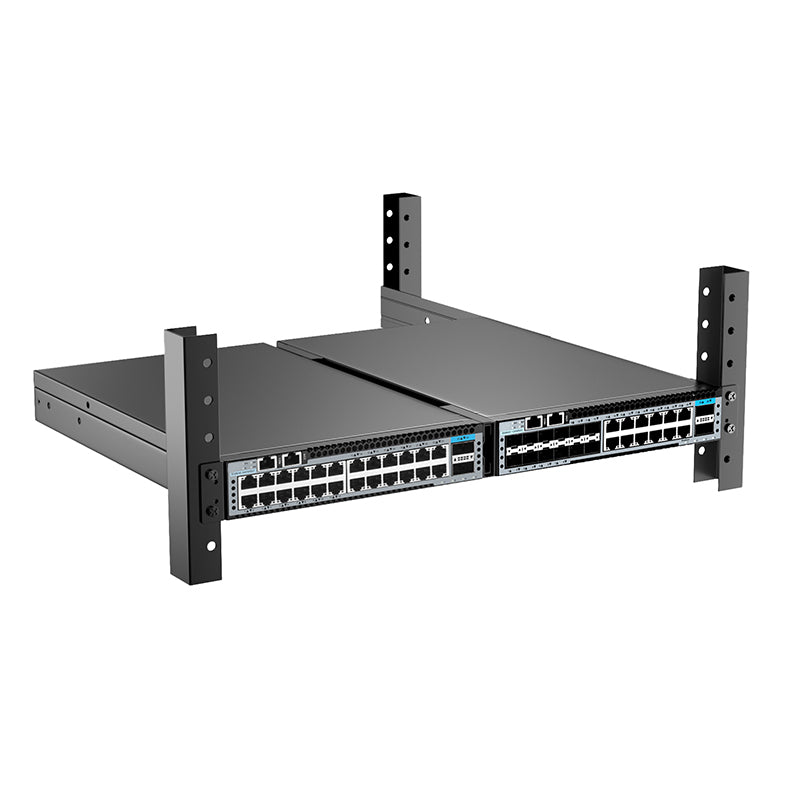

Half-Width Design Enables Flexible Deployment Options
Supports single or dual-switch assembly in 1U rack space, wall-mounted deployment, and single or dual-row placement without a cabinet, easily meeting diverse deployment needs.

Built-in Smart Fans and Quiet Design for Energy Saving
The switch incorporates a Quiet design and intelligent fan speed regulation, effectively minimizing fan noise and enhancing overall system stability.

Multiple Management Methods for Easy Network Maintenance
Supporting WEB, CLI, SSH, SNMP, and other methods to deliver a streamlined experience for the device's convenient maintenance and network management without additional cost.
