FS-S8550-16Q8C, 16-Port Ethernet L3 Switch, 16 x 40Gb QSFP+, with 8 x 100Gb QSFP28, Support MLAG

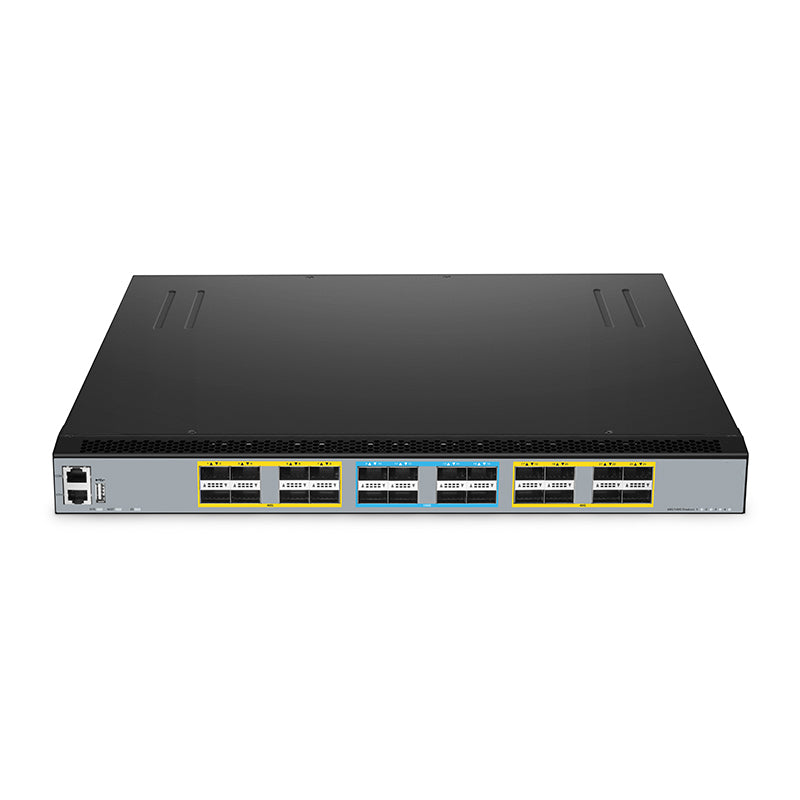

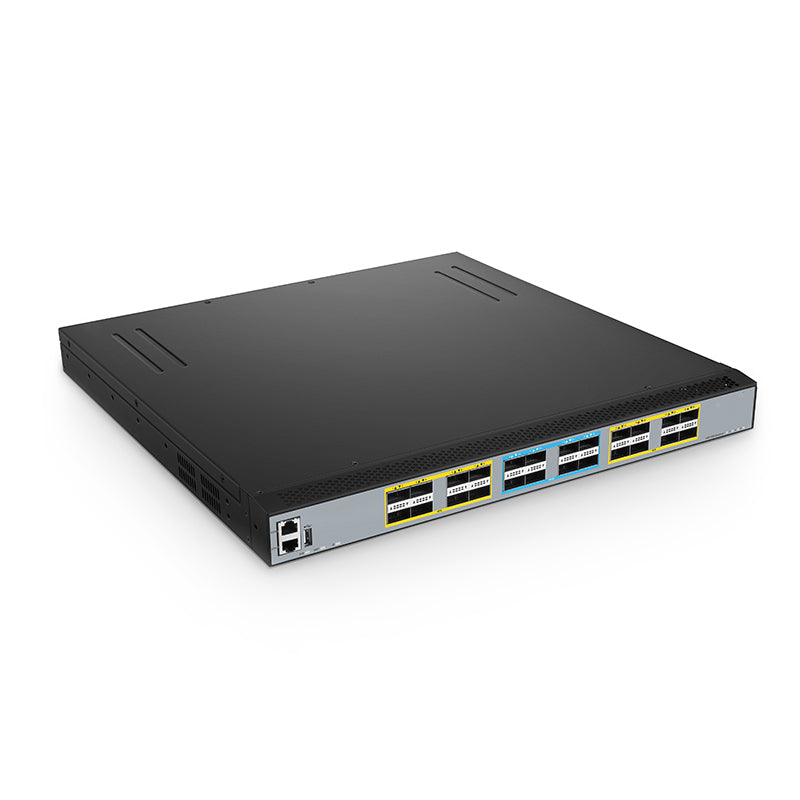

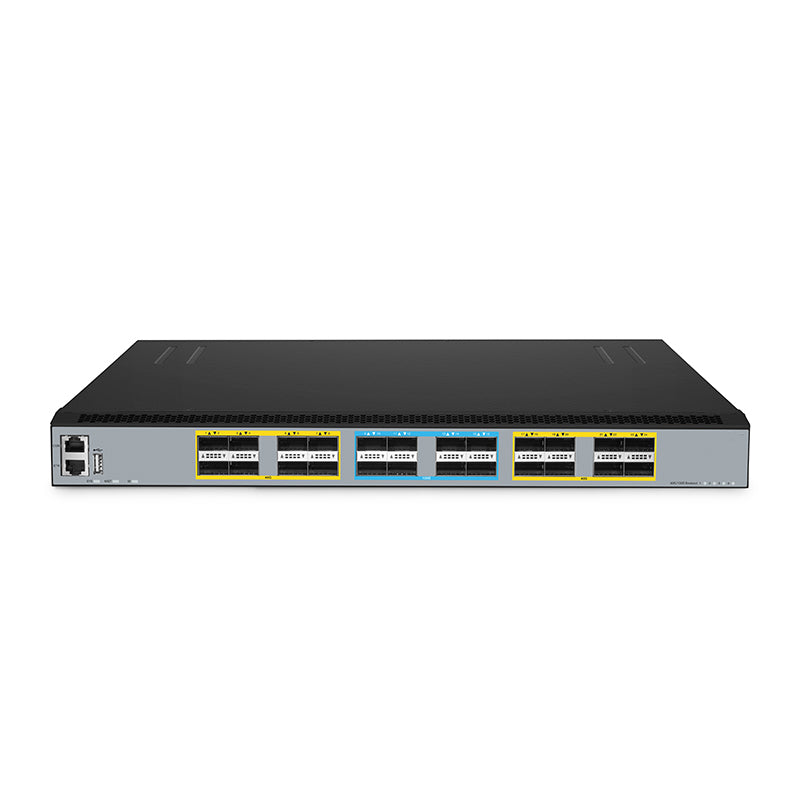

FS-S8550-16Q8C, 16-Port Ethernet L3 Switch, 16 x 40Gb QSFP+, with 8 x 100Gb QSFP28, Support MLAG FS-S8550-16Q8C is a high-performance switch of 16x 40Gb QSFP+ and 8x 100Gb FS-QSFP28 ports which can be split to 4x 10G and 4x 10/25G respectively, loaded with hot-swappable and redundant power supplies and fans.

The switch offers complete L2/3 features and protocols (RIP, OSPF, BGP) for rapid service deployment and efficient management of traditional networks. It also includes advanced capabilities like MLAG, EVPN, VXLAN, IPv4/IPv6, PFC, and ECN, along with diverse management options through Intelligent Ethernet OAM.

FS-S8550-16Q8C ethernet switch supports high concurrency and multi-service isolation for medium to large enterprises core, and facilitates Spine-Leaf architecture deployment for large-scale and cloud computing data centers.

Specifications

• Ports: 16x 40Gb QSFP+, 8x 100Gb QSFP28

• Switching Capacity: 2.88 Tbps

• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC

• Forwarding Rate: 2142.72 Mpps

• Fans: 4 (3+1 Redundancy) Hot-swappable, Front-to-Back

• Packet Buffer: 36MB

• Dimensions (HxWxD): 1.7''x17.4''x 18.5'' (43.18x442x471mm)

• Jumbo Frame: 9,600

• Weight: 19.84lbs (9kg)

• MTBF: >70,080 Hours

• Max. Power Consumption: 171W

• MAC Address: 122,880

• Input Voltage: 100 ~ 240V; 50/60Hz

• ARP Table: 16,384

• Operating Temperature: 0 to 45ºC (32 to 113°F)

• Number of VLANs: 4094

• Storage Temperature: -40 to 70ºC (-40 to 158°F)

• DRAM: 2GB

• Flash Memory: 8GB

• Latency: 0.7μs
• Ports: 16x 40G QSFP+ | 8x 100G QSFP28
• Switching Capacity: 2.88 Tbps
• Forwarding Rate: 2142.72 Mpps
• Power Supplies: 4 (3+1 Redundancy) Hot-swappable
• Fans: 4 (3+1 Redundancy) Hot-swappable, Front-to-Back
• Max. Power Consumption: 171W
• Time Management: PTP
• MLAG: Yes
• VLAN, QoS, IGMP Snooping, Link Aggregation: Yes
• Static Routing, RIP, OSPF, IPv6 support: Yes

Software Spotlights

Resiliency and High Availability

• All Ports support Multi-Chassis Link Aggregation (MLAG)
• Redundant, hot-swappable power supplies and fans
• Multiprotocol Label Switching (MPLS)
• IEEE 802.3ad Link Aggregation (LACP)
• Virtual Router Redundancy Protocol (VRRP)
• Support BFD for fast link failure detection
• Graceful protocol restart (OSPFv2/v3)
• Unidirectional Link Detection (UDLD)
• Ethernet Ring Protection Switching (ERPS)
• EFM OAM

Security

• NAC: 802.1X, MAC authentication
• IP Source Guard
• ARP Inspection, Static ARP, Gratuitous ARP, basic ARP-Proxy and local ARP Proxy
• SSH, ACLs, RADIUS, TACACS+, Local Authentication
• Control Plane Policing (CoPP)
• IPv4/IPv6 DHCP Snooping
• Enable or disable port security

Management

• Industry-standard CLI
• SNMP v1/v2/v3, RMON, FTP/TFTP/HTTP
• User login: console, SSH, telnet
• Precision Time Protocol (PTP)
• Network Time Protocol (NTP)
• Link Layer Discovery Protocol (LLDP)
• Traffic monitoring: sFlow
• DHCP server, DHCP client, and DHCP Relay
• Domain Name System (DNS)
• Power-on diagnostics

Connectivity Solutions

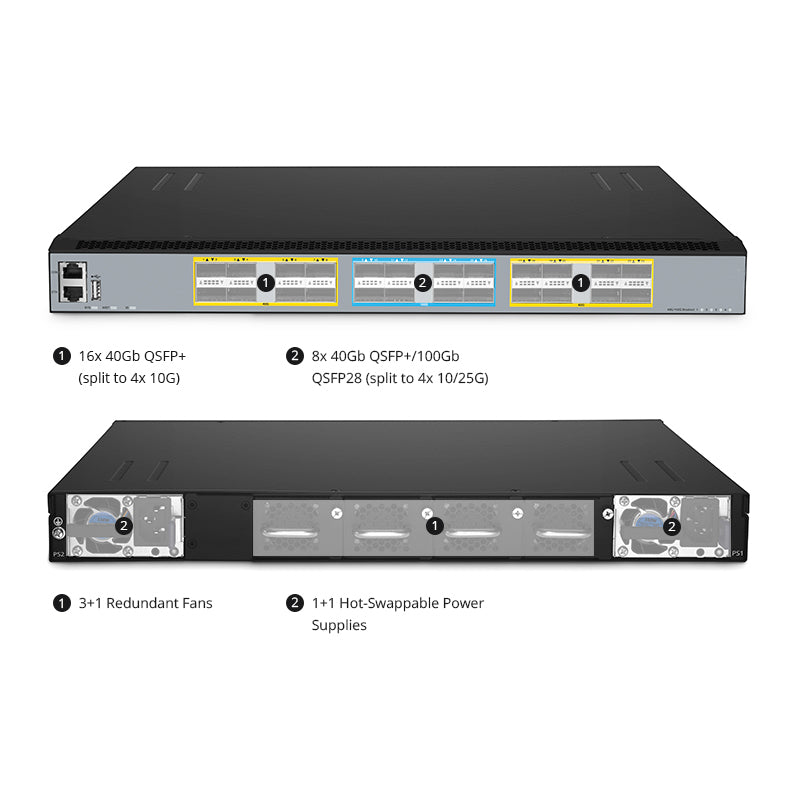

40/100G High-Speed Ports Ensure Agile Network Expansion
The 16× 40GbE and 8× 100GbE portsports support split interface with breakout cables, optimizing network resource utilization and adapting to various scenarios.

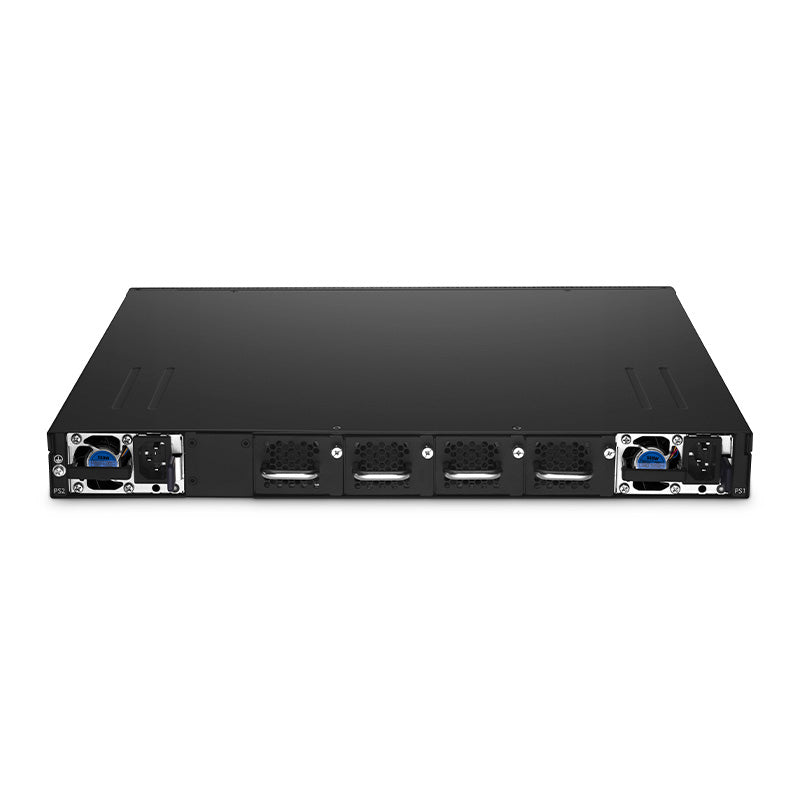

1+1 Hot-Swappable Power Supplies and 3+1 Redundant Fans
The dual power supplies can be replaced without shutting down the system, and the variable-speed fans with front-to-back airflow automatically adjust fan speed to reduce power draw.

1+1 Redundant Power Supplies
PSUs can be removed/replaced without shutting down the system

3+1 Hot-swappable Smart Fans
Variable-speed fans with front-to-back airflow for better cooling and less consumption

MLAG Architecture Realizes Uninterrupted Services
MLAG takes the benefits of link aggregation and spreads network bandwidth and reliability across a pair of enterprise switches to deliver system level redundancy as weell as network level resiliency.

One Switch, Multiple Features
Support comprehensive networking features across L2/L3, availability, security, QoS, and management to elevate network performance and streamline management

Comprehensive Security Policy Protects from Network Threats
With network-level security and stability capabilities like SSH, ACL, AAA, etc., it defends against network threats for enterprises, campus and financial industry.

Flexible Management Options
Supports Console, USB, MGT. diverse management interface, and WEB/CLI/SNMP/SSH method, delivering efficient, flexible, and secure network operations.
