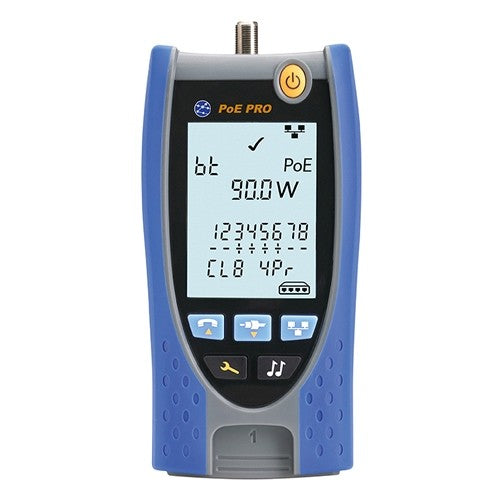

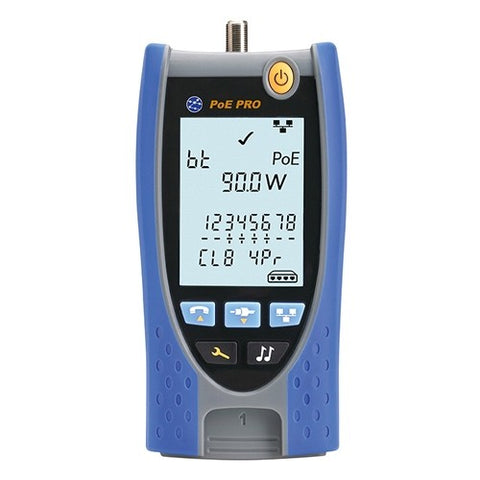

Ideal Networks PoE Pro - Data Cable And Power Over Ethernet

Fosco Connect Part No.: R158004

$ 795.00 or

The new PoE Pro eliminates guesswork when installing, maintaining and troubleshooting networks where PoE is deployed. Displays pass/fail PoE per industry standard, class and available power.

Measures cable length
Provides distance to fault (TDR)
Identifies wiring errors instantly
Determines services running: ISDN, PBX and PoE
RJ-11, RJ-12, RJ-45 and COAX ports

Kit Contents

PoE Pro – Data Cable and Power over Ethernet Verifier. Includes 1 x tester, 1 x dual port remote unit, 1 x coax remote unit, 1 x alkaline battery, 1 x multi-language user guide, 2 x RJ45 to alligator clip cable 390mm, 2 x screened RJ45 to RJ45 cable 150mm, 2 x RJ12 to RJ12 cable 100mm, 1 x F-type plug to F-type plug cable 230mm, 1 x F-81 barrel splice, 1 x BNC female to F-type male adaptor, 1 x BNC female to F type female adaptor, 1 x RCA female to F-type male adaptor, 1 x RCA female to F-type female adaptor, 1 x wallet wiring card, 1 x carry case.

PoE Testing:
• Validate PoE to ensure your device & network performs successfully
• Supports 802.3bt High Power PoE (up to 90 watts)
• Compatible with most non-standard PoE injectors
• Identifies PSE Type (af/at/bt)
• Identifies PSE Class – 0 to 8
• Determines maximum power available (watts) at the device location
• Displays voltage
• Displays how many pairs have PoE

Basic Specifications

Description

Dimensions: 160 mm x 76 mm x 36 mm

Weight: 0.26 kg

Length Range: 0.3 – 600m / 1 – 1969ft

Battery Type: 9V Alkaline. 2. Typically 20 hours minimum continuous use (backlight off)

Product Spec Sheet
