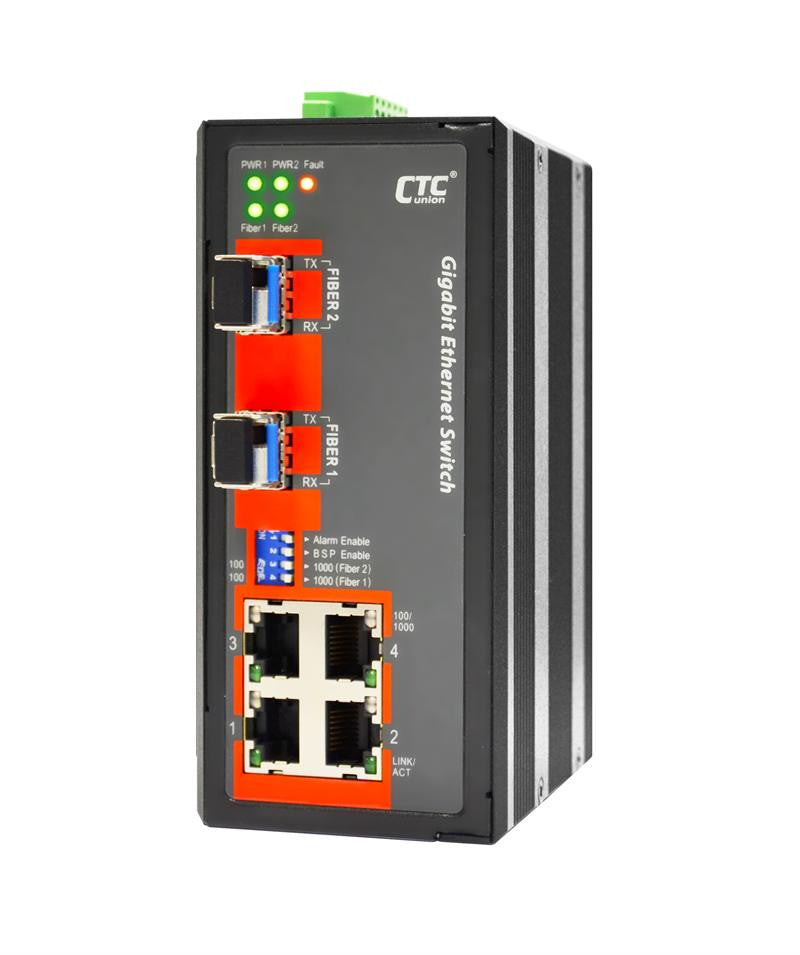

IGS-402S - 4 copper + 2 SFP port Gigabit Ethernet Industrial switch, DIN rail mount
Product description
The IGS-402S is a 6-port Ethernet Gigabit switch with 4 10/100/1000Base-T(X) ports and 2 100/1000Base-X SFP slots, providing stable
and reliable transmission for industrial Ethernet connections. Switch supports IEEE 802.3/802.3u/802.3x/802.3ab, full/half-duplex,
MDI/MDI-X auto-sensing, making it ideal for providing an economical high-bandwidth solution for an industrial Gigabit Ethernet network.
Switchable 100Base SFP or 1000Base SFP ports can be set up easily using the DIP switches located on the Front panel.
The IGS-402S switch has built-in relay warning function for
alerting power failures; providing broadcast storm protection function to eliminate the broadcast storming in your networks. The
switches can be installed easily on a DIN-Rail or Wall mounted, IGS-402S-E wide operating temperature (-40 ~ 75°C) models especially
for industrial harsh environment applications.
Features
The IGS-402S is a 6-port Ethernet Gigabit switch with 4 10/100/1000Base-T(X) ports and 2 100/1000Base-X SFP slots, providing stable
and reliable transmission for industrial Ethernet connections. Switch supports IEEE 802.3/802.3u/802.3x/802.3ab, full/half-duplex,
MDI/MDI-X auto-sensing, making it ideal for providing an economical high-bandwidth solution for an industrial Gigabit Ethernet network.
Switchable 100Base SFP or 1000Base SFP ports can be set up easily using the DIP switches located on the Front panel.
The IGS-402S switch has built-in relay warning function for
alerting power failures; providing broadcast storm protection function to eliminate the broadcast storming in your networks. The
switches can be installed easily on a DIN-Rail or Wall mounted, IGS-402S-E wide operating temperature (-40 ~ 75°C) models especially
for industrial harsh environment applications.
Features
- Redundant dual DC input Power 12/24/48VDC (9.6~60VDC)
- IP30 rugged metal housing
- Wide operating temperature -40~75°C (IGS-402S-E only); -10~60°C for standard model
- UL508, CE, FCC, UL60950-1
- Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified
- 4-Port 10/100/1000Base-T(X) copper and 2 x 100/1000Base-X SFP transceiver ports
