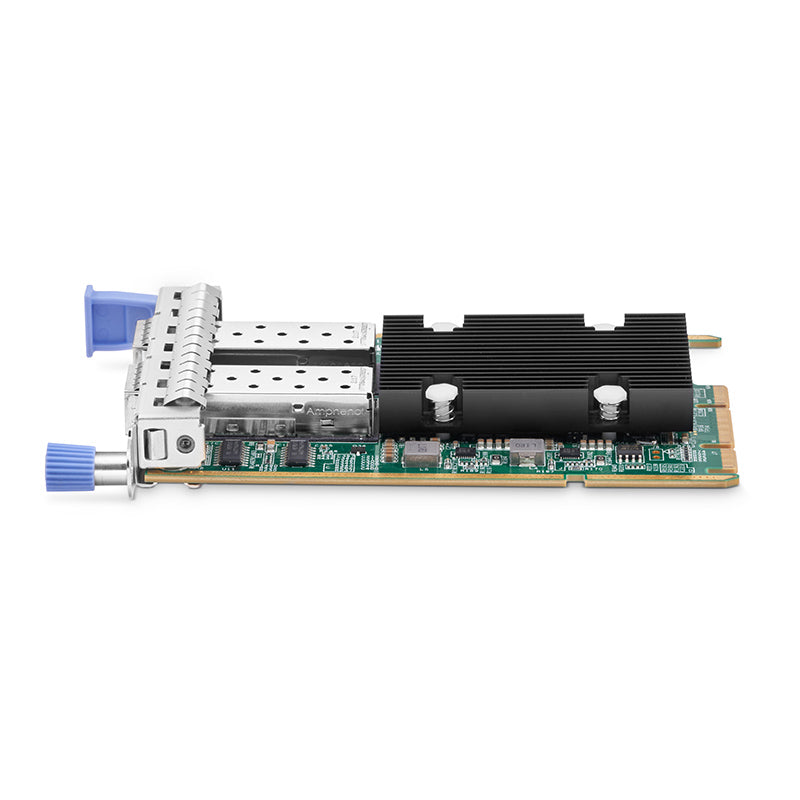

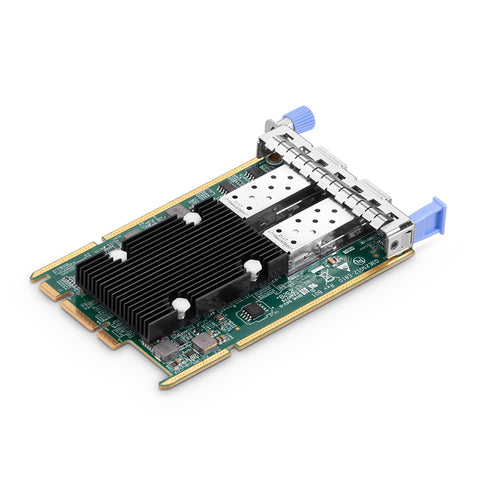

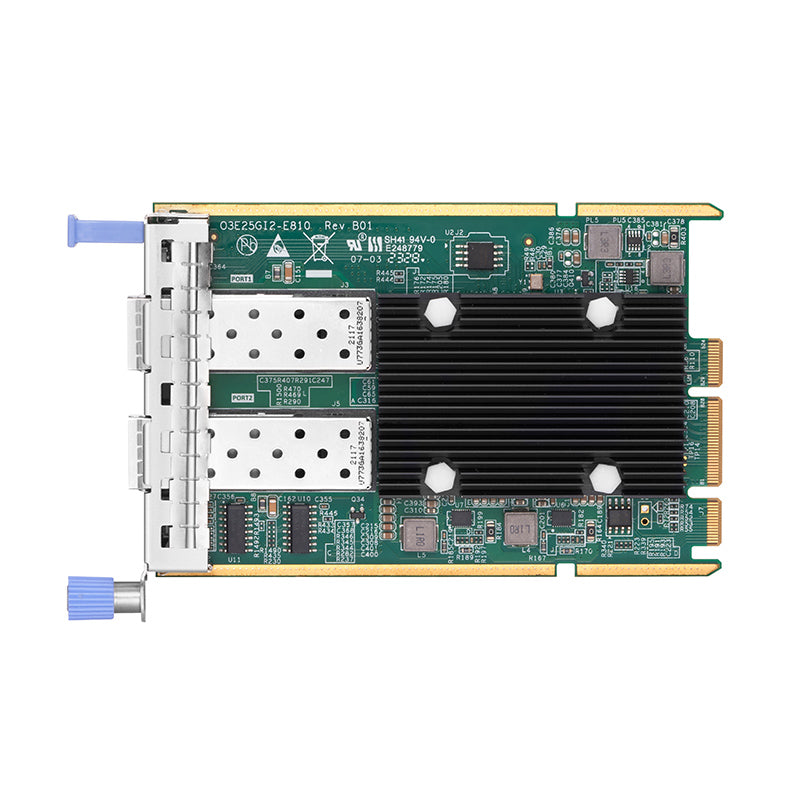

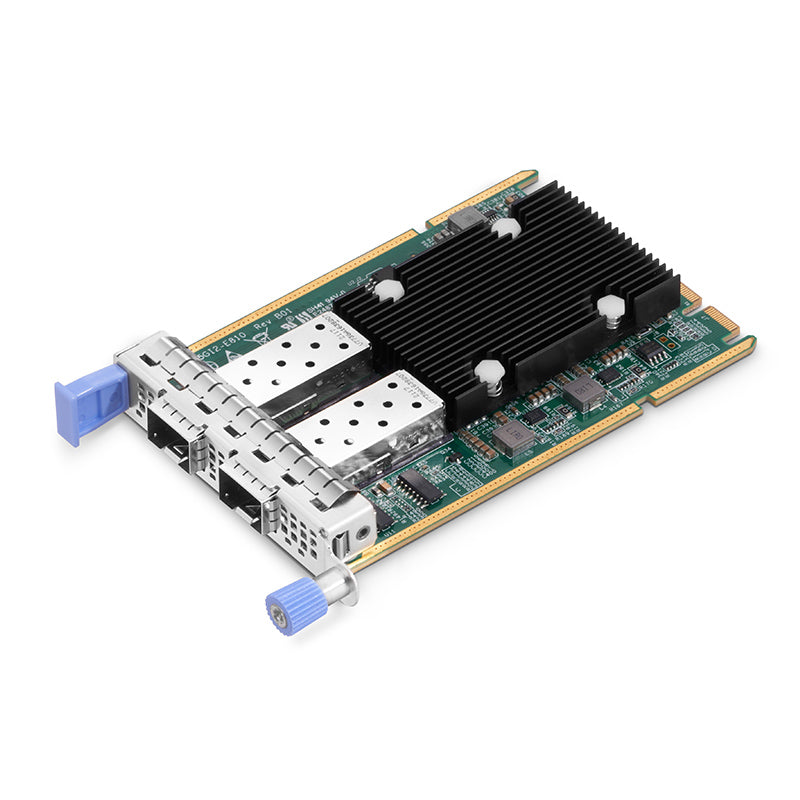

Intel E810-XXVAM2 Based Ethernet Network Interface Card, 25G Dual-Port SFP28, OCP 3.0, PCIe 4.0 x 8 , Comparable to Intel E810-XXVDA2 OCP 3.0, Thumbscrew (Pull-tab) Bracket

Intel® Ethernet 800 Series network adapters improve application efficiency and network performance with innovative and versatile capabilities. With two 25GbE SFP28 ports and key performance optimizations, the E810XXVAM2 for OCP 3.0 supports solutions across Cloud, Enterprise, and Communications.

The OCP NIC 3.0 specification defines a standardized design for a new generation of network adapters. Simple and straightforward form factors, clear manageability requirements, and improved serviceability help simplify deployment for current and emerging capabilities.

Specifications

• Ports: Dual

• Controller: E810XXVAM2

• Data Rate: 25GbE

• Host Interface: PCIe 4.0 x 8

• Connector Type: SFP28

• Bracket Height: OCP 3.0

• Connectivity (VT-c): Yes

• Storage Over Ethernet: SMB Direct

• SR-IOV: Yes

• GENEVE: Yes

• VXLAN: Yes

• DPDK: Yes

• RoCE: Yes

• OS Support: Windows, Linux, FreeBSD

• Storage Humidity: 90% max. non-condensing relative humidity at 35ºC

• Operating Humidity: 85% max. non-condensing relative humidity

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F）

• Operating Temperature: 0°C to 55 °C (32 °F to 131 °F)

Product Highlights

• OCP NIC 3.0 Accommodates High-Density Deployments to Improve
• Interoperability and Compatibility for Seamless Integration

• Supports Geneve, VXLAN, and NVGRE for High Throughput and Lower CPU Usage

• Data Plane Development Kit (DPDK) Optimised for Efficient Packet Processing

• IEEE 1588 (PTP) Enables Sub-microsecond Clock Synchronization for Precise Network Control

• Dynamic Device Personalization enables protocol-specific traffic acceleration and reduces CPU overhead

• Support iWARP and RoCEv2 for Low-latency, High-throughput Workloads
• SR-IOV: YES
• NVGER: YES
• GENEVE: YES
• VXLAN: YES
• DPDK: YES
• IWARP: YES
• RoCE: YES

Product Spotlights

Virtualization Features

• 8 Physical Functions (PF)
• SR-IOV with up to 256 Virtual Functions (VF)
• 768 Virtual Station Interfaces (VSI)
• Microsoft VM Queue (VMQ)
• VMware NetQueue

Advanced Technologies

• Application Device Queues (ADQ)
• Dynamic Device Personalization (DDP)
• Advanced Transmission Scheduling
• IEEE 1588 Precision Time Protocol (PTP)
• Storage Performance Development Kit (SPDK)
• TCP segmentation/large send offload

Manageability Features

• NC-SI over MCTP
• NC-SI over SMBus
• MCTP over PCIe
• BMC
• PLDM and PLDM based firmware update

Connectivity Solutions

End-to-End RDMA over Converged Ethernet (RoCE) Solution
The Intel Ethernet 800 Series supports RDMA iWARP and RoCEv2 to enable low-latency, high-throughput workloads, while ensuring scalable, reliable, and easily deployable RoCE solutions.

OCP NIC 3.0 Enables Compact Servers for High-Power NICs
OCP NIC 3.0, with simple form factors, clear manageability, and improved serviceability, integrates Intel X710 chips to cut power use, simplifying deployment for current/emerging capabilities.

Advanced Networking and Security
Intel E810 supports SR-IOV, Intel® Data Direct I/O Technology, and protocols like Geneve and VXLAN, optimizing performance, offloading cloud network workloads, freeing CPU cores, enhancing security, and lowering TCO.

Unlock Seamless Network Performance with Compatibility Testing
The universal interface seamlessly integrates with mainstream server motherboards and supports multiple operating systems, reducing costs while safeguarding investment flexibility and future scalability.
