IPM-4T1 - Four T1 over IP/Ethernet extender - TDM over Ethernet - redundant AC and DC48V power supplies
Move your mouse over image or click to enlarge
IPM-4T1 - Four T1 over IP/Ethernet extender - TDM over Ethernet - redundant AC and DC48V power supplies IPM-4T1 - Four T1 over IP/Ethernet extender - TDM over Ethernet - redundant AC and DC48V power supplies

IPM-4T1 - Four T1 over IP/Ethernet extender - TDM over Ethernet - redundant AC and DC48V power supplies

CTC Union Part No.: IPM-4T1-AD

  • $ 960.00 or


The IPM-4T1-AD unit can send four T1 interfaces over Ethernet networks using IP protocol. IPM-4T1-AD is available with redundant AC (100-240V) and DC48V (36-72V) power supplies. The IPM-4T1 can extend TDM networks using the Internet as transport network. Thus, cost effective solutions are available for deploying highly expensive TDM networks into areas with Internet coverage.

Features of IPM-4T1-AD access unit
Supports synchronous TDM services and Ethernet over IP network
Offers Ethernet cascading ability to increase the number of TDM interfaces
Supports point-to-point T1 over IP network transport
Supports clock recovery for the
T1 interfaces
CLI, Telnet and SNMP management supported, upgradable firmware
Redundant AC 100-240V power and DC
36-72V power available, AC power cord supplied in the package

Technical specifications

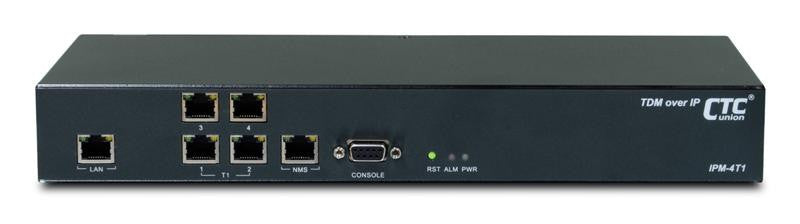

Ethernet connectors: one RJ45 10/100Base-TX uplink port and one RJ45 10/100Base-TX LAN port
TDM connectors: T1 RJ45 100ohms
Framing: Unframed, D4, ESF, PCM30, PCM31
Data rate: 1544Kbps on T1 interfaces
LEDs: PWR/ TD/ RD/ RTS/ DCD/ T-CLK Loss/ Red Alarm/ Sync Loss/ Yellow Alarm/ Err/ Test

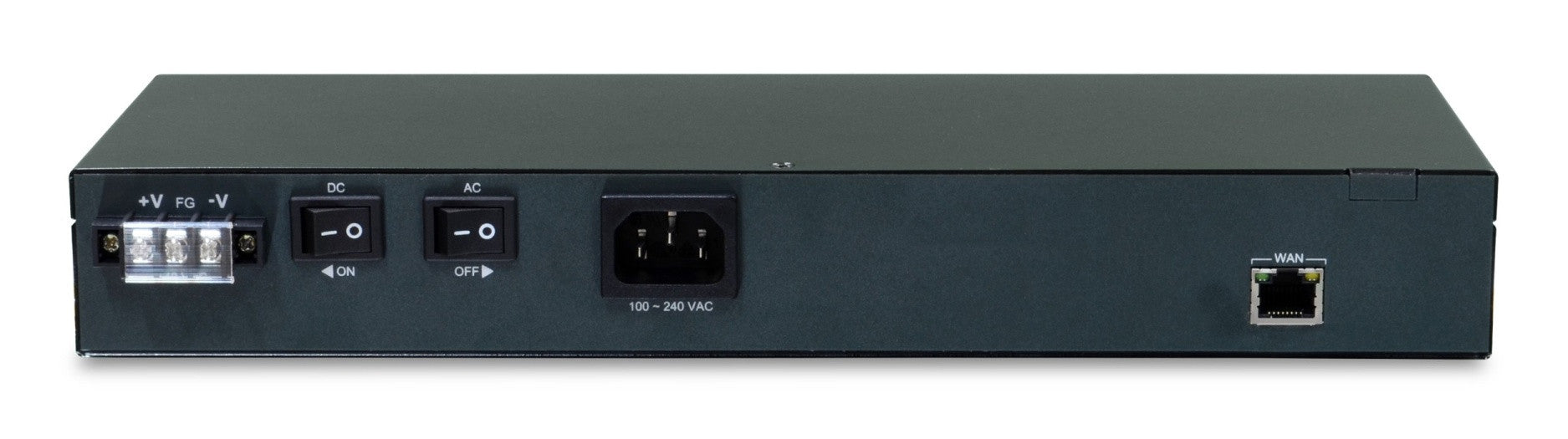

Power: AC 100-240V plug, DC 36-72V 3 pin screw block connector
Temperature: 0-50§C (Operating), 0 - 70§C (Storage)
Humidity: 5%-90% non-condensing
Dimensions: 195mm x 235mm x 45mm
Weight: 2100g
Compliance: ITU-T G.703, G.704, G.706, G.732, G.823
MTBF: 57,000 hours
