iSAP5100-CH - modular E1, STM1, POTS, serial, Ethernet and fiber multiplexer with redundant power slots

Fosco Connect Part No.: iSAP5100-CH

  • $ 1,200.00 or

iSAP5100-CH - modular E1, STM1, POTS, serial, Ethernet, and fiber multiplexer with redundant power slots

Important note: The iSAP5100-CH is only the empty chassis of the multiplexer. At least one power supply, one CPU card, and one data card are needed to start using and operating the iSAP5100 multiplexer.

Product description

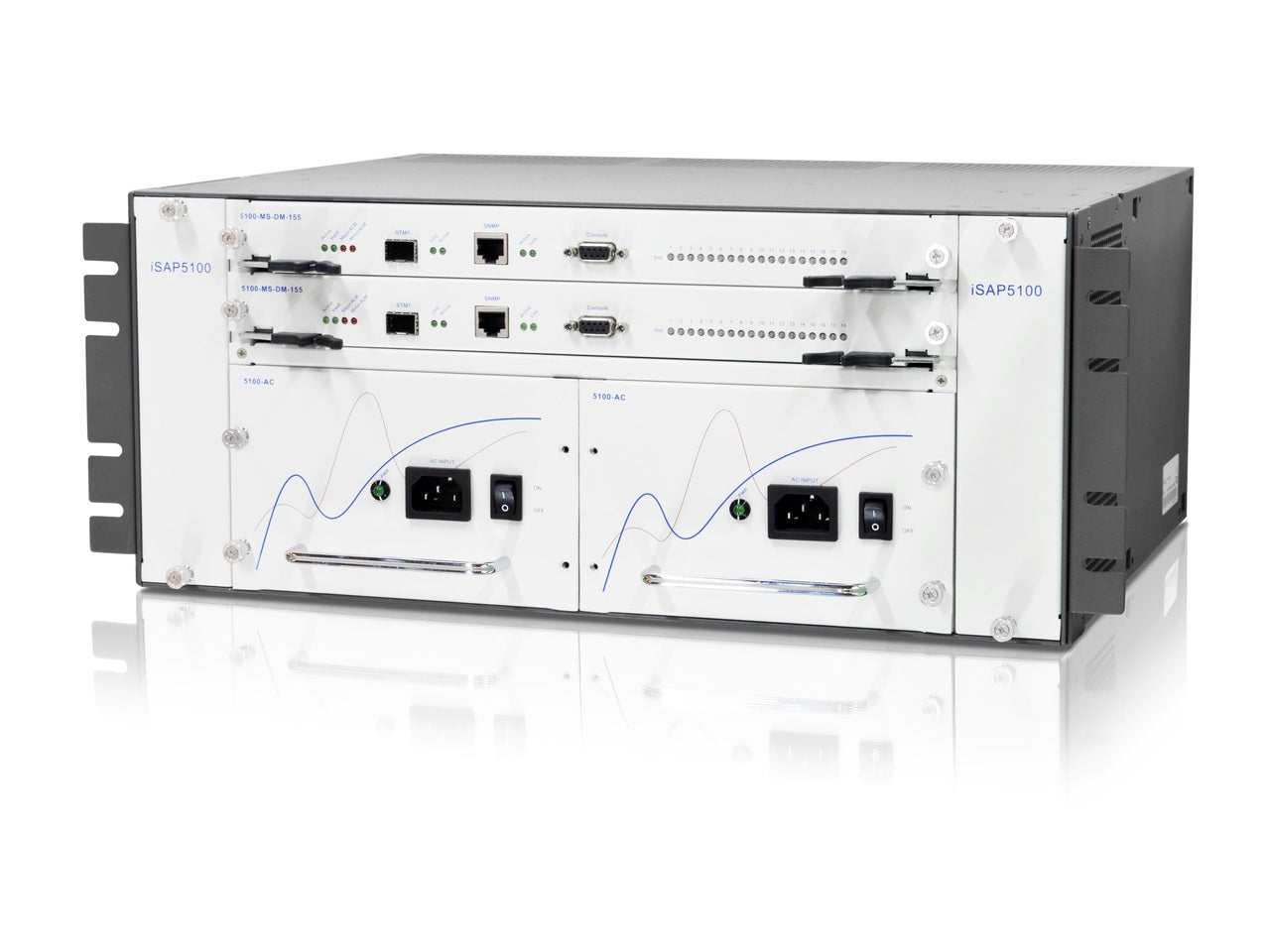

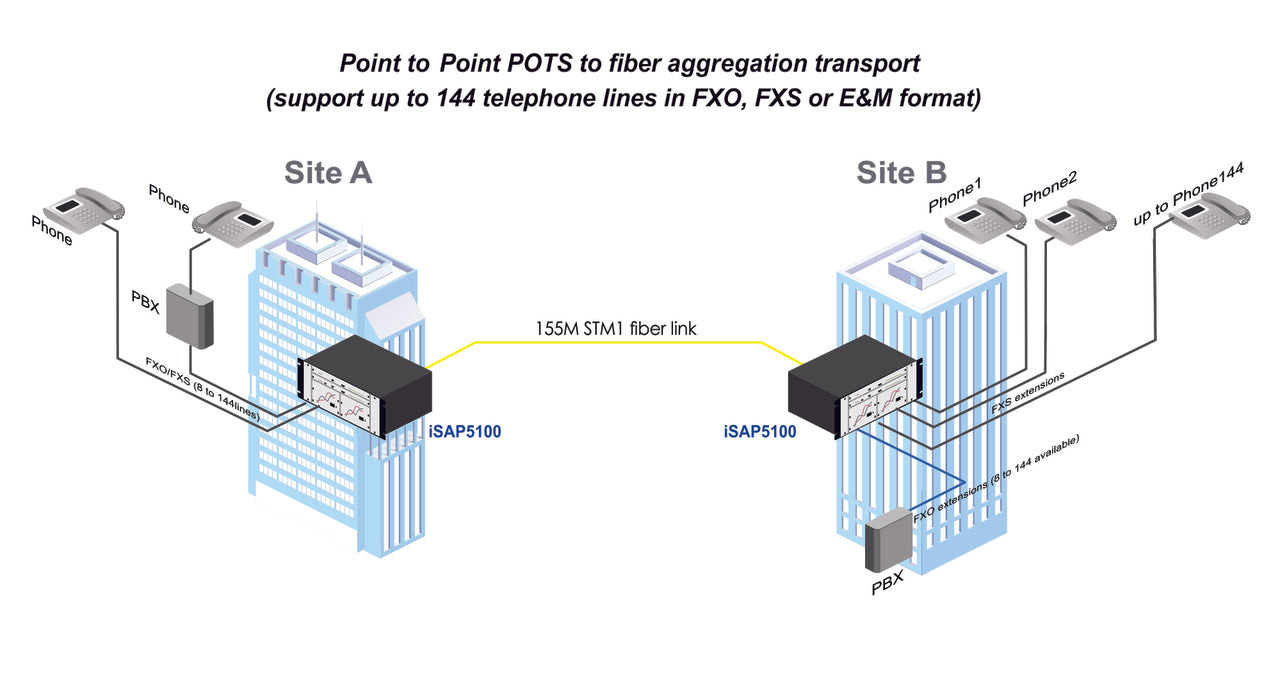

The iSAP5100 is a 5RU, 19" rack-mountable, 20 slots modular STM1/E1 TDM multiplexer design for telecom/carrier-grade redundancy. There are 18 slots available for hot-swappable iSAP5100 I/O cards. Two slots are provided for CPU Controller cards and two slots are provided for power supplies. Uplink supports STM1 fiber and E1 copper, two types of connections, maximum up to 144x E1 cross-connect for Voice and Data. The iSAP5100 accommodates up to two separate power supplies, which may derive power from AC (110/220) or DC (-36~72V) power sources. When two power supplies are installed, the modules provide complete power redundancy and are hot-swappable even during the E1 cards' transmission. The iSAP5100 provides STM1 fiber and E1 copper uplink with maximum E1 support of up to 96 E1 channels with cross connection for Voice and Data or interface including RS232, V.35, G64K, FXS, FXO, ET100, and E&M.

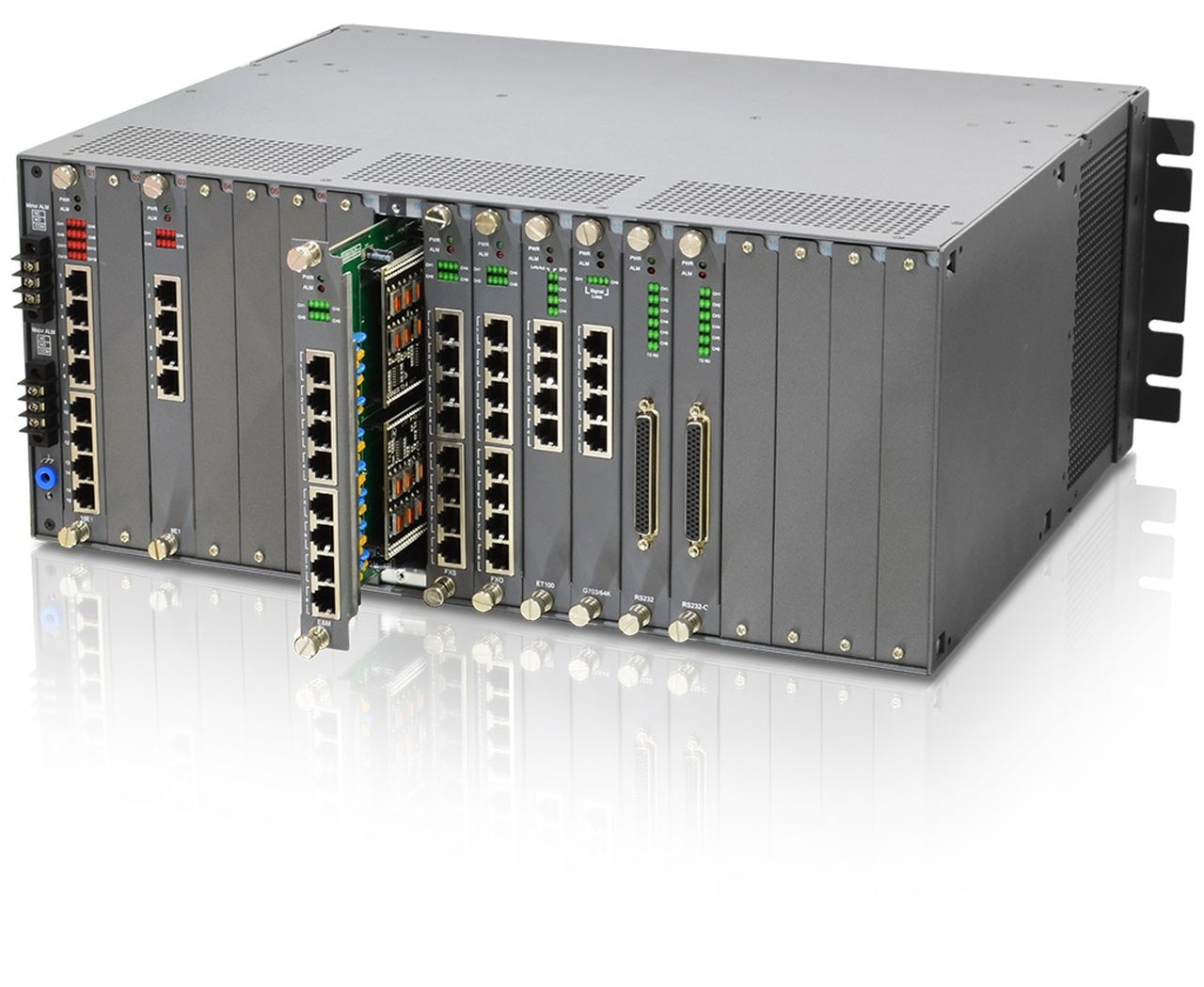

Interface Cards

CPU control card: 5100-MS-DM-96, 5100-MS-DM-155
E1 card: 5100-8E1, 5100-16E1
Power modules: 5100-AC240, 5100-DC240

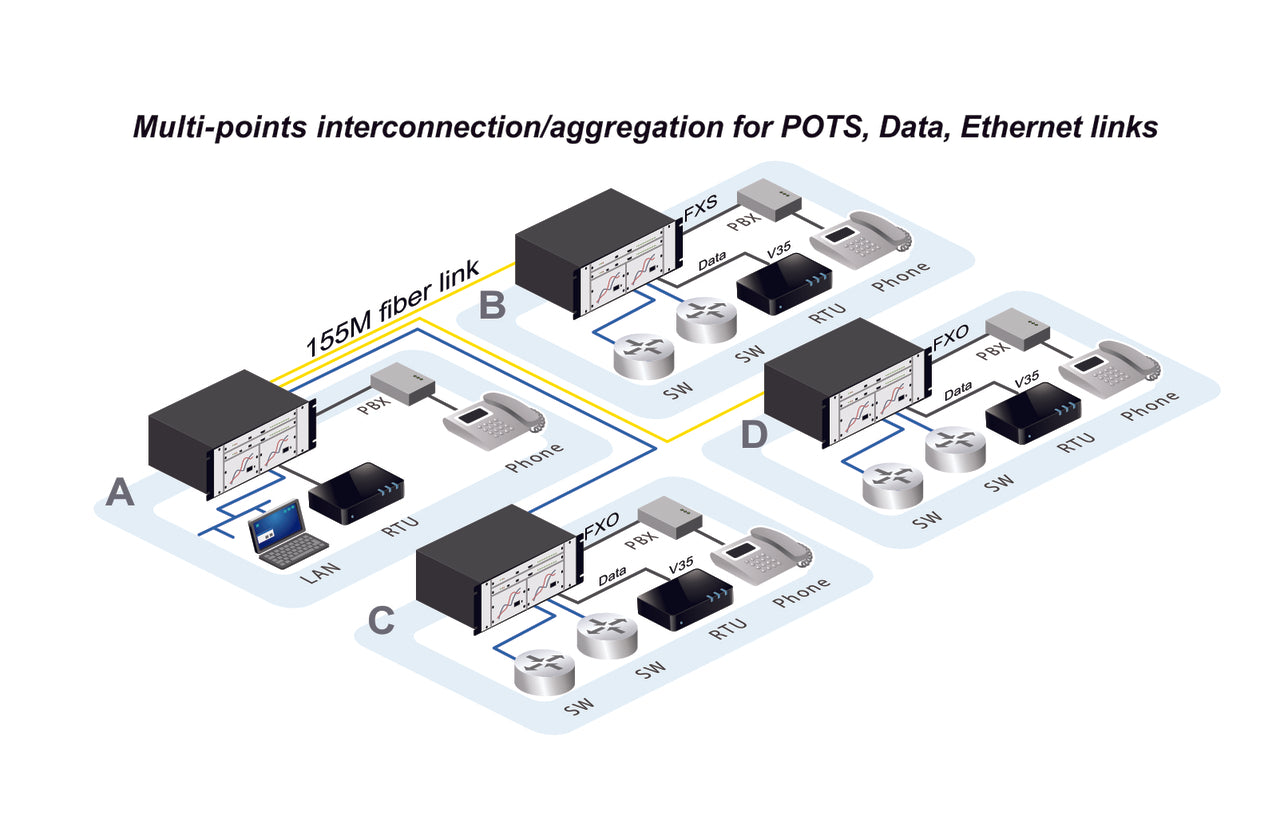

I/O cards: 5100-RS232, 5100-RS232/C for RS-232 interface, 5100-G64K for G703 64K co-dir. interface, 5100-V35 for V.35 synchronous interface, 5100-ET100 for Ethernet; 5100-E&M, 5100-FXS and 5100-FXO all for POTS (telephone) interface


  • Supports MAX. 96xE1 with full cross-connect, Supports DS0 cross-connect
  • Supports 16 channel Main E1 LTU card
  • Supports E1 time slot broadcast function
  • Modular design for Voice I/O card, the voice I/O card has two sub-modules, each sub-module supports 4-port FXO/FXS
  • All modules and cards support hot-swapping
  • DCE card types included N x 64K, RS232(Sync/Async), G703-64K, ET100, E&M, FXO, FXS, etc.
  • Supports Console, Telnet, SNMP, and GUI management
  • Available types of power built-in: AC+AC, AC+DC, DC+DC
  • Modular design, 5U 19”, 18-slot for I/O cards

Technical Specifications

5100-MS-DM-96: Interface 10/100Base-TX Ethernet RJ45 port, Console RS232, E1 Cross-Connect 144xE1 Transparent cross-connect , Supports E1
time slot mapping/broadcast function, CAS Cross-Connect Supports 16-time slot CAS follow voice time cross-connect
5100-MS-DM-155: Interface Supports 1-port STM-1 155M SFP Slot on CPU card, CPU redundancy (1+1), NMS 10/100Base-TX, Console RS232, E1 Cross Connect 155M fiber to 63E1 and 144xE1 cross-connect, supports E1 /time slot mapping/broadcast function, CAS Cross-Connect Supports time slot 16 CAS follow voice time cross-connect, STM-1/E1 Drop / Insert
Supports STM-1 63E1 x 32TS to E1/IO slot 128E1 x 32TS connection
5100-8E1 / 5100-16E1: Interface Supports 8E1/16E1 interface
Line Impedance 120 / 75 ohms
Frame format CAS (PCM30)/CCS (PCM31)
Connector RJ45
5100-RS232: Data rate ≤38.4kbps Async or 64/128kbps Sync
Ports 6-port
Interface RS232
5100-V35: Interface type V.35, Connector HD68F (female) with cable adapter, Line code NRZ, Data rate Nx64kbps
5100-RS232/C: Data rate 9600bps, 19.2Kbps Sync/Async, Ports 6-port, Interface RS232
5100-G64K: Data rate 64Kbps, Co-directional/Contra-directional and Centra-directional
Ports 4-port, Connector RJ45
5100-ET100: Standards IEEE 802.3, 802.3u, MDI/MDIX Auto
Data rate 10/100Mbp, Encapsulation HDLC, Ports 4-port, Connector RJ45
5100-E&M: Loop current 25 mA, maximum 70mA, Ports 8-port, Connector RJ45
5100-FXS: ITU-T Standard G.712/G.713/G.714, Line resistance 600Ω
Off-hook current 25mA, Line distance 2km, Ports 8-port
On-hook current 10mA+/-3mA, Effective Ring Frequency: 25Hz, Voltage: 75V, peak to peak110V
MAX line resistance: 1500Ω, Connector RJ45

Electrical & Mechanical
Dimensions: 350 × 440 × 187 mm (D x W x H)
Environmental Operating: 0~60°C Storage:-25~70°C
Humidity: 10~90%, non-condensing
Power AC 220V: 165~265V, 50~60Hz, DC -48V:-36~-76VDC
Power Consumption < 90W
