LFC-10GT-SFP 10G RJ45 Gigabit/10GBase-T Ethernet to 1G/10GBaseX SFP+ slot fiber media converter
LFC-10GT-SFP 10G RJ45 Gigabit/10GBase-T Ethernet to 1G/10GBaseX SFP+ slot fiber media converter

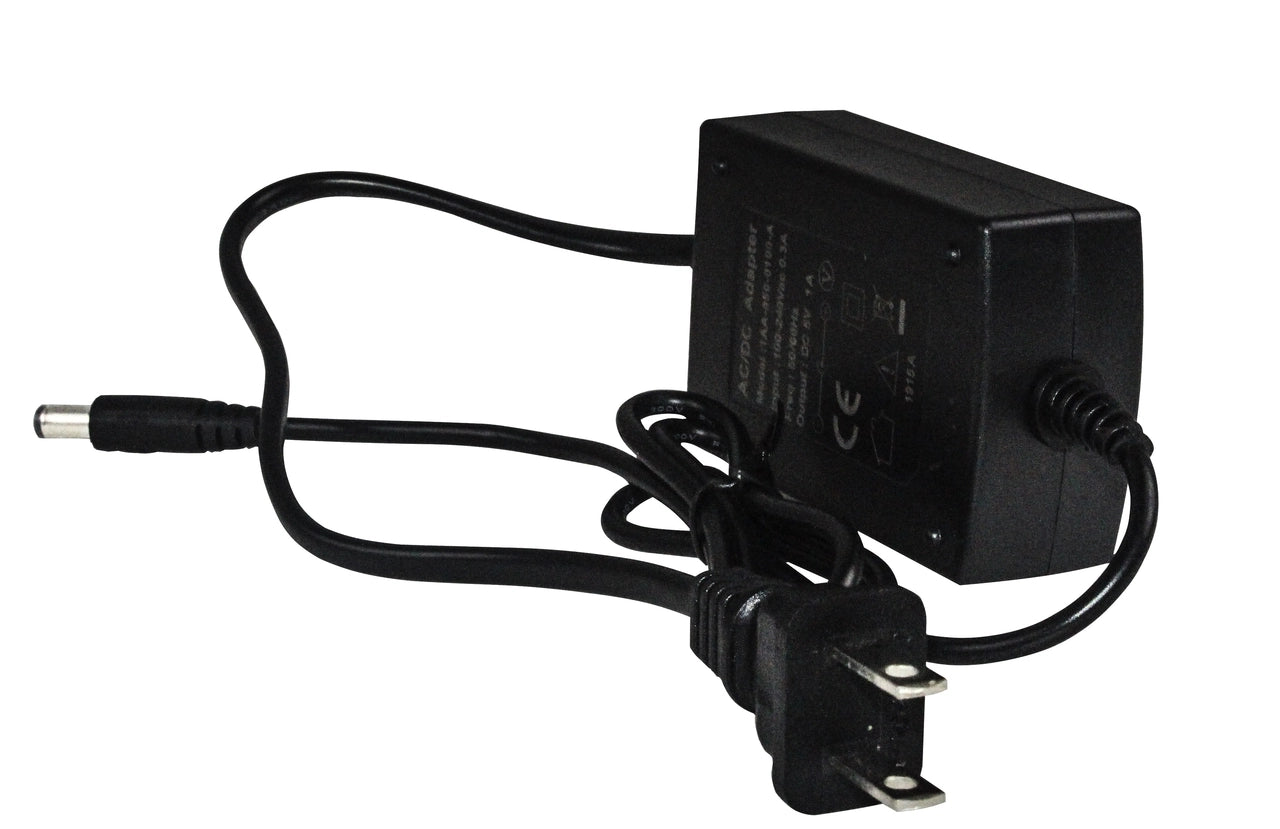

Note: AC 90-240V power adapter is included in carton package.
Product description

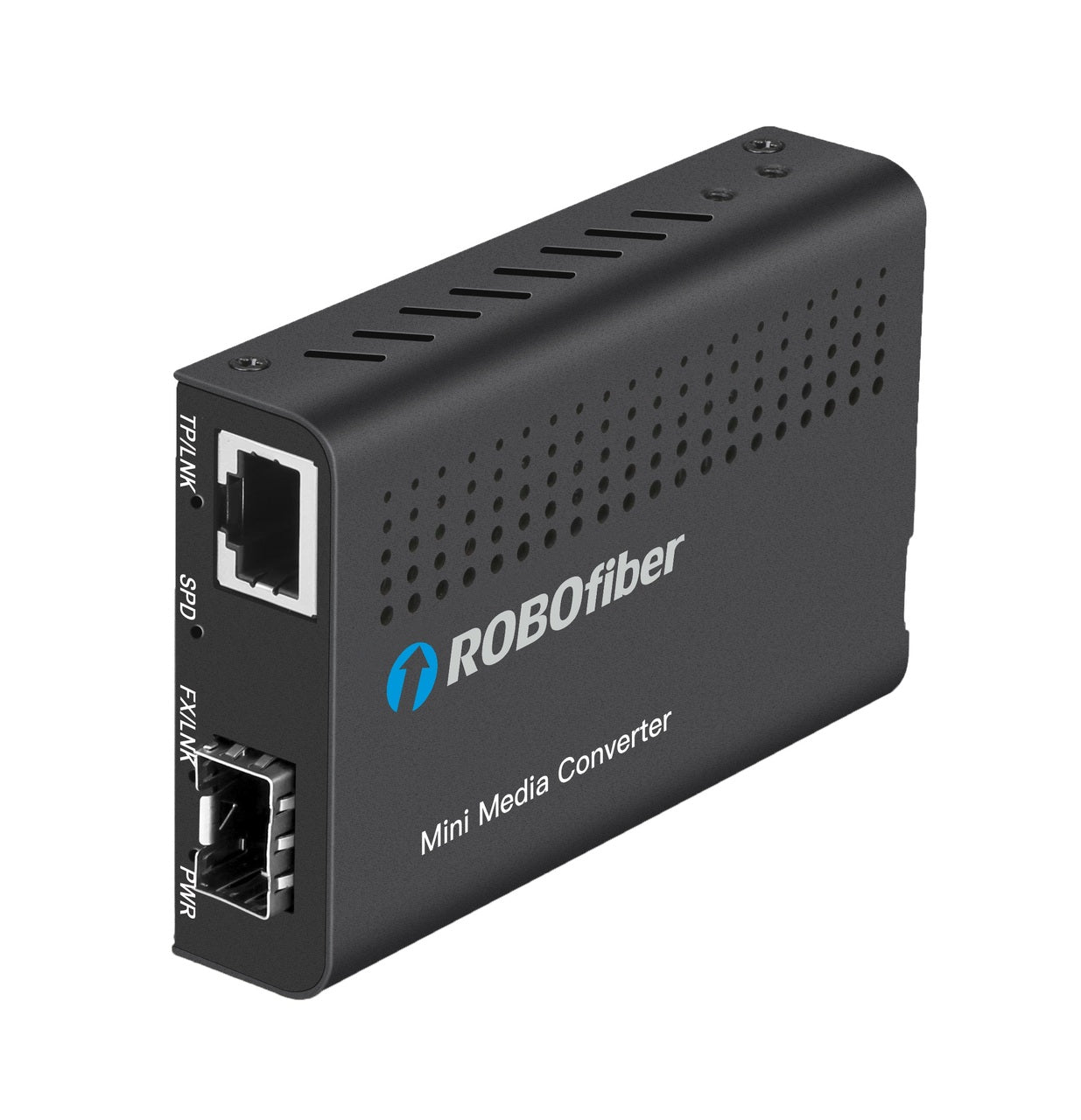

LFC series are newest series of media converters. The LFC-10GT-SFP is a dual speed 1G/10GBase-T RJ45 port to dual speed 1G/10GBase-X SFP/SFP+ slot un-managed fiber media converter.
The SFP+ port can work with any 10G rated SFP+ such as SR, LR, ER, ZR, BiDi, CWDM or DWDM type and does also accept regular Gigabit speed only SFP transceivers.
RJ45 port works at 10GBase-T speed or at 1000Base-T Gigabit speed with settings through DIP switches available for speed. LED indicators signal the power status of the converter, UTP Link and FX port Link.
Used with their compatible LFC-CH12 fiber optic chassis they can be aggregated up to 12 units in a 19" wide and only 1RU of height space only. This is the highest density attainable for unmanaged fiber media converters.
The LFC-10GT-SFP 1G/10G media converter is a very affordable solution for 10G Ethernet media conversion. It also includes a wall mounting solution for individual converters named LFC-WMK.
Features
- 1000Base-T/10GBase-T RJ45 to 1000Base-X/10GBase-X SFP+ slot converter
- Forward 2048 bytes (Max.) packets in switch mode (copper & fiber port in different speed)
- Forward 9k bytes in converter mode (fiber & copper port at the same speed)
- Supports Q in Q double tagged frame transparent
- Supports IEEE 802.1Q Tag VLAN pass thru
- Aggregates into LFC-CH12 series chassis available with various power supplies
Technical specifications
| Copper interface: | RJ45 copper IEEE 802.3an (10GBase-T) and IEEE 802.3z (1000Base-T) compliant |
| Optical interface: | 10G SFP+ (10GBase-X) and Gigabit SFP (1000Base-X) compatible slot |
| Ethernet interface: | Supports 1000Base-T/10GBase-T, transmission packet rate 14880000 per second. Copper TP cable 4 pair Cat. 6, 6a or 7 UTP |
| Optical connector: | LC connector for SFP module (SFP transceiver NOT included) |

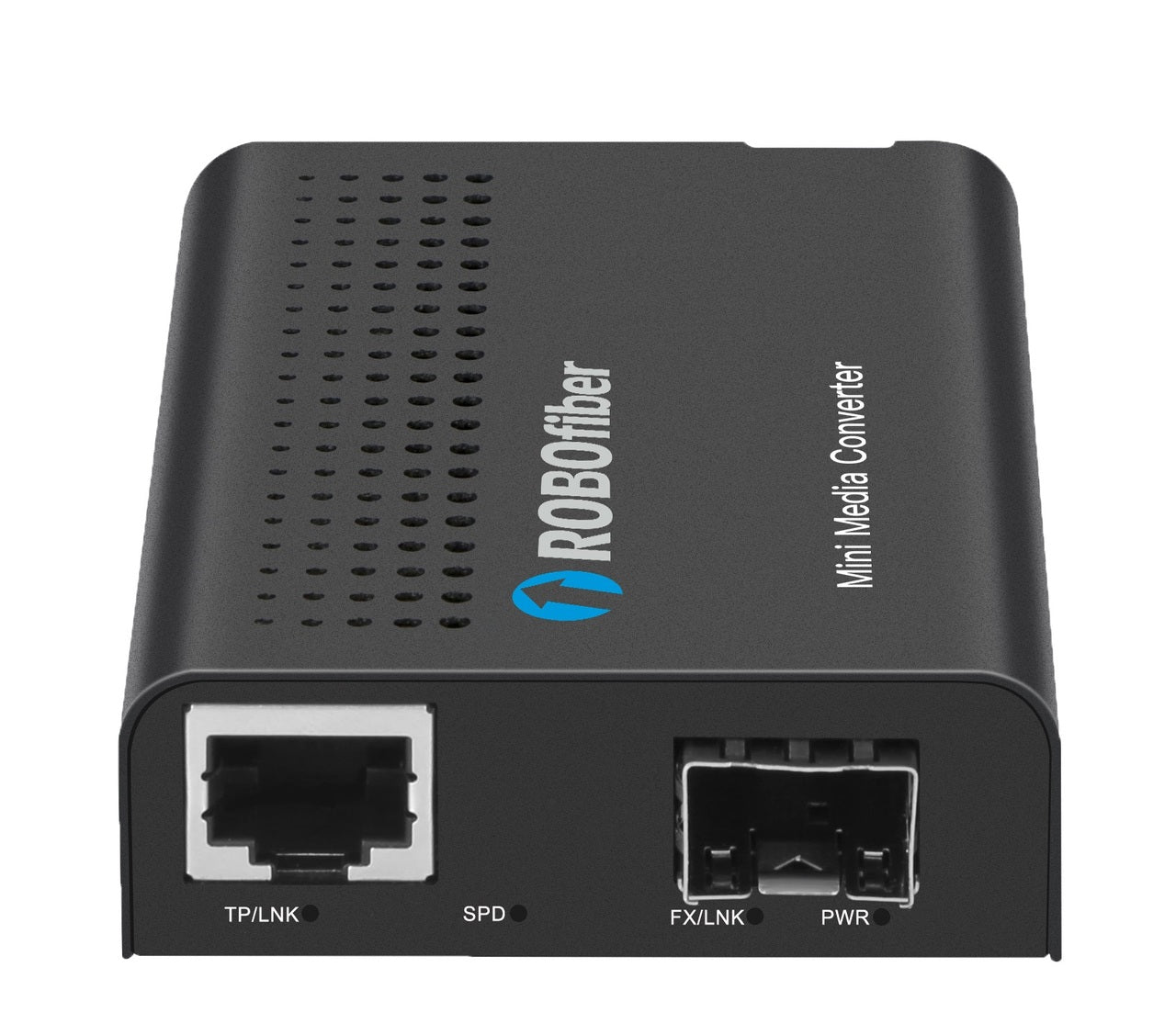

| Front LEDs: | PWR, Fiber Link, TP Link, Speed |

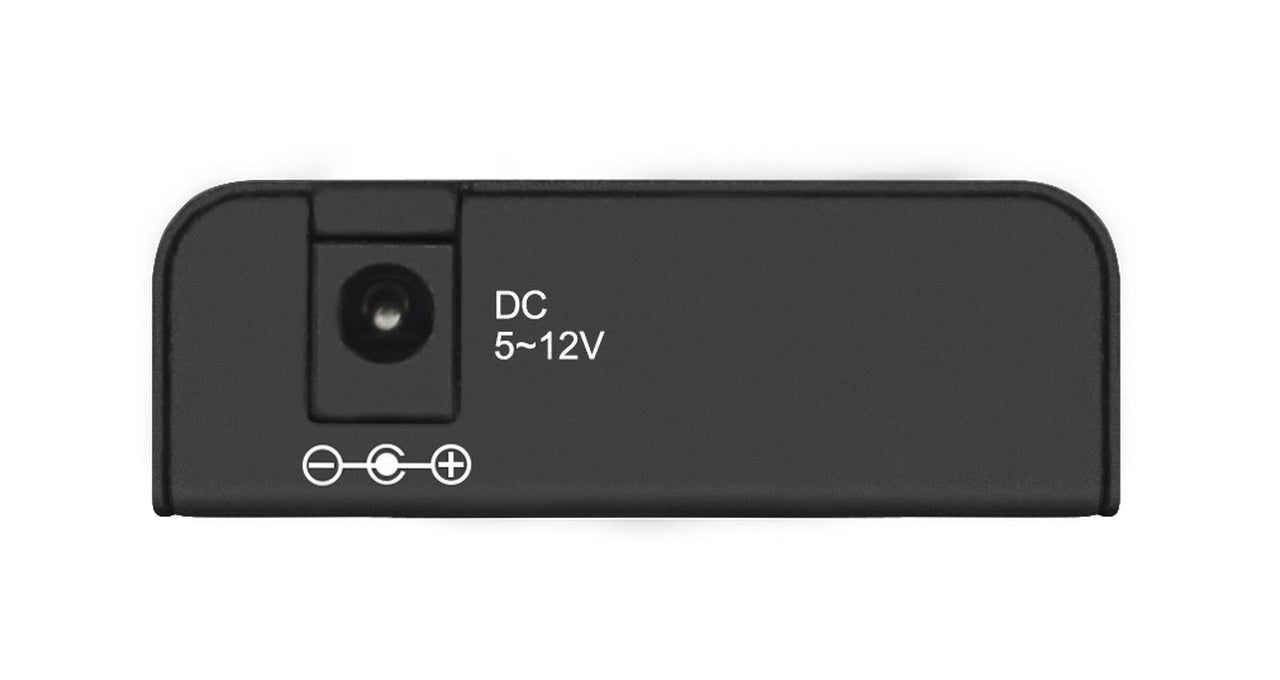

| Power: | External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug AC 90-240V power adapter is included in carton package |
| Temperature: | 0~50°C (Operating); -30~70°C (Storage) |
| Humidity: | 10-85% non condensing (Operating); 0-90% (Storage) |
| Consumption: | less than 4W |
| Dimensions(WxDxH): | 60mm x 90mm x 20mm |
| Weight: | 180g (without AC adapter) |
| Compliance: | FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001 |
| MTBF: | 65,000 hours |
