MPO 12 Fiber Singlemode Test System With 1550nm Light Source
MPO Test Set 12 Fiber Singlemode, Singlemode Power Meter with 1550nm Light Source

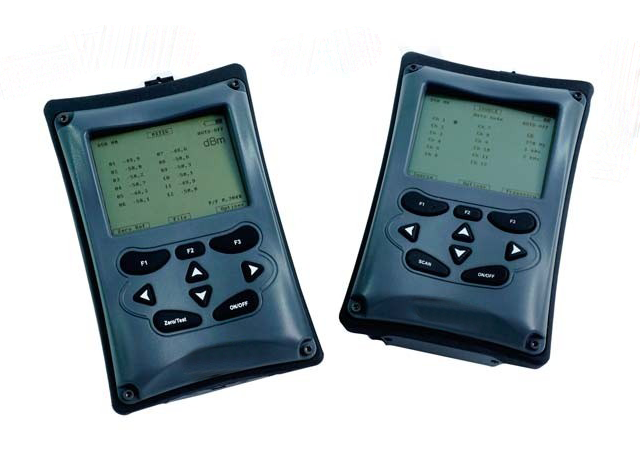

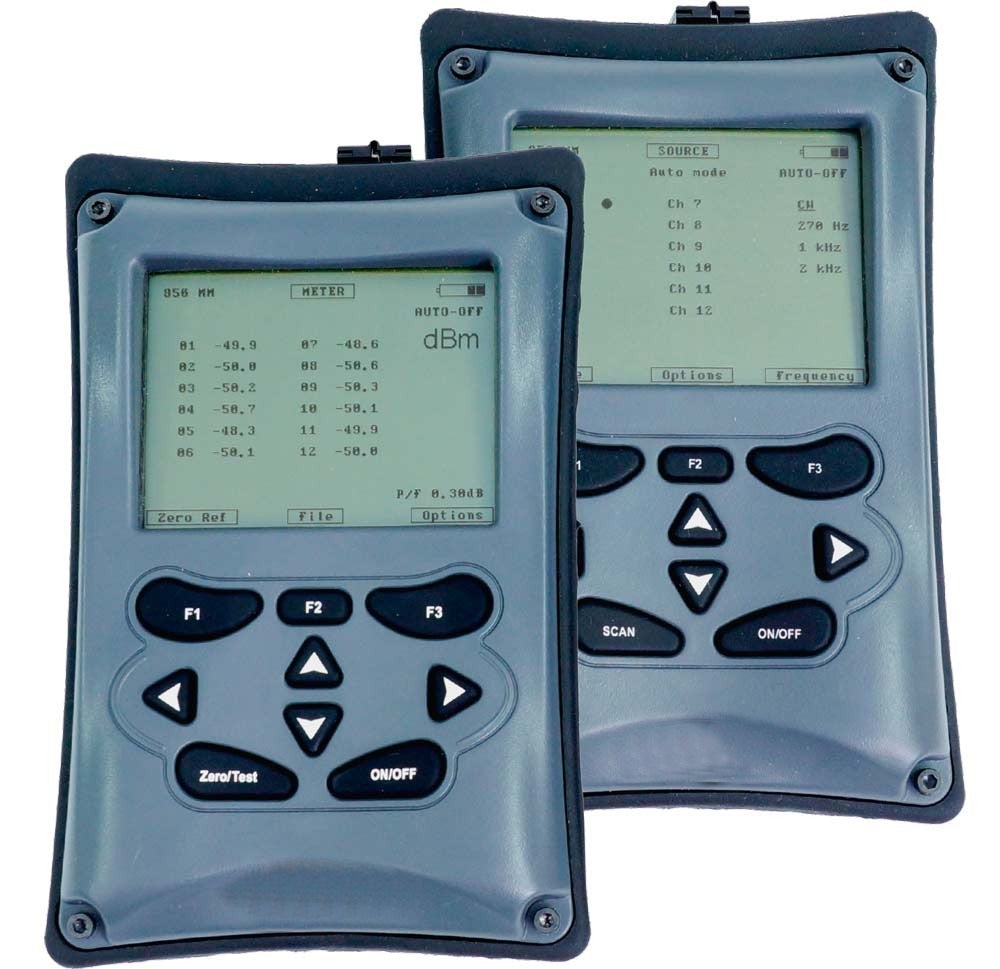

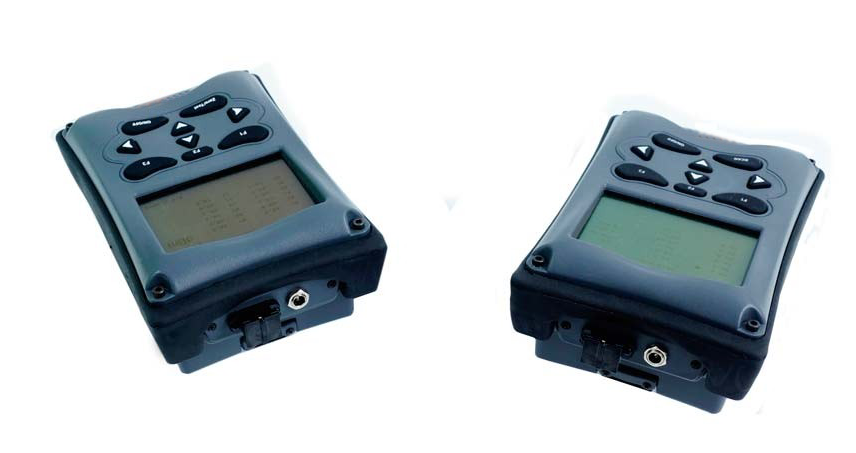

The 12 fiber MPO test set, which is available in Multimode or Singlemode configurations, is a two-piece kit that contains a power meter and light source designed to test and certify MPO-style assemblies quickly and easily. This set will provide the user with link attenuation readings over all 12 fibers in less than 15 seconds, and has the ability to verify A, B, C, and 40-Gig polarities. These units will work in virtually any MPO application.
The power meter allows the user to set defined attenuation thresholds and will display a FAIL if any of the 12 fibers exceed the threshold. If all fibers are under the threshold, a PASS will be displayed. The unit can also store up to 1,000 test results that can then be transferred to the PC reporting software via the USB cable included with the test set.
The light source can emit optical signals at a constant rate or with various modulated tones. It is programmed to run
- An automated looped sequence through all 12 fibers
- A manual sequence
- Light up all 12 fibers at once
- Test fibers 1-4 and 9-12 for certain 40G applications
Both the power meter and the light source have an auto-off feature which will power down the unit after 10 minutes of being idle.
- 12 Position Power Meter and 1550nm Light Source
- Pass/Fail Reporting with Customizable Thresholds
- dB/dBm Check Criteria
- Verify A, B, C and 40G Polarities
- Storage for up to 1,000 Test Results
- USB Data Transfer
- PC Reporting Software
Kit Includes 12 Position Power Meter, 12 Position Light Source, 2 MPO Reference Cables (Polarity A), 2 MPO Mating Sleeves and 2 AC Power Adapters
Optional accessories: 1 meter LC to MPO breakout cable, MPO gender changing tool.
• Comfortable hand-held design
• Can store up to 1,000 test results
• Test results transferable to PC reporting software (PDF)
• Customizable pass/fail thresholds
• Auto turn-off option
• (2) Type A reference cords with mating sleeves included
• Light Source can be operated in Auto mode, or Manual mode,
All On
• Available in rugged case design
• Optional gender change tool available
SPECIFICATIONS
Operating Temperature -10°C to + 50°C
Storage Temperature -20°C to + 50°C
Power Meter
Unit of Measurement: Power/Insertion Loss dBm/dB
Detector Type: 12 InGaAs Photodiodes ( λ ; range 800nm to 1700nm)
Calibrated Wavelengths: 1550nm SM Version
Dynamic Range: +3.0 dBm to -50dBm
Resolution: 0.01dBm/dB
Accuracy: ±0.15dBm/dB
Polarity Detection: A, B, C & 40G
Test Storage Locations: 999
Data Transfer: USB Serial Cable (via USB Mini)

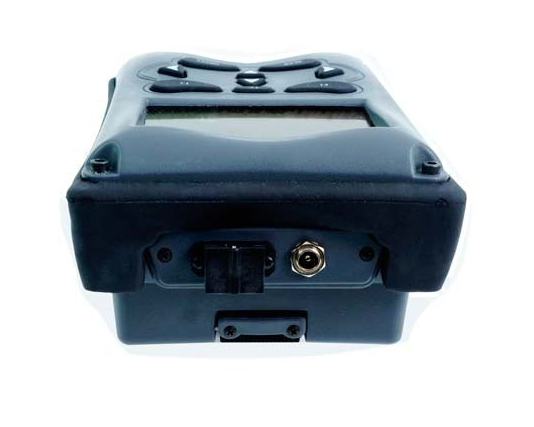

Optical Connector: Singlemode - MPO male APC (compatible with 9um) (Both SM and MM units have self closing bulkhead)
Power Requirements: 1 Amp/12 V DC Charger ( using 120V /240 AC adapter)
Battery: 8 NiMH rechargeable batteries (2100mAh)
Battery Life: 6 Hours on full charge(without backlight)
Battery Charge Time: Full Charge - 3 Hours
Automatic Power Off: 10 minutes - Default on; user selectable
Size: 7.25” x 4.5” x 2.75”
Weight: 1.9 lbs
MPO TEST SET
Light Source
Lasers: Singlemode: 1310 nm or 1550 nm
Output Power: Single mode < -1.0 dBm (9/125 fiber) ; -4.0dBm Typical
Modulation Modes: Continuous Wave; 270Hz, 1 KHz, 2KHz
Power Requirements: 1 Amp / 12 V DC Charger ( using 120V /240 AC adapter)
Battery: 8 NiMH rechargeable batteries (2100mAh)
Battery: Life1 6 Hours on full charge (without backlight)
Battery Charge Time: Full Charge - 3 Hours
Stability: ±0.3dBm/dB
Automatic Power Off: 10 minutes - Default off; user selectable
Size: 7.25” x 4.5” x 2.75”
Weight: 1.9 lbs
Laser Type Class: 3B
SPECIFICATION FOR METER AND SOURCE ARE SAME AS ABOVE WITH EXCEPTION TO:
Size: 8 x 6 x 4 Inches
Weight: 3 Pounds
Water Resistance: 30 Minutes in up to approx. 3 Feet (1 Meter) in water (w/cover closed)
MPO TEST SET
ORDER INFORMATION
F1850MPO: MPO 12 Fiber Test Set-MM Power Meter & 850nm Source
F11310MPO: MPO 12 Fiber Test Set- SM Power Meter & 13100nm Source
F11550MPO: MPO 12 Fiber Test Set-SM Power Meter & 1550nm Source
F1850MPOR: Rugged MPO 12 Fiber Test Set- MM Power Meter & 850nm Source
F11310MPOR: Rugged MPO 12 Fiber Test Set- SM Power Meter & 1310nm Source
F11550MPOR: Rugged MPO 12 Fiber Test Set- MM Power Meter & 1550nm Source
Individual Units
9400-0002SM1310LS: 1310nm SM MPO Light Source only
9400-0002SM1550LS: 1550nm SM MPO Light Source only
9400-0004SMPM: MPO SM Power Meter (1310nm/1550nm)
9400-0001MMLS: MPO MM Light Source (850nm)
9400-0003MMPM: MPO MM Power Meter (850nm)
All Test Sets include Power meter, light source, two type “A” reference cords, mating sleeves, and PC reporting software and carrying case
ACCESSORIES
MPOACCESSORYKITMM
MPO Accessory Kit for Multimode OM3
MPO Accessory Kit includes: IBC MTP/MPO
Cleaner, US Conec MTP gender change tool and mating sleeves & MM OM3 Reference Cord
MPOACCESSORYKITSM
MPO Accessory Kit includes: IBC MTP/MPO
Cleaner, US Conec MTP gender change tool and mating sleeves & SM Reference Cord
F1EFRC-OM3: OM3 Encircled Flux Reference Cord
18814: MTP Pro Field Tool - Gender Changing Tool
