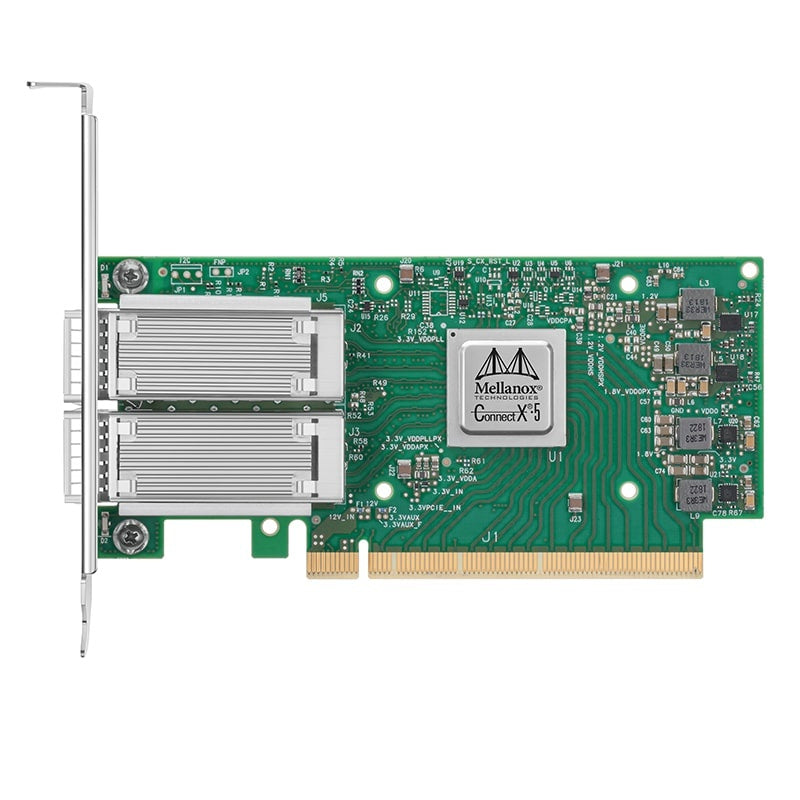

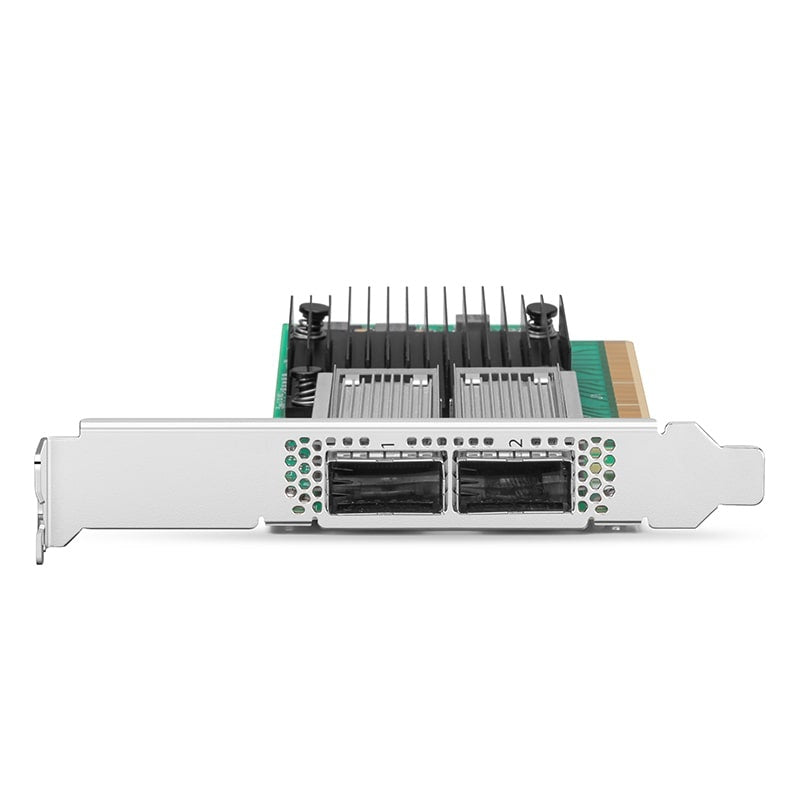

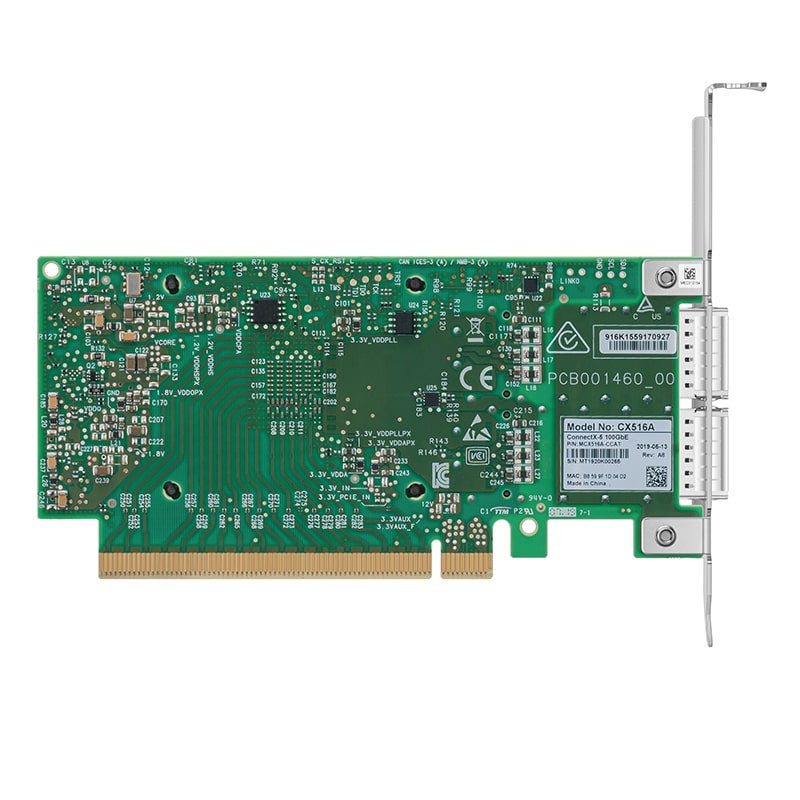

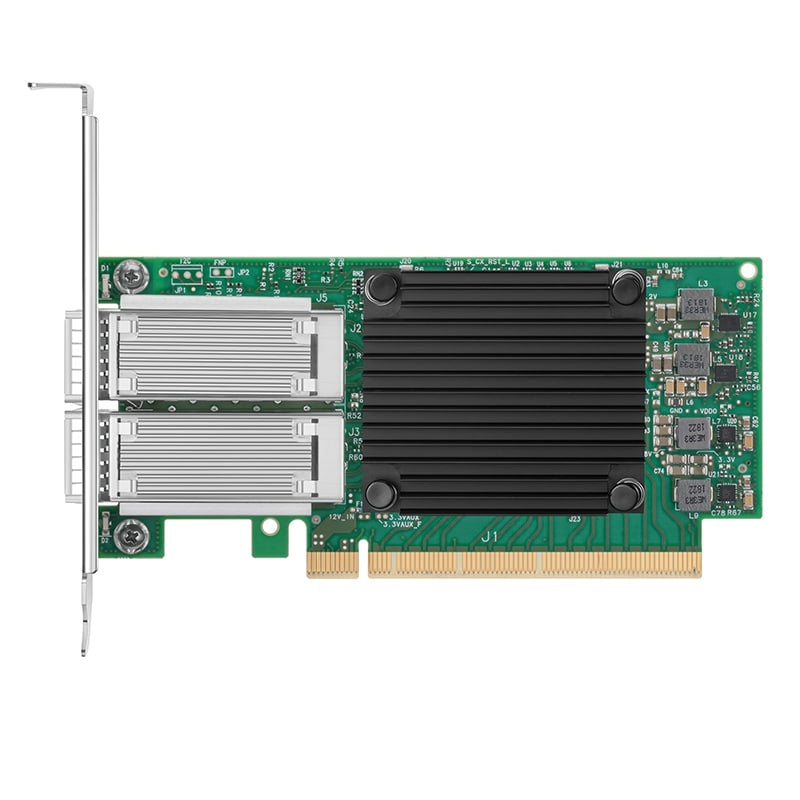

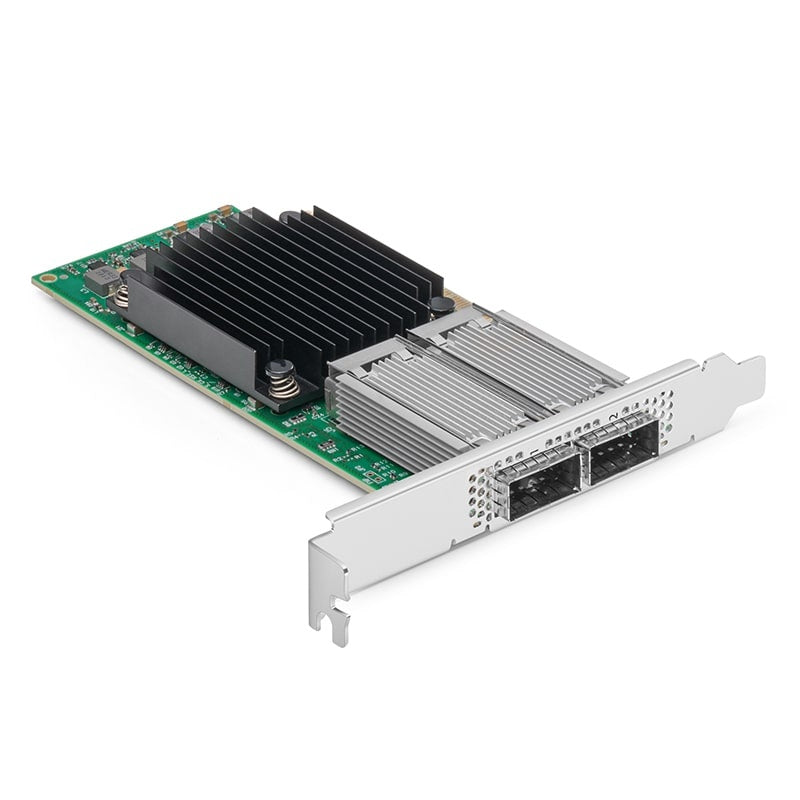

NVIDIA Mellanox FS-MCX516A-CCAT ConnectX®-5 EN Network Interface Card, 100GbE Dual-Port QSFP28, PCIe3.0 x 16, Tall&Short Bracket

ConnectX-5 MCX516A-CCAT Ethernet network interface card provides two ports of 100GbE connectivity, 750ns latency, up to 148 million messages per second (Mpps). For storage workloads, the 100 Gigabit Ethernet adapter card delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads to reduce CPU resource consumption and drive extremely high packet rates and throughput.

This boosts data center infrastructure efficiency and provides the highest performance and most flexible solution for Web 2.0, Cloud, Data Analytics and Storage platforms.
Note: PCIe 3.0 x16 bus can supply a maximum bandwidth of 128Gb/s only (=16 * 8GT/s, including overhead), and therefore cannot support 200Gb/s when both network ports of MCX516A-CCAT run at 100Gb/s.

Specifications

• Brand: Nvidia

• Technology: Ethernet

• Port: Dual-Port QSFP28

• Supported Ethernet Speeds: 100/50/40/25/10/1GbE

• Host Interface: PCIe 3.0 x16

• Controller: Mellanox Technologies MT28800 Family ConnectX-5

• Link Rate: 8.0 GT/s

• Cabling Type: QSFP28 Transceiver, DAC and AOC

• RDMA: Yes

• OS Support: Windows, RHEL/CentOS, VMware, FreeBSD, OFED and WinOF-2

• Size (Low Profile): 2.71 in. x 5.6 in. (68.90mm x 142.24 mm)

• Bracket Height: Tall&Short

• Operating Temperature: 0 to 55 °C (32 to 131 °F)

• Storage Temperature: -40 to 70 °C (-40 to 158 °F)


Product Highlights

• PCIe 3.0 x 16 Host Interface and 100GbE Dual-Port Transmission

• Accelerated Switching and Packet Processing (ASAP²) for Virtual Switches/Routers

• Low Latency RDMA over Converged Ethernet (RoCE) Delivers High-performance Services

• Industry-leading Data Plane Development Kit (DPDK) performance delivers more
• throughput with less CPU cycles.

• Open vSwitch Offloads Reduce CPU Resource Consumption

• Support Network Virtualization Offloads Including Geneve, VXLAN and NVGRE

• End-to-end QoS and Congestion Control to Anticipate and Eliminate Congestion

• Support Windows, RHEL/CentOS, VMware, FreeBSD, OFED and WinOF-2
• Adapter Type: PCle NIC
• Data Rate: 100GbE
• Interface Type: QSFP28
• Ports: Dual
• Host Interface: PCIe 3.0x 16
• Technology: Ethernet
• RoCE: YES
• NVMe-oF: YES
• DPDK: YES
• ASAP²: YES
• SR-IOV: YES

Product Spotlights

CPU Offloads

• RDMA over Converged Ethernet (RoCE)
• TCP/UDP/IP stateless offload
• LSO, LRO, checksum offload
• RSS (also on encapsulated packet), TSS, HDS, VLAN and MPLS tag insertion/stripping, Receive flow steering
• Data Plane Development Kit (DPDK) for kernel bypass applications
• Open VSwitch (OVS) offload using ASAP²
• Intelligent interrupt coalescence
• Header rewrite supporting hardware offload of NAT router

Storage Offloads

• NVMe over Fabric offloads for target machine
• T10 DIF
• Signature handover operation at wire speed, for ingress and egress traffic
• Storage protocols, SRP, iSER, NFS RDMA, SMB Direct, NVMe-oF

Hardware-Based I/O Virtualization

• Mellanox ASAP²
• Single Root IOV
• Address translation and protection
• VMware NetQueue support
• Virtualization hierarchies
• Configurable and user-programmable QoS
• Guaranteed QoS for VMs

Connectivity Solutions

End-to-End RDMA over Converged Ethernet (RoCE) Solution
ConnectX-5 provides top-tier RDMA over Converged Ethernet (RoCE) capabilities, ensuring scalable, resilient, and easily deployable RoCE solutions.

Dual-Port Adapter Supporting 100Gb/s Ethernet
ConnectX-5 NICs deliver high-performance 100Gb/s connectivity, enhancing data center efficiency for Web 2.0, cloud, data analytics, and storage solutions.

Advanced Networking and Security
It supports SR-IOV and VirtIO hardware virtualization, optimizing performance, offloading cloud networking workloads, freeing CPU cores, and reducing total cost of ownership.
