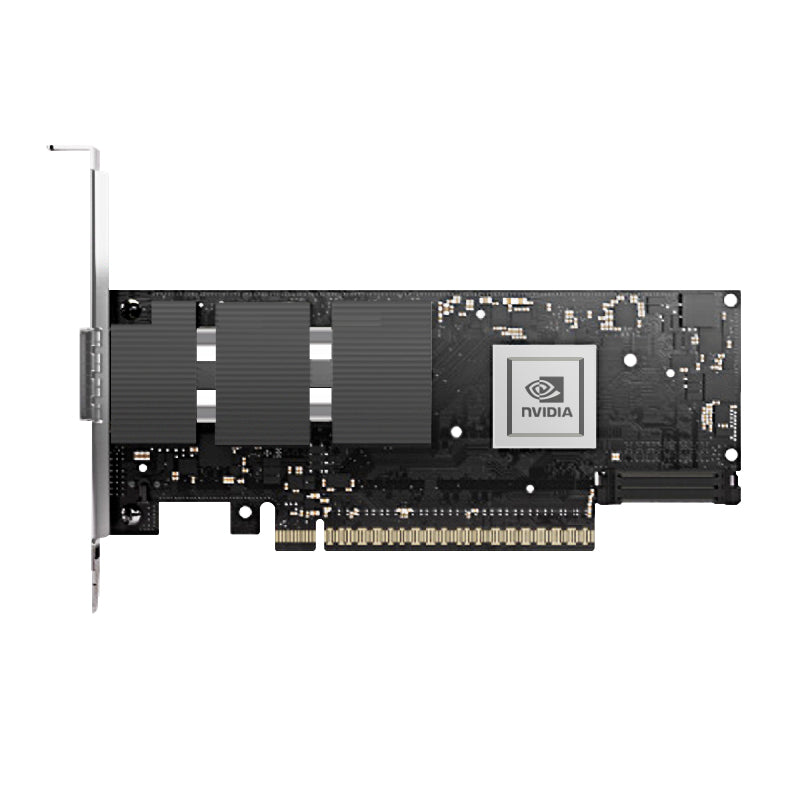

NVIDIA Mellanox MCX75510AAS-NEAT ConnectX®-7 InfiniBand Adapter Card 400GbE/NDR, Single-Port OSFP, PCIe 5.0 x 16 , Tall Bracket

ConnectX-7 InfiniBand cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing one ports of 400Gb/s for InfiniBand, ultra-low latency and 330 to 370 million messages per second, ConnectX-7 InfiniBand cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications.

In addition to all the existing innovative features of past versions, ConnectX-7 cards offer a number of enhancements to further improve performance and scalability.

ConnectX-7 supports NDR, NDR200, HDR, HDR100, EDR, FDR, and SDR InfiniBand speeds.

Specifications

• Brand: Nvidia

• Technology: InfiniBand

• Ports: Single

• Host Interface: PCIe 5.0x 16

• Data Rate: NDR/NDR200/HDR/HDR100/EDR/FDR/SDR

• Interface Type: OSFP

• SR-IOV: Yes

• RDMA: Yes

• Adapter Card Size（W×D）: 6.6"x2.71" (167.65mmx68.90mm)

• Bracket Height: Tall & Short

• Operating Temperature: 0 to 55 °C (32 to 131 °F)

• Storage Temperature: -40 to 70 °C (-40 to 158 °F)

• Supported operating systems: Linux, Windows, VMware

• RoHS Compliant: Yes

Product Highlights

• PCIe 5.0 x16 Host Interface and 400Gb/s Single-Port Transmission

• RDMA Delivering Low Latency and High Performance

• Block-level XTS-AES Mode Hardware Encryption Saving Latency and CPU Utilization

• Best-in-class Packet Pacing with Sub-nanosecond Accuracy

• End-to-end QoS and Congestion Control to Anticipate and Eliminate Congestion

• Increased I/O Consolidation, Reducing Data Center Costs and Complexity

• Smart Interconnect for x86, Power, Arm, GPU and FPGA-based Compute and Storage Platforms

Connectivity Solutions

InfiniBand Ultra-Low Latency for HPC Networking
As a key component of the NVIDIA® Quantum-2 InfiniBand platform, the ConnectX®-7 smart host channel adapter (HCA) delivers top networking performance.

Single-Port Adapter Supporting 400Gb/s InfiniBand
The ConnectX-7 InfiniBand adapter offers ultra-low latency, 400 Gb/s throughput, and NVIDIA In-Network Computing, providing acceleration and scalability for HPC, AI, and hyperscale cloud data centers.

Advanced Networking and Security
It supports SR-IOV and VirtIO hardware virtualization, optimizing performance, offloading cloud networking workloads, freeing CPU cores, and reducing total cost of ownership.

Unlock Seamless Network Performance with Compatibility Testing
["Through comprehensive testing procedures, we ensure seamless compatibility with mainstream servers, guaranteeing the long-term reliability and stability of the entire network infrastructure."]
