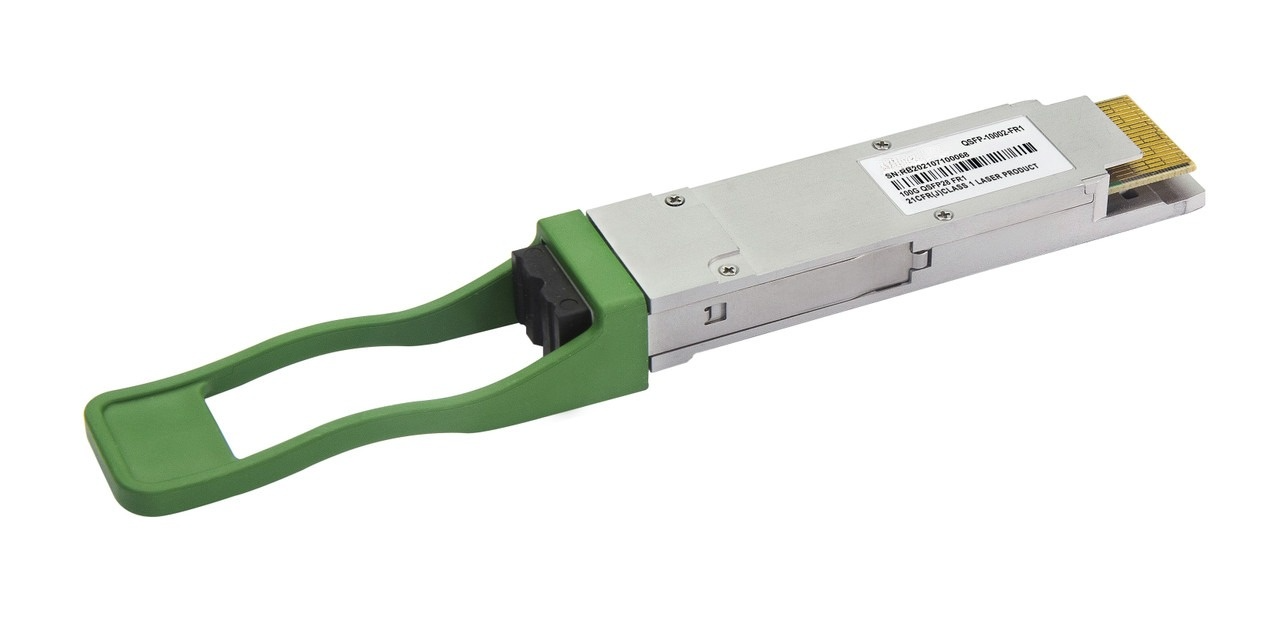

QSFP28 100G FR1 optical transceiver, single-mode, single lambda 1310nm, 2Km reach over SMF, QSFP-10002-FR1
Product description
The QSFP-10002-FR1 is a single lambda short reach single-mode 100G QSFP28 optical module transceiver compatible with the 100GBase-FR1 specifications.
It uses a single 1310nm EML laser at 1310nm with a PIN receiver. There are 4x 25G NRZ electrical channels in the interface for a total speed of 100G available on the QSFP28 interface.
Unit can reach up to 2km distances on G.652 types of SMF.
The transceiver has been tested and found compatible on 100G QSFP28 ready Ethernet switches from Arista, Cisco, Juniper, and Edge-Core. Transceiver operates into any 3rd party vendor equipment that follows the MSA open slot standard.
QSFP-10002-FR1 100G QSFP28 SMF module specifications
| Form factor | QSFP28 |
| Speed | 103.125Gb/s aggregate bit rate |
| Optical connector | dual LC |
| Operating distance | 2Km with FEC |
| Power | single 3.3V |
| Compliance | QSFP28 MSA, RoHS 2.0 |
| Operating mode | hot plug 38 pin electrical interface |
| Fiber type | Single-mode 9/125um, two strands |
| Wavelength | 1310nm, EML laser, 50Gbps PAM |
| Digital Diagnostic | Yes (SFF-8472, SFF-8636 compliant) |
Additional information on QSFP-10002-FR1 transceiver:
PDF Datasheet
