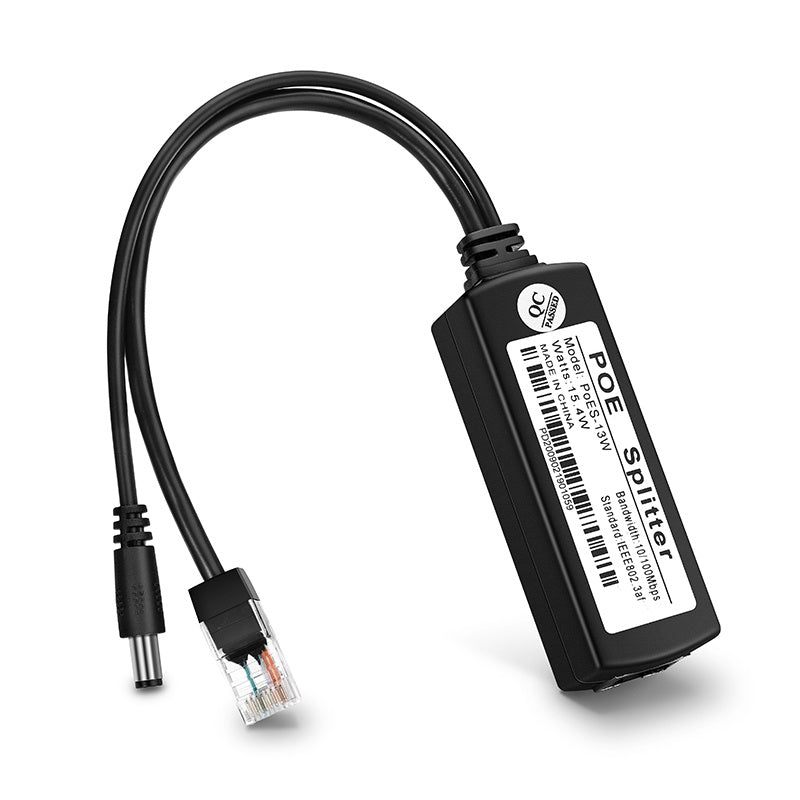

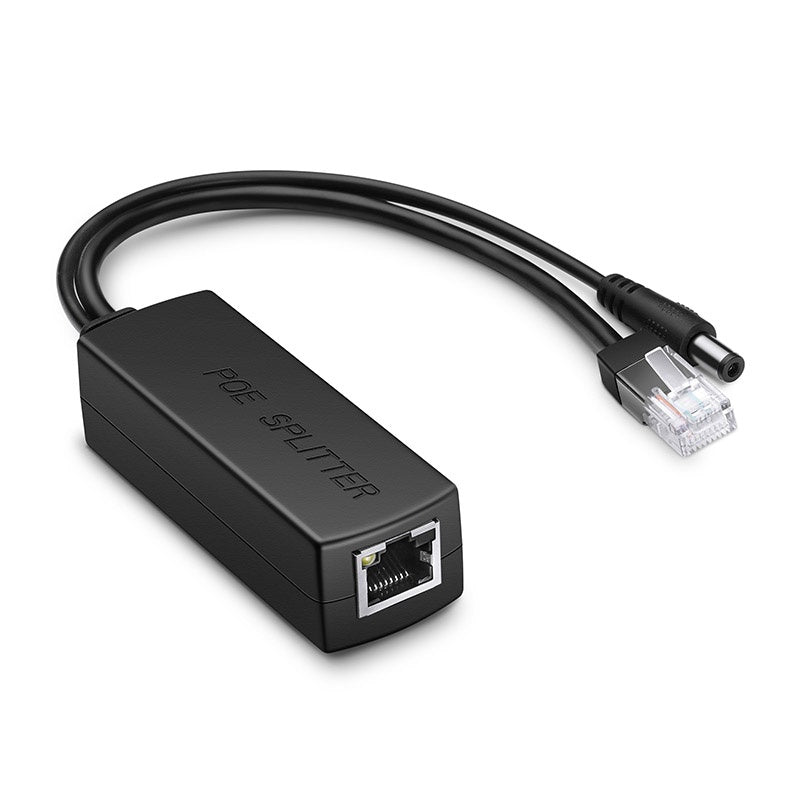

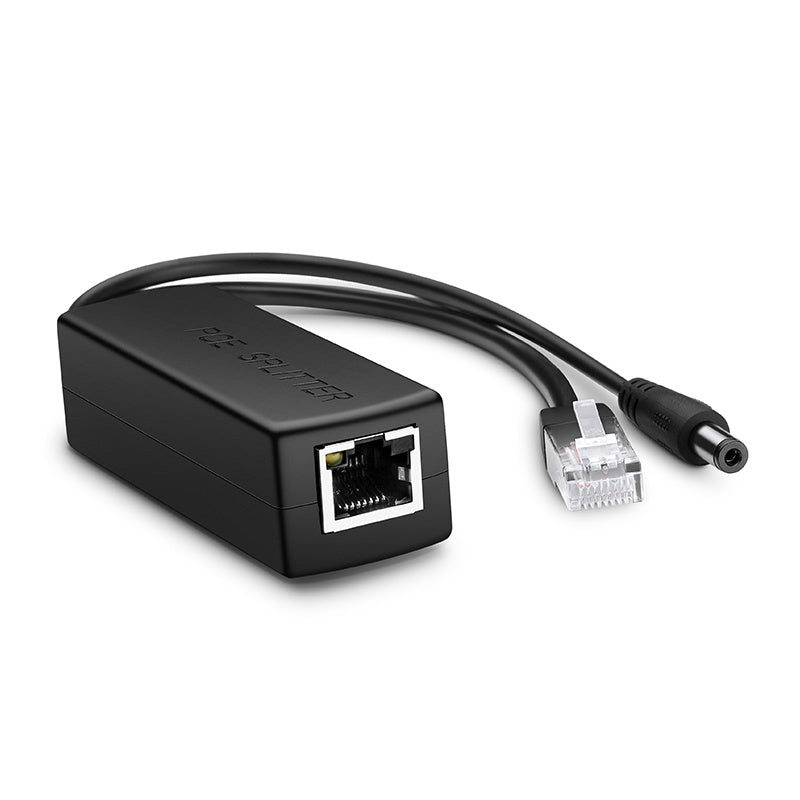

Single Port 10/100M PoE Splitter Cable with DC 12V Output, 13W

10/100M PoE splitter cable meets the standard IEEE802.3af also it can supply 12V DC power for Non-PoE device. It is compatible with both End-Span (1,2+, 3,6-) and Mid-Span (4,5+, 7,8-).

Support protection for short circuit, over-current and over-temperature.

With two in one design, the PoE splitter cable could be used to products that support external PoE. ABS plus PC shell makes it more durable.

Product Highlights

• Complies with IEEE 802.3af

• Plug and Play, Requires No Configuration

• Designed to Fit into the Devices that Don't Support PoE in a PoE Environment

• Adjustable Voltage Output Supports 5V, 9V, or 12V Devices

• Splits 10/100M PoE Signal into Separate Power and 100M Ethernet Data Sources

• High Voltage Isolation: 1500V (Input Stage to Output Stage)

• Support Protection for Short Circuit, Over- current & Over-temperature


Specifications

• Standards: IEEE 802.3af

• Data Transfer Rate: 100 Mbps (full duplex/half duplex)

• Output Voltage: 12VDC, 1.1A Max

• Output Rating: 13W

• Input Voltage: 44-57VDC

• PoE Power Supply Type: Support Both Mid-Span and End-Span

• Operating Temperature: -40°F to 140 °F (-20 °C to 60 °C)

• Operating Humidity: Max. 80% non-condensing

• Dimensions (HxWxD): 0.93''x0.98''x3.23'' (23.5x25x82mm)

• Weight: 70 g (2.5 oz.)

Connectivity Solutions

100M Active PoE Splitter
The splitter splits a PoE network cable from a PoE switch into separate power and 100M Ethernet source, this is ideal for devices that don't support PoE in a PoE environ

Plug and Play
Reduces the need for extra outlets and extension cables and saves deployment cost and labor efforts as well.
