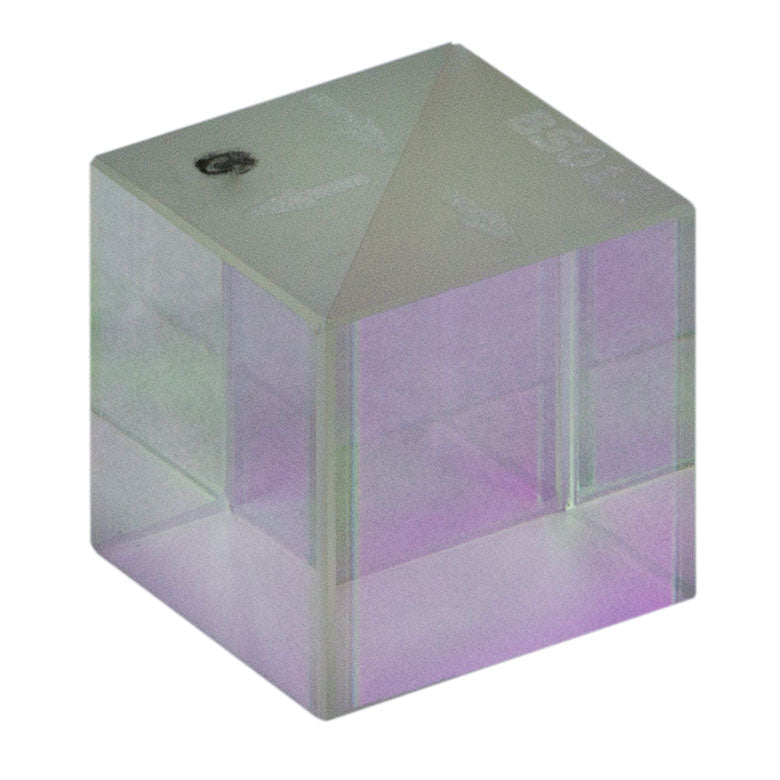

T-BS012 - 50:50 Non-Polarizing Beamsplitter Cube, 1100 - 1600 nm, 10 mm

Fosco Connect Part No.: T-BS012

  • $ 330.00 or



T-BS012 - 50:50 Non-Polarizing Beamsplitter Cube, 1100 - 1600 nm, 10 mm

Product Drawing

  • Broadband AR-Coated Faces for 1100 - 1600 nm
  • Broadband Beamsplitter Coating on Internal Diagonal Surface
  • 10:90, 30:70, 50:50, 70:30, or 90:10 (R:T) Split Ratio
  • Sizes from 5 mm to 2" (See Below for Details)
  • N-BK7 Substrate
  • Size 10 mm Cube
General Specifications
Wavelength Range 1100 - 1600 nm
AR Coating (All Four Surfaces, Click for Plot) Ravg < 0.5% at 0° AOI from 1100 - 1600 nm
Substrate Material N-BK7
Dimensional Tolerance +0.0/-0.2 mm
Reflected Beam Deviation 90° ± 5 arcmin
Surface Quality 40-20 Scratch-Dig



Item # T-BS012
Cube Side Length 10 mm
Clear Aperture >8.0 x 8.0 mm

Transmitted Wavefront Error

  • At 633 nm
<λ/4
Transmitted Beam Deviation 0° ± 5 arcmin

Overall Performance

  • Over the 1100 - 1600 nm Coating Range, 0° AOI, Unless Otherwise Specified
Tabs = 47 ± 10%, Rabs = 47 ± 10%,
Tabs + Rabs > 83%,
Tavg + Ravg > 88%,
|Ts - Tp| < 10%, and |Rs - Rp| < 10%
Damage Threshold
Pulsed: 0.25 J/cm2 (1542 nm, 10 ns, 10 Hz, Ø0.282 mm)
CWc: 50 W/cm (1542 nm, Ø1.030 mm)
