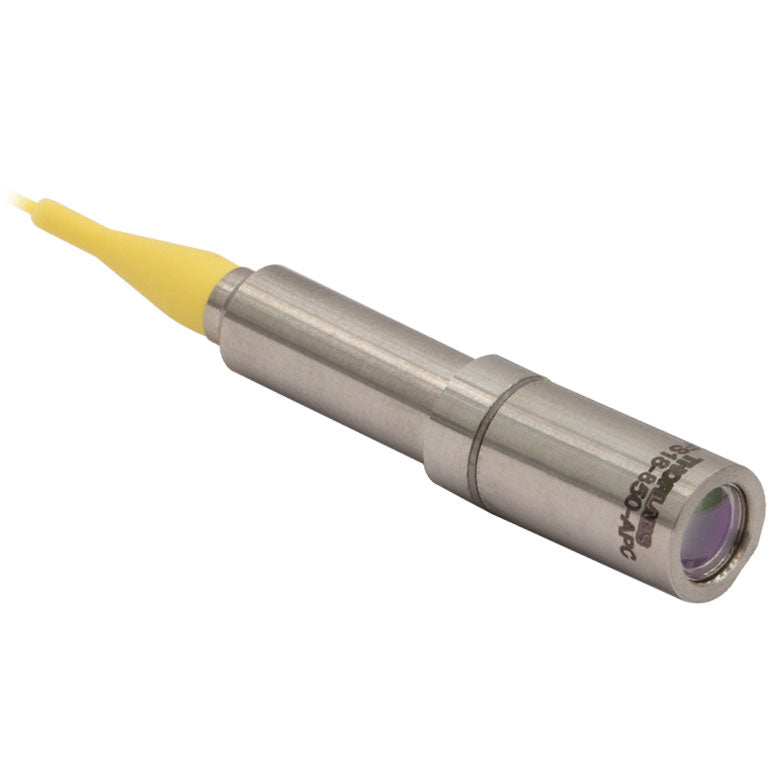

T-CFS18-850-APC - SM Pigtailed Aspheric Collimator, EFL 18.45 mm, 850 nm, FC/APC
T-CFS18-850-APC - SM Pigtailed Aspheric Collimator, EFL 18.45 mm, 850 nm, FC/APC
- Compact Fiber Collimation Packages
- SM Fiber Pigtail with FC/PC or FC/APC Connectors Available
- Non-Magnetic Stainless Steel Housing
- Alignment Wavelength 850 nm
- Lens AR Coating
650 - 1050 nm Ravg < 0.5% - Waist Diameter 3.99 mm
- Waist Distance 18.32 mm

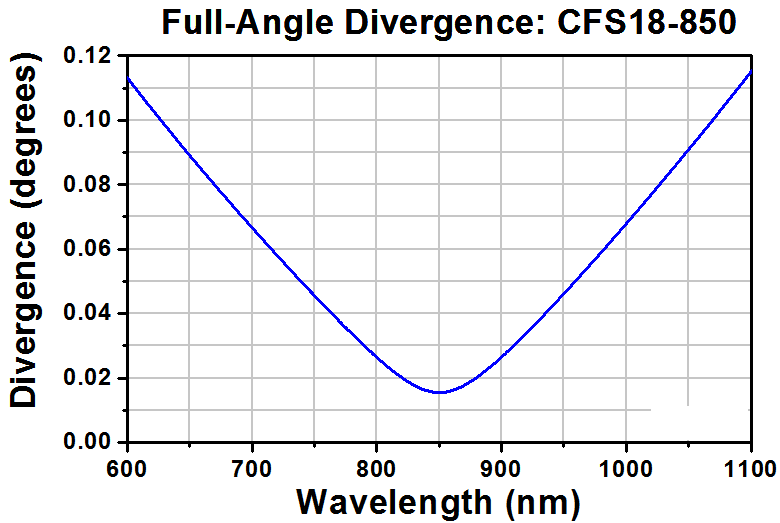

- Full-Angle Divergence 0.02° +0.01°/-0.00° (0.27 mrad +0.17/-0.00 mrad)
- Theoretical Divergence
- NA Lens 0.15
Focal Length at Alignment Wavelength 18.45 mm- Clear Aperture 5.5 mm
- Housing Outer Diameter 9.0 mm
- Connector Type 2.0 mm Narrow Key FC/APC
- Fiber Type SM800-5.6-125
- Fiber Length 1 meter
- Insertion Loss <0.2 dB
- Return Loss 55 dB
- Mode Field Diameter 5.0 µm @ 850 nm
