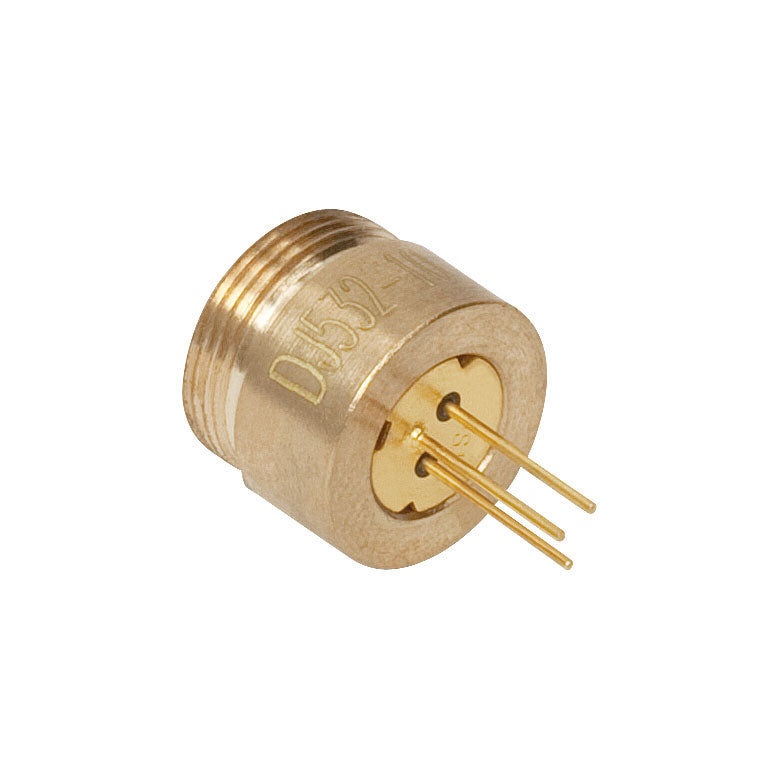

T-DJ532-10 - 532 nm, 10 mW, A Pin Code, DPSS Laser

T-DJ532-10 - 532 nm, 10 mW, A Pin Code, DPSS Laser

Fosco Connect Part No.: T-DJ532-10

$ 280.00 or

T-DJ532-10 - 532 nm, 10 mW, A Pin Code, DPSS Laser

532 nm Output
10 mW or 40 mW Output Power (CW)
12 mrad Beam Divergence
M9 x 0.5 Threaded Housing
Same Pin Spacing as Standard Ø5.6 mm Laser Diodes

	Min	Typical	Max
Wavelength	531 nm	532 nm	533 nm
Optical Output Power	-	10 mW	20 mW
Operating Current @ P_o^a	-	220 mA	250 mA
Operating Voltage @ P_o^a	-	1.9 V	2.2 V
Slope Efficency^a	0.1 W/A	0.2 W/A	-
Beam Divergence, Full Angle	-	12 mrad	15 mrad
Pin Code	A
LD Reverse Voltage (Max)	2 V
Operating Temperature	20 to 25 °C
Storage Temperature	-30 to 70 °C
Pin Diagram^b
