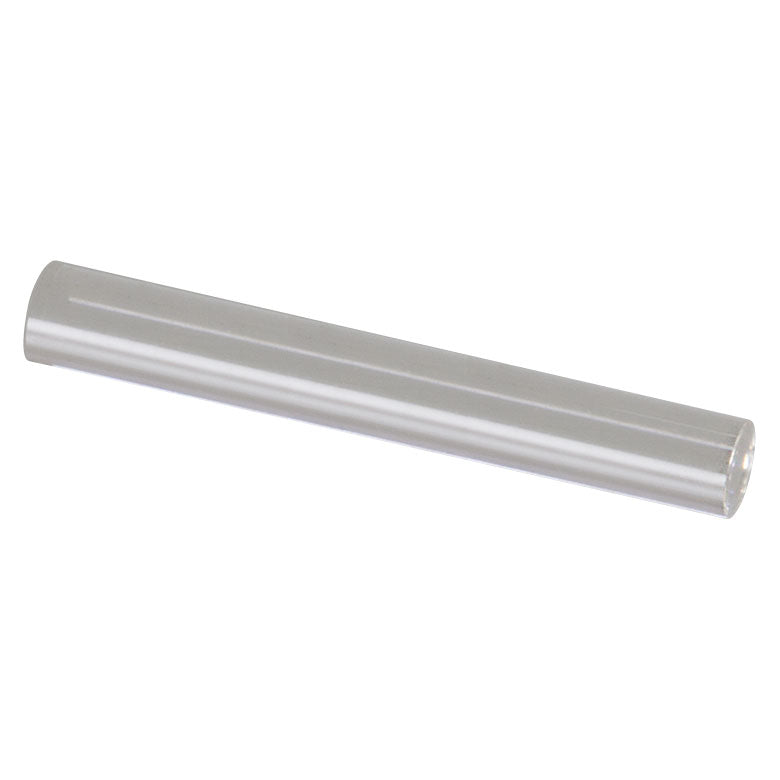

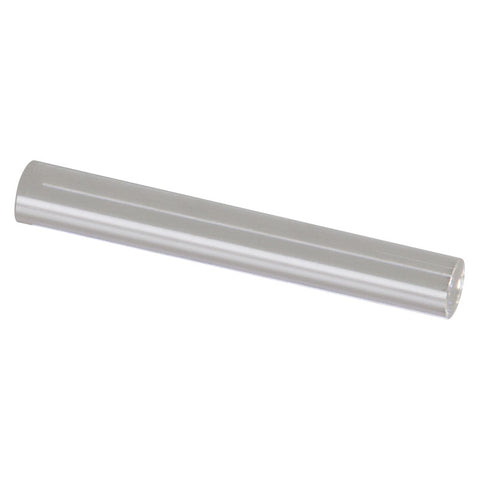

T-G1P11 - GRIN Lens for Imaging, Ø1.0 mm, L = 8.091 mm, WD = 0.20 mm (Water and Dry), NA = 0.5, Uncoated
T-G1P11 - GRIN Lens for Imaging, Ø1.0 mm, L = 8.091 mm, WD = 0.20 mm (Water and Dry), NA = 0.5, Uncoated
- Ideal for Widefield and Laser-Scanned Confocal Imaging
- G1P10: Ø1.0 mm and 3.758 mm Long
- G1P11: Ø1.0 mm and 8.091 mm Long
- Working Distance:
- 0.20 mm on Sample Side (Water Immersion)
- 0.20 mm on Objective Side (Dry)
- 0.50 Numerical Aperture in Water
- Use as Implantable Lens Elements for In Vivo Imaging Applications
- Ideal for Widefield, Confocal, or Multiphoton Microscopy
- Ø1.0 mm Uncoated Lenses
- Ø0.5 mm or Ø1.0 mm AR-Coated Lenses for 500 - 1000 nm, or 515 - 670 nm and 900 - 1100 nm

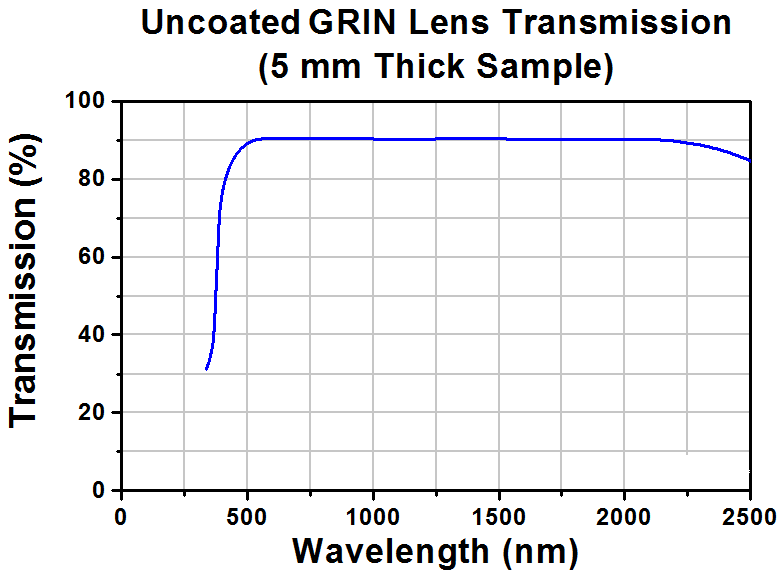

These uncoated GRIN lenses feature a 0.20 mm working distance on both the sample and the objective side. Each lens is 1.0 mm in diameter and ideal to be used in widefield and laser-scanned confocal imaging. The T-G1P10 lens is 3.758 mm long, while the T-G1P11 lens is 8.091 mm long. Each lens provides a large collection angle due to a numerical aperture of 0.50 in water. See the Specs tab for more details on optical properties.
| Item # | T-G1P10 | T-G1P11 | T-G2P10 | T-G2P11 |
|---|---|---|---|---|
| Design Wavelength | 550 nm | |||
|
AR Coating Range (Both Ends) |
N/A | 500 - 700 nm, Ravg < 0.5% 700 - 1000 nm, Ravg < 1.5% |
515 - 670 nm and 900 - 1040 nm, Ravg < 1% 950 - 1100 nm, Ravg < 2.5% |
|

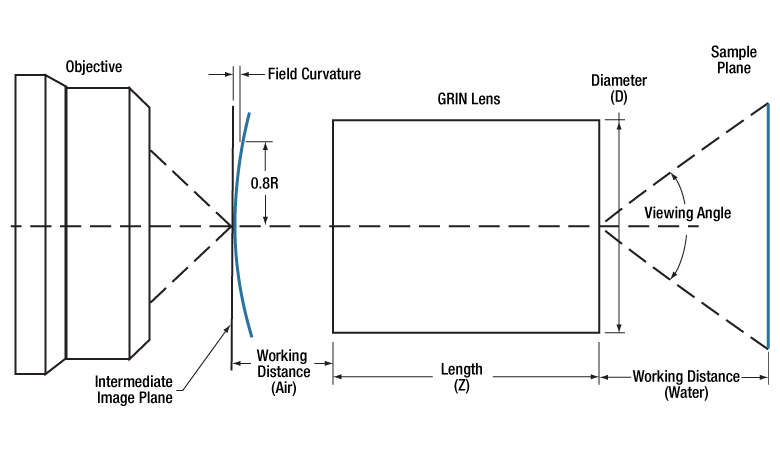

| Working Distance | 0.20 mm on Sample Side (Water Immersion) and on Objective Side (Dry) | 0.25 mm on Sample Side (Water Immersion) 0.19 mm on Objective Side (Dry) |
0.20 mm on Sample Side (Water Immersion) and on Objective Side (Dry) |
|
| Viewing Angle (Max) | 70° | 50° | ||
|

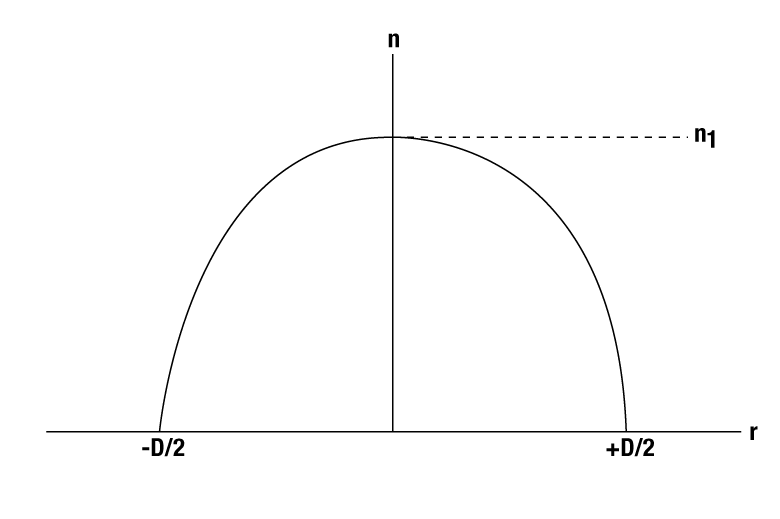

Refractive Index (n1) @ 550 nm |
1.666 | 1.333 | ||
|
Gradient Constant (√A) @ 550 nm |
0.724 mm-1 | 0.782 mm-1 | 1.291 mm-1 | |
|

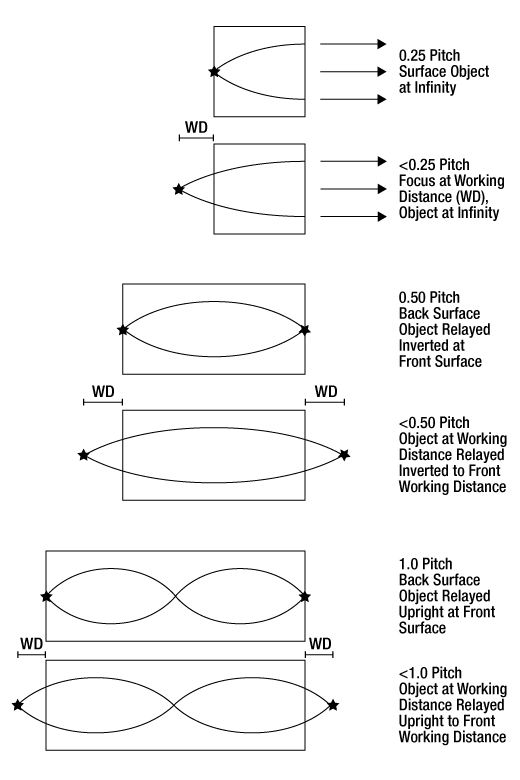

Pitchb (P) @ 550 nm |
0.433 | 0.933 | 0.423 | 0.387 |
| Face Angle | 0° | |||
| Numerical Aperture (NA) in Water | 0.50 | 0.486 | ||
| Magnification | -0.92 | +0.98 | -1 | +0.96 |
| Length (Z) | 3.758 mm ± 0.500 mm |
8.091 mm ± 1.100 mm |
3.400 mm ± 0.085 mm | 1.883 mm ± 0.620 mm |
| Diameter (D) | 1.0 mm +0/-0.03 mm | 1.0 mm +0/-0.05 mm | 0.5 mm +0/-0.03 mm | |
| Field Curvature | 100 µm | 50 µm | ||
| Polarization Preservation | Not Specified | |||
| Protective Coating | SiO2 (Silica) | N/A | ||
|
Operating Temperature |
<350 °C | <200 °C | <350 °C | |
Lens Handling and Care
Handling
A GRIN lens should be handled with stainless steel tweezers, preferably those with a tapered end like our TZ3 optic tweezers, and picked up by firmly grasping the side of the cylinder rather than the flat ends.
Cleaning
Use methyl alcohol as a cleaning solvent when necessary. Acetone may also be used without harm to a GRIN lens, but should be pure enough to not leave a residue on the lens surface.
Storage
For extended periods of time, a GRIN lens should be stored in a "dry box" environment. This entails the use of a desiccant or heat source to prevent humidity from leaching the lens material. For short-term storage (less than a month), the plastic box and foam packing in which the lens is shipped will provide adequate storage, provided the lens is placed securely in the built-in slot to avoid chipping or scratching from other lenses.
