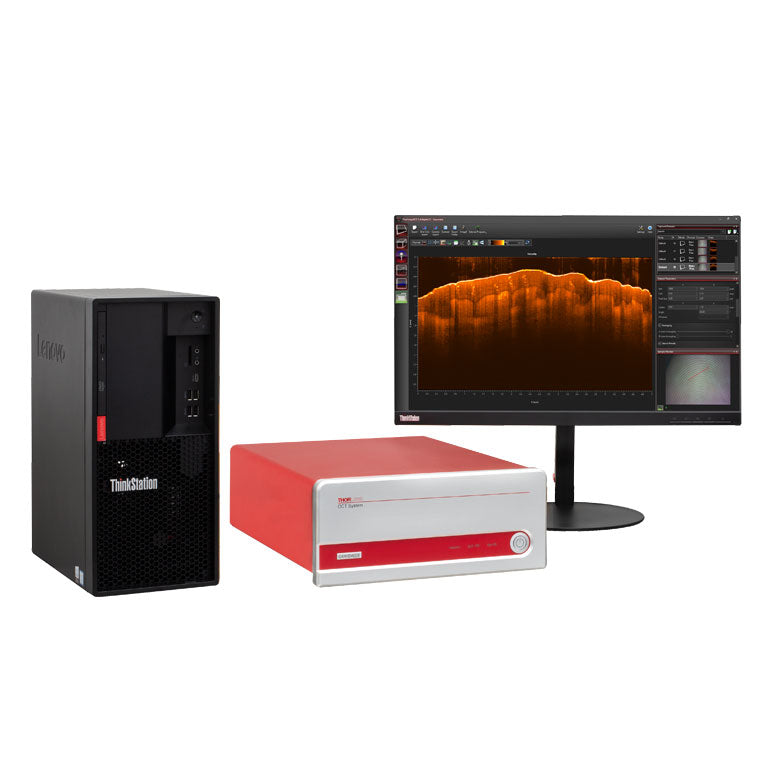

T-GAN312 - Ganymede OCT Base Unit, 880 nm, 6.0 µm Resolution, 1.5 to 80 kHz
T-GAN312 - Ganymede OCT Base Unit, 880 nm, 6.0 µm Resolution, 1.5 to 80 kHz
- Flexibility in Imaging Speed with High- and Very-High-Resolution Performance Options
- Systems with up to 248 kHz A-Scan Rate (See Table Below)
- Fully Configurable Trigger for Integration into Larger Experiments
- Analog Input for Combining Other Data Sources with the OCT Signal
- Internal Hardware Diagnostics for Improved Troubleshooting
- Operating System Windows 10, 64 Bit
- Processor 8 Core, 3.0 GHz
- Memory 32 GB
- Hard Drive 512 GB SSD
- Data Acquisition USB 3.0
- Description High Resolution
- Center Wavelength 880 nm
- Imaging Depth (Air/Water) 3.4 mm / 2.5 mm
- Axial Resolution (Air/Water) 6.0 µm / 4.5 µm
- A-Scan Line Rate 1.5, 5, 10, 20, 40, & 80 kHz
- Sensitivity 89 dB (at 80 kHz) 106 dB (at 1.5 kHz)
- Maximum Pixels per A-Scan 1024
- Compatible Scanners OCTP-900, OCTP-900/M, and OCTG9
