Fosco Connect Part No.: T-GH25-36U

$ 258.00 or

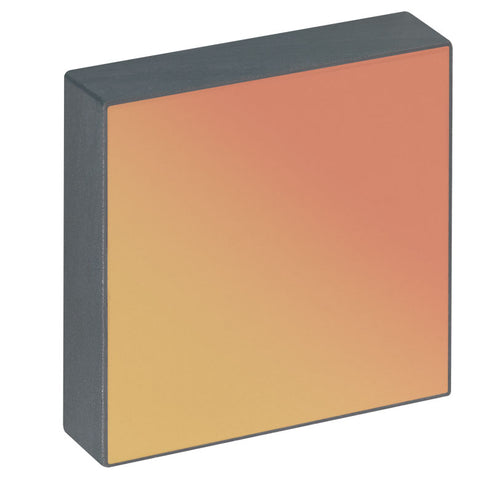

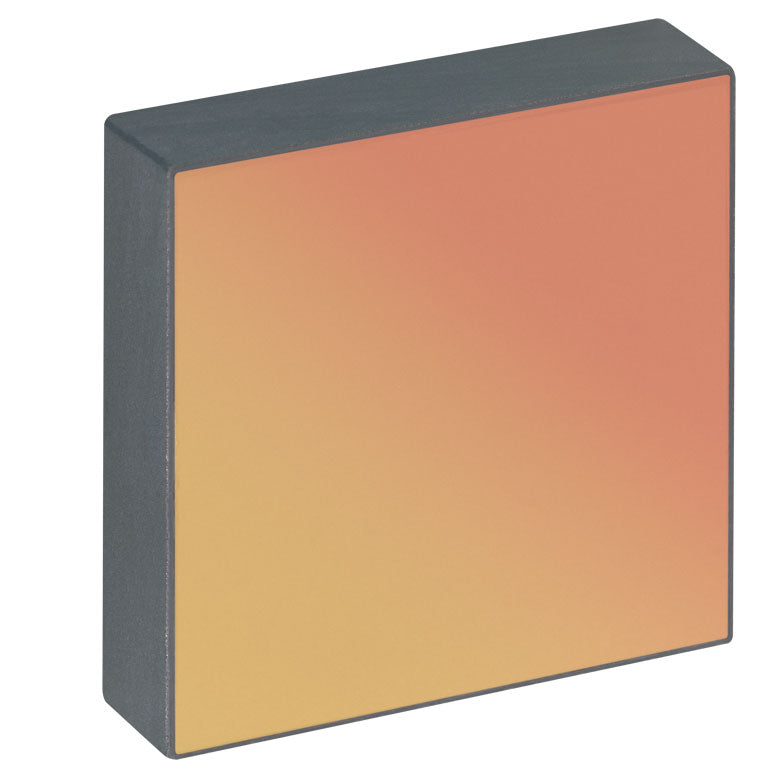

T-GH25-36U - UV Reflective Holographic Grating, 3600/mm, 25 mm x 25 mm x 6 mm

Product Drawing

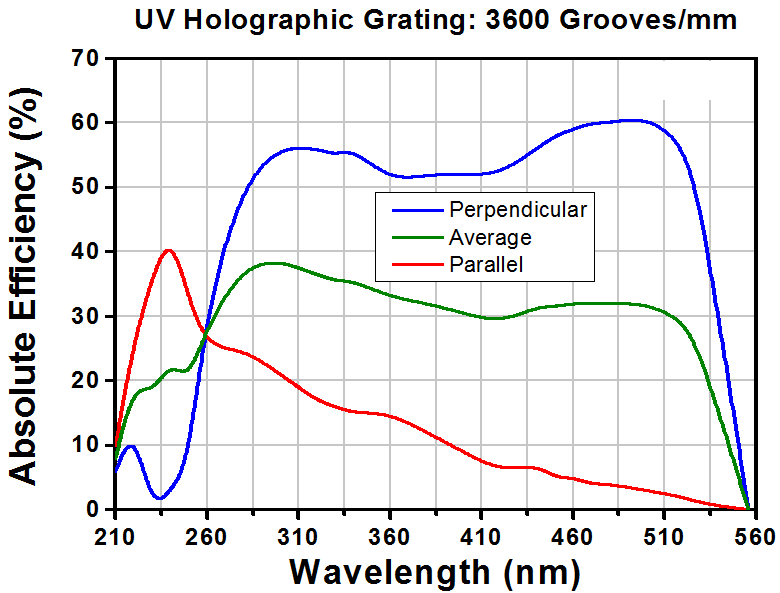

45% to 65% Efficiencies at Peak Wavelength
Versions Optimized for the UV and Visible Spectrum
Relatively Independent of Angle of Incidence
Substrate: Borofloat
Three Sizes: 12.7 x 12.7 x 6.0 mm, 25 x 25 x 6.0 mm, and 50 x 50 x 9.5 mm
Dimensions (W x H x D) 25.0 mm x 25.0 mm x 6.0 mm
Grooves/mm 3600
Dispersion @ 250 nm 4.00 mrad/nm (0.25 nm/mrad)
