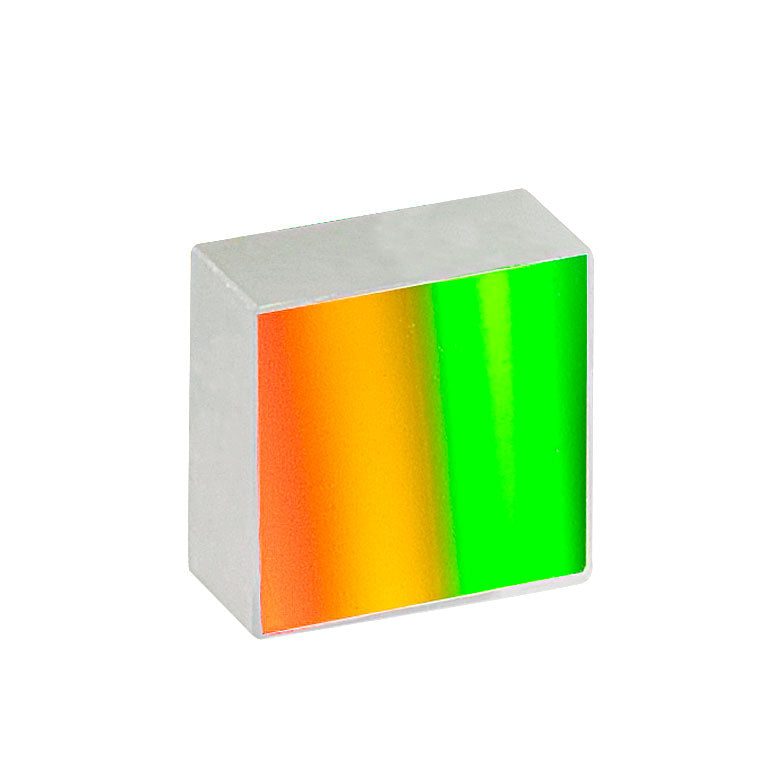

T-GR25-0605 - Ruled Reflective Diffraction Grating, 600/mm, 500 nm Blaze, 25 x 25 x 6 mm

Fosco Connect Part No.: T-GR25-0605

$ 205.00 or

T-GR25-0605 - Ruled Reflective Diffraction Grating, 600/mm, 500 nm Blaze, 25 x 25 x 6 mm

Product Drawing

Blaze Wavelengths of 400 or 500 nm

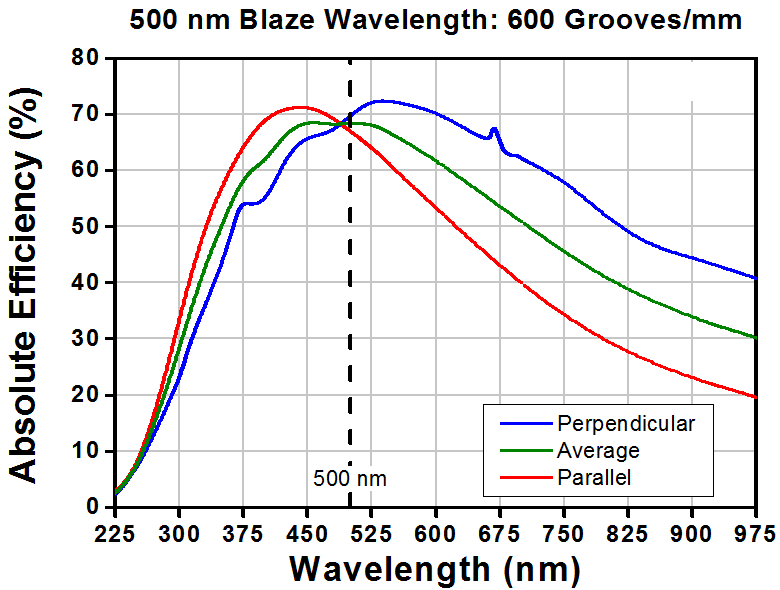

High Grating Efficiency of 60% to 80% at Blaze Wavelength
Low Ghosting, <0.5% of Parent Line
Aluminum Reflective Coating
Soda Lime Glass Substrate with 300 to 1200 Grooves/mm
Produced from Ruled Original
Dimensions (W x H x D) 25 mm x 25 mm x 6 mm
Blaze Wavelength 500 nm
Grooves/mm 600
Blaze Angle 8° 37'
Dispersion 1.65 nm/mrad
