T-GR50-1204 - Ruled Reflective Diffraction Grating, 1200/mm, 400 nm Blaze, 50 x 50 x 9.5 mm

T-GR50-1204 - Ruled Reflective Diffraction Grating, 1200/mm, 400 nm Blaze, 50 x 50 x 9.5 mm

Product Drawing

• Blaze Wavelengths of 400 or 500 nm

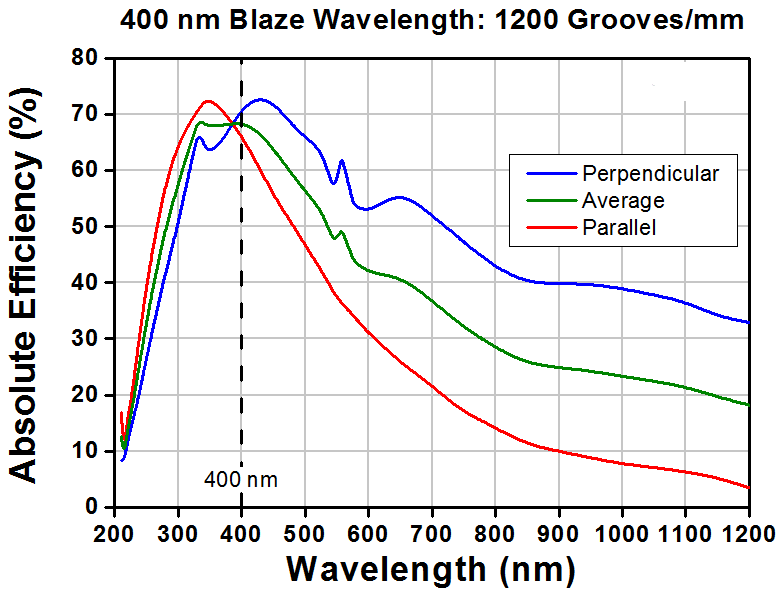

• High Grating Efficiency of 60% to 80% at Blaze Wavelength
• Low Ghosting, <0.5% of Parent Line
• Aluminum Reflective Coating
• Soda Lime Glass Substrate with 300 to 1200 Grooves/mm
• Produced from Ruled Original
• Dimensions (W x H x D) 50 mm x 50 mm x 9.5 mm
• Blaze Wavelength 400 nm
• Grooves/mm 1200
• Blaze Angle 13° 53'
• Dispersion 0.81 nm/mrad
