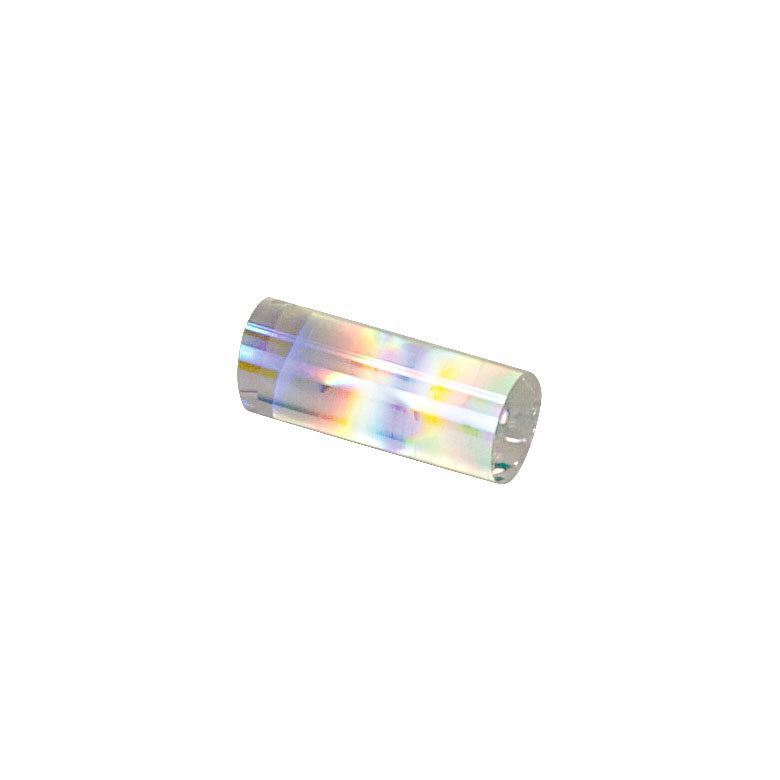

T-GRIN2313A - GRIN Lens, Ø1.8 mm, 0.23 Pitch, 8°, 1300 nm Design Wavelength, AR Coated: 1250 - 1650 nm
T-GRIN2313A - GRIN Lens, Ø1.8 mm, 0.23 Pitch, 8°, 1300 nm Design Wavelength, AR Coated: 1250 - 1650 nm

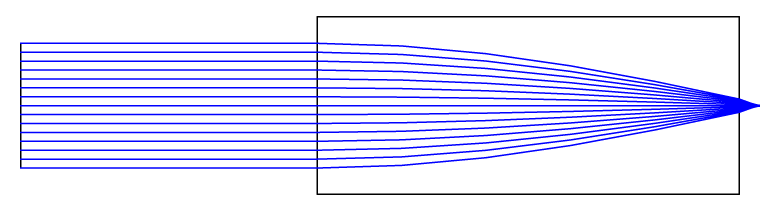

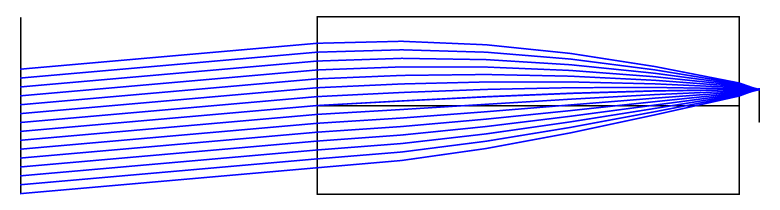

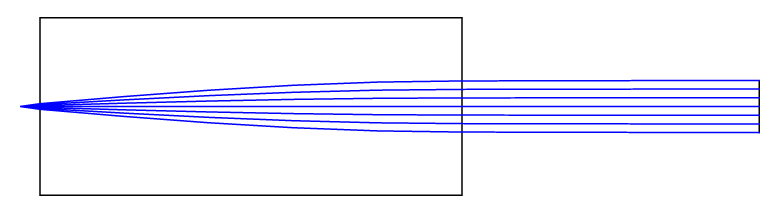

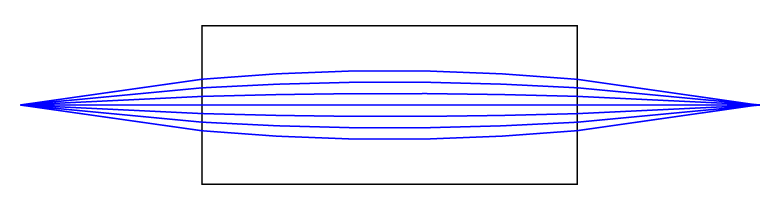

- Provides Collimation and Focusing of Fiber-Coupled Light

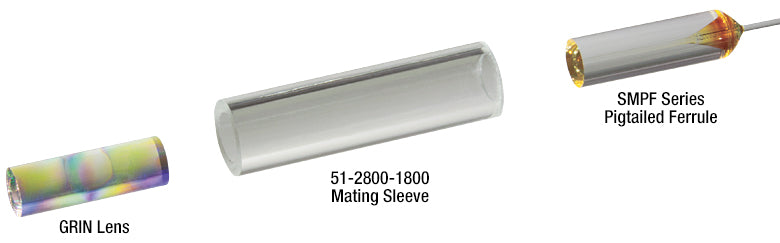

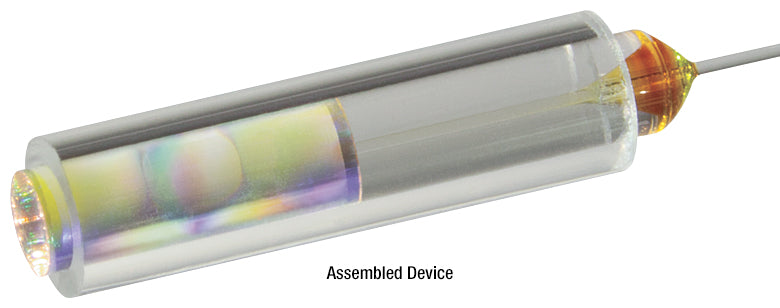

- Designed for Easy Integration with Pigtailed Ferrules
- 630, 1300, and 1560 nm Versions are AR Coated
- 8° or 0° Face Angle
- Ideal for Telecom Applications
- Pitch (P) 0.23
- Face Angle (θ) 8°
- Design Wavelength 1300 nm
- Effective Focal Length 1.94 mm
- Length (Z) 4.42 mm
- Working Distance 0.242 mm
- Index (n1) 1.5916
- NA 0.46
- √A (mm-1) 0.327
- Diameter (D) 1.8 mm
| Common Specifications | |
|---|---|
| Transmittance | >89%, 380 - 2000 nm |
| Polarization Preservation | 0.99 |
| Material | Oxide Glass |
| Operating Temperature | <350 °C |
| Item # | Design Wavelength | AR Coating | Pitch | Face Angle | Effective Focal Length | Working Distance |
|---|---|---|---|---|---|---|
| T-GRIN2306A | 630 nm | 630 nm | 0.23 | 8° | 1.85 mm | 0.234 mm |
| T-GRIN2308A | 830 nm | N/A | 1.90 mm | 0.239 mm | ||
| T-GRIN2310A | 1060 nm | N/A | 1.92 mm | 0.238 mm | ||
| T-GRIN2313A | 1300 nm | 1250 - 1650 nm | 1.94 mm | 0.242 mm |
