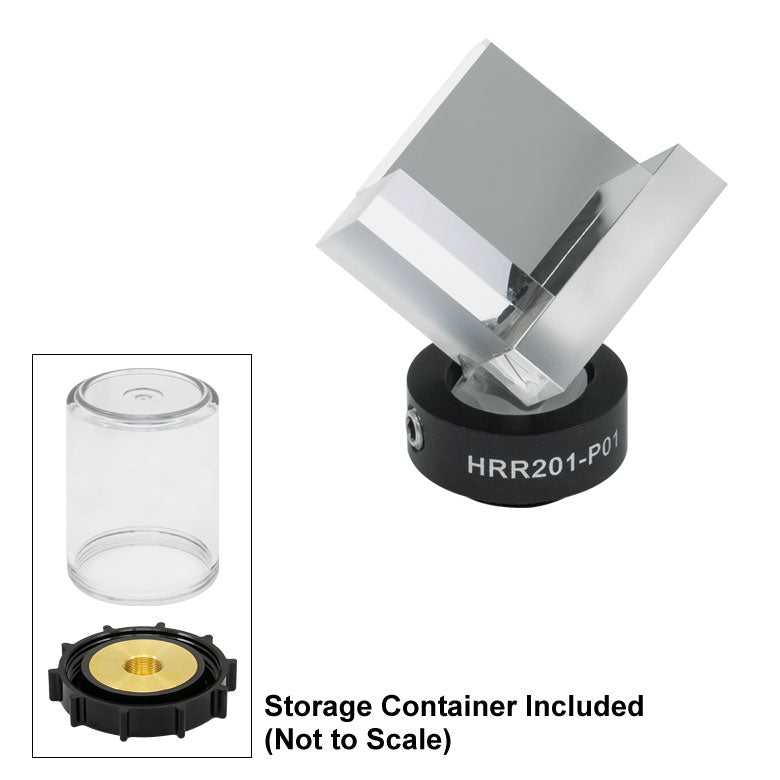

T-HRR201-P01 - UVFS Hollow Retroreflector, Ø0.9" Clear Aperture, Protected Silver Coating, SM05-Threaded Mount
T-HRR201-P01 - UVFS Hollow Retroreflector, Ø0.9" Clear Aperture, Protected Silver Coating, SM05-Threaded Mount
- Protected Silver Coating
- N-BK7 or UV Fused Silica Substrates
- SM05- or SM1-Threaded Mounts
- Clear Aperture Entrance: Ø0.90" (22.9 mm) Single Leg: Ø0.41" (10.4 mm)
- Coating Protected Silver
- Reflectance per Surface (Average) >97% (450 nm - 2 µm) >95% (2 - 20 µm)

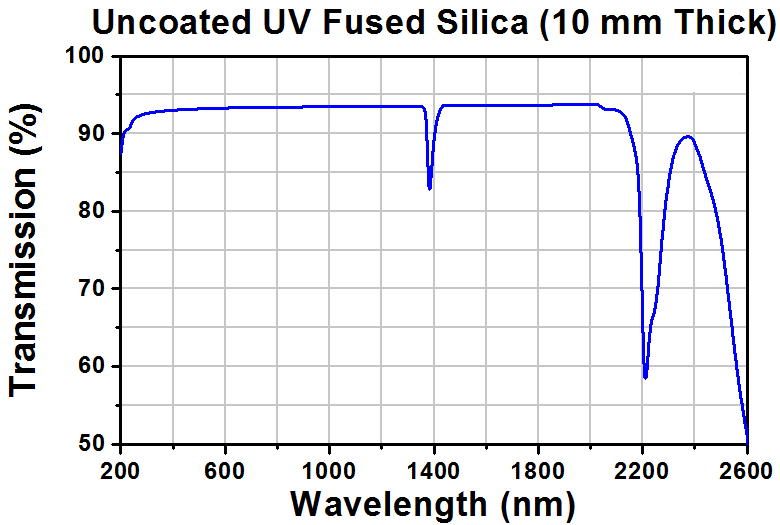

- Substrate UV Fused Silica
- Substrate Thickness 6 mm
- Surface Flatness λ/8 at 633 nm
- Dimensions 1.41" x Ø1.52" (35.8 mm x Ø38.7 mm)
- Mount Threading SM05 (0.535"-40)
