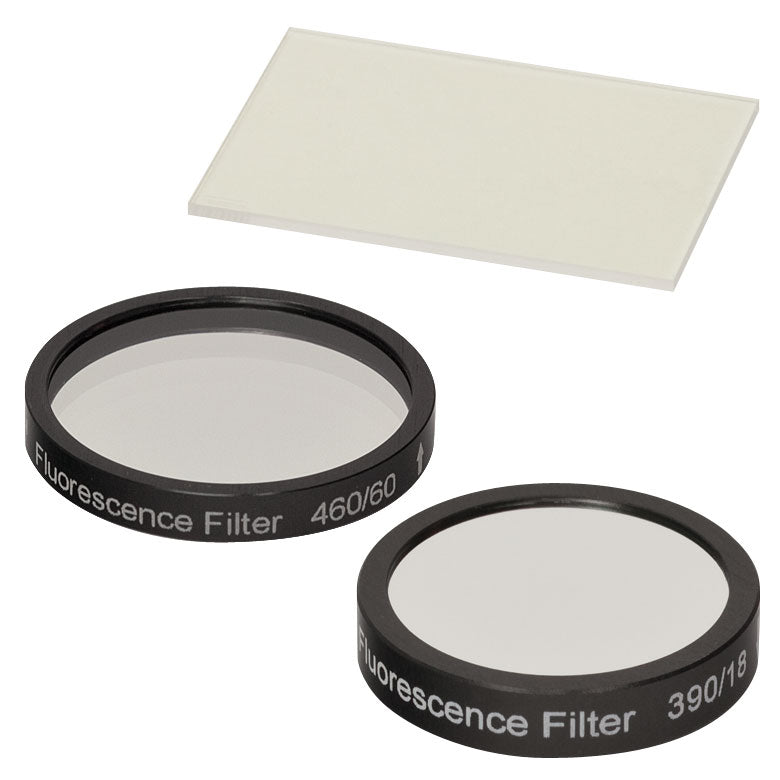

T-MDF-BFP - BFP Excitation, Emission, and Dichroic Filters (Set of 3)

Fosco Connect Part No.: T-MDF-BFP

Kit including: T-MF390-18, T-MF460-60, T-,D416

Fluorophore BFP

Filter Type T-MF390-18 Excitation, T-MF460-60 Emission, T-MD416 Dichroic

Center Wavelength T-MF390-18 390 nm, T-MF460-60 460 nm

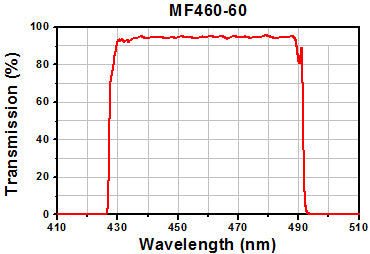

FWHM T-MF390-18 18 nm, T-MF460-60 60 nm

Reflection Band T-MD416 R_avg > 90% 360 - 407 nm

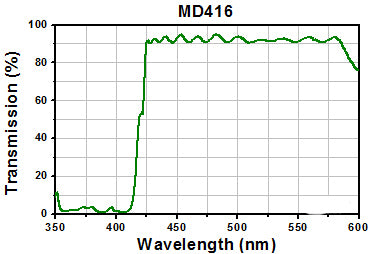

Transmission Band T-MD416 Tabs > 90% 425 - 575 nm

AR Coating T-MD416 R_abs < 2% from 400 to 800 nm

Excitation Filters		Emission Filters		Dichroic Filters
MDF-GFP2, MDF-TOM, MDF-MCHC, & MDF-MCHA Kits	All Other Excitation Filters	MDF-GFP2, MDF-TOM, MDF-MCHC, & MDF-MCHA Kits	All Other Excitation Filters	Dichroics in MDF-GFP2, MDF-MCHA, MDF-MCHC, & MDF-TOM Kits	All Other Dichroics
Size	Ø25 +0.0/-0.1 mm	Ø25 ± 0.1 mm	Ø25 +0.0/-0.1 mm	Ø25 ± 0.1 mm	25.2 mm x 35.6 mm	25.0 mm x 36.0 mm
Clear Aperture	>Ø21 mm		>Ø22 mm	>Ø21 mm	80% of Area	>(22.5 mm x 32.4 mm)
Angle of Incidence	0° ± 5°				45° ± 1.5°
Thickness	5.0 ± 0.1 mm		3.5 ± 0.1 mm		1.05 ± 0.05 mm	1.0 ± 0.1 mm
Surface Quality	60-40 Scratch-Dig
Substrate	Fused Silica

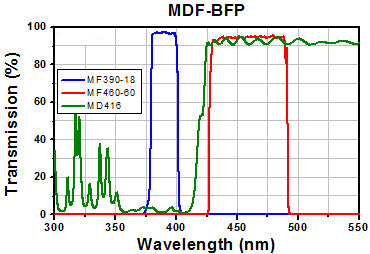

Item #	Transmission Data	Design Fluorophore	Excitation Band	Emission Band	Dichroic
T-MDF-BFP	Click to check	Blue Fluorescent Protein (BFP)	390 ± 9 nm	460 ± 30 nm	360 - 407 nm / 425 - 475 nm
