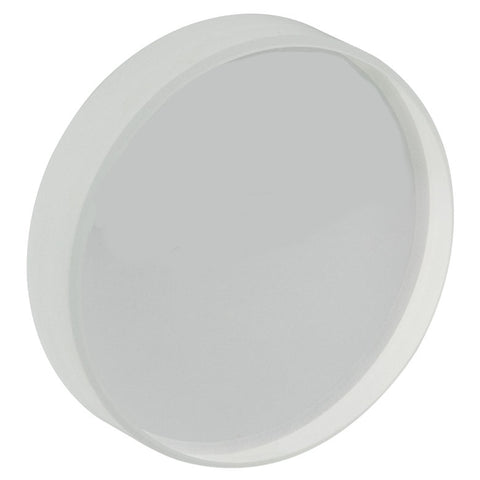

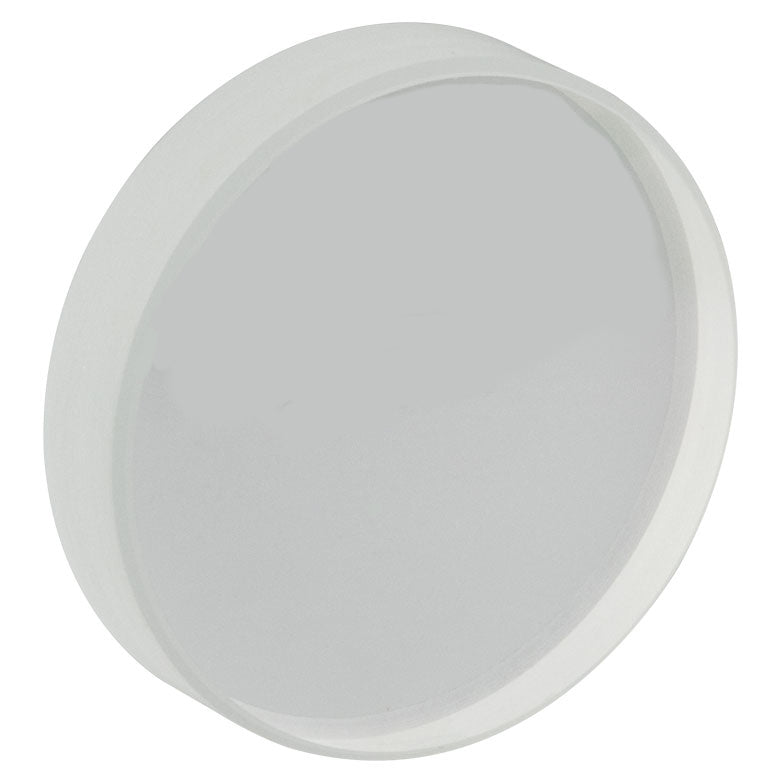

T-NB1-K05 - Ø1" Ar-Ion Laser Line Mirror, 300 - 308 nm, 0° to 45° AOI
T-NB1-K05 - Ø1" Ar-Ion Laser Line Mirror, 300 - 308 nm, 0° to 45° AOI
- Designed for Use from 0° to 45° AOI
- S Polarization: Ravg > 99.5% (300 - 308 nm)
- P Polarization: Ravg > 98.0% (300 - 308 nm)
- Available Wavelength Ranges
- 300 - 308 nm
- 333 - 364 nm
- 458 - 528 nm
- Designed for Use from 0° to 45° AOI
- Ø19 mm and Ø1" Options
| Common Specifications | |
|---|---|
| Substrate Material | Fused Silica |
| Front Surface Flatness | λ/10 @ 633 nm |
| Clear Aperture | >80% of Diameter |
| Back Surface | Fine Ground |
| Parallelism | <3 arcmin |
| Diameter Tolerance | +0.0/-0.1 mm |
| Thickness | 6.0 ± 0.2 mm |
| Surface Quality | 10-5 Scratch-Dig |
