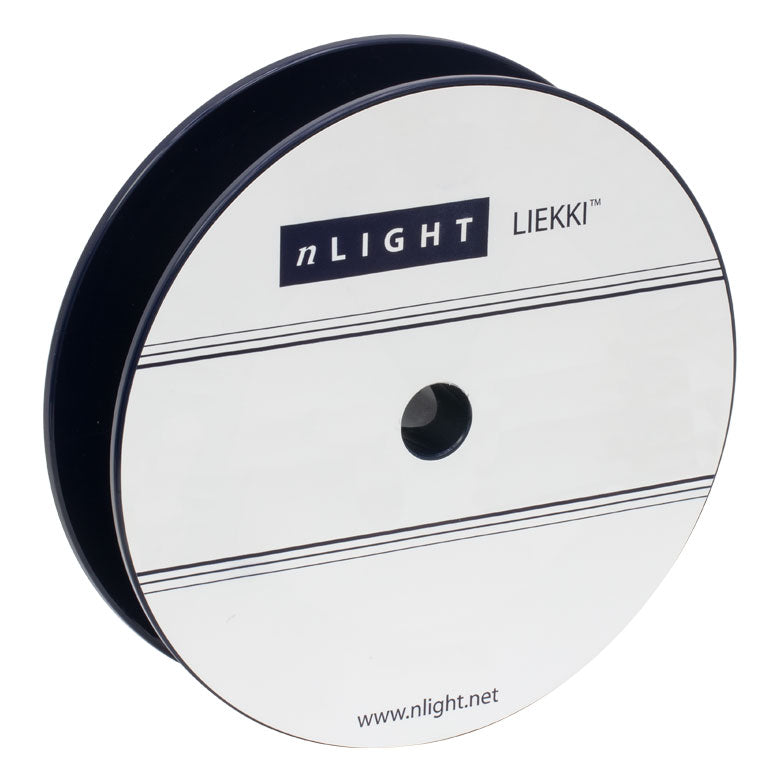

T-P-25/250DC-PM - Passive PM LMA Double-Clad Fiber, 25 µm Core, Matched to YB1200-25/250DC-PM , Unit Pricing Per Meter
T-P-25-250DC-PM - Passive PM LMA Double-Clad Fiber, 25 µm Core, Matched to YB1200-25/250DC-PM, Unit Pricing Per Meter
- Optimized for Coupling to Active Doped Fibers
- Single Mode and Large Mode Area (LMA) Options
- Industry-Standard Geometries for Easy Handling
- Polarization Maintaining
- Compatible Active Fiber YB1200-25/250DC-PM
- Cladding Geometry Round, Panda
- Core Diameter 25.0 ± 1.5 µm
- Cladding Diameter 250 ± 3 µm
- Coating (Second Cladding) Diameter 350 ± 15 µm
- Core NA 0.070 ± 0.005
- Cladding NA ≥0.48
- Proof Test ≥100 kpsi
