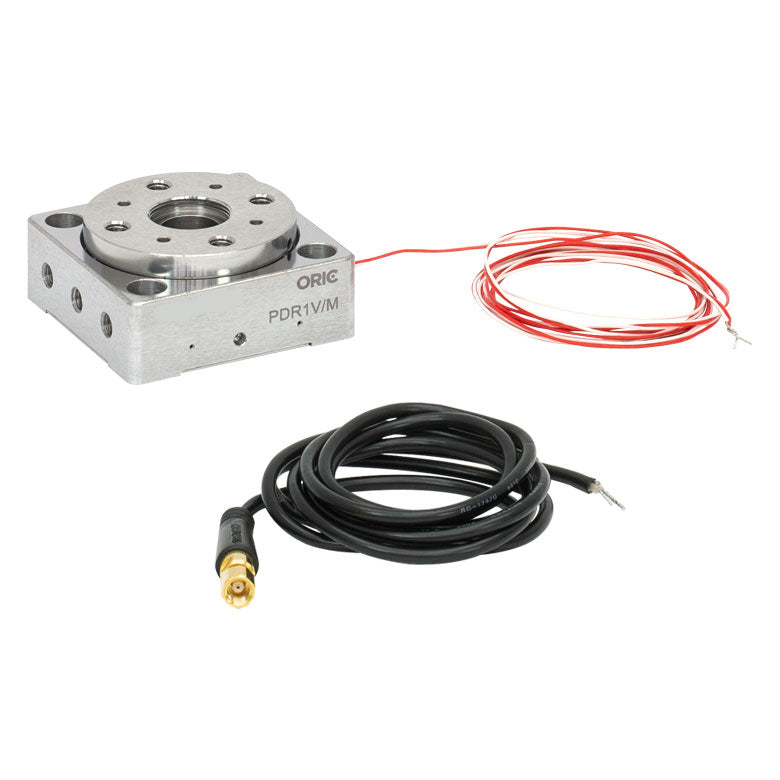

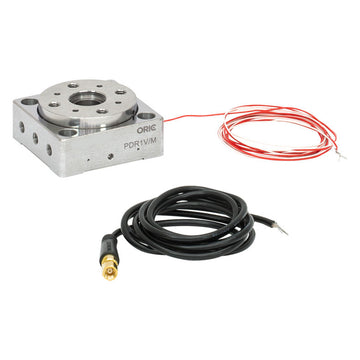

T-PDR1V-M - ORIC Vacuum-Compatible Rotation Stage with Piezo Inertia Drive, Metric
| Key Specifications | |
|---|---|
| Item # | T-PDR1V(-M) |
| Stage Travel | 360° Rotation |
| Typical Step Size | 250 µrad |
| Top Plate Mounting Options | Four 8-32 (M4) Threaded Holes; SM05 (0.535"-40) Threaded Hole; Four Ø2 mm Dowel Pin Holes |
| Vacuum Compatibility | 10-6 Torr |
| PDR1V(/M) Specifications | |
|---|---|
| Rotation Range | 360° Continuous |
| Step Size | Typical: 250 µrad Maximum: <350 µrad Adjustability: ≤30% |
| Maximum Step Frequency | 2 kHz |
| Maximum Speed (Continuous Stepping) | 20°/s (Typical) |
| Speed Variation Over Travel Range (Average) | ±10% (Typical) |
| Horizontal Load Capacity | 1 kg (2.2 lbs) |
| Vertical Load Torque Capacityf | 15 mN•m |
| Holding Torque | 25 mN•m |
| Wobble | ≤200 µrad |
| Lifetime | >10 Billion Stepsg |
| Vacuum Compatibility | 10-6 Torr |
| Piezo Specifications | |
| Max Operating Voltage | 125 V |
| Capacitance | 170 nF |
| Physical Specifications | |
| Operating Temperature | 10 to 40 °C |
| Connector Type | Flying Leads Attached to Stage; Additional Bare Lead to SMC Female Cable Included |
| Cable Length | 0.75 m (2.48 ft) Flying Lead for Vacuum; 1.0 m (3.3 ft) Cored Cable Included for Wiring Outside Chamber |
| Top Plate Mounting Options |
Four 8-32 (M4) Threaded Holes, 2.0 mm Deep; Four Ø2 mm Dowel Pin Holes, 1.5 mm Deep; One SM05 (0.535"-40) Threaded Aperture, 2.5 mm Deep |
| Dimensions | 40.0 mm x 40.0 mm x 18.0 mm (1.57" x 1.57" x 0.71") |
| Weight (Including Cable) | 163 g (5.75 oz) |
| Required Controller | KIM001 or KIM101 |
