T-PDXC2 - Compact Single Stage ORIC® Piezo Inertia Stage Controller

Fosco Connect Part No.: T-PDXC2

  • $ 2,325.00 or

T-PDXC2 - Compact Single Stage ORIC® Piezo Inertia Stage Controller

Product Drawing

  • Controller for ORIC Piezo Inertia Linear and the T-PDR1C(-M) and T-PDXR1(-M) Rotation Stages
  • Compact Design and PC Control with Kinesis® Software
  • Supports Both Open- and Closed-Loop Operation
  • Energy Efficient Switch Amplifier Circuit Outputs Peak Current of 10 A
  • Configurable High Speed Communication Interfaces: USB 2.0, Gigabit Ethernet, Digital I/0, Analog I/0
  • 800 Hz to 20 kHz Pulse Rate Range

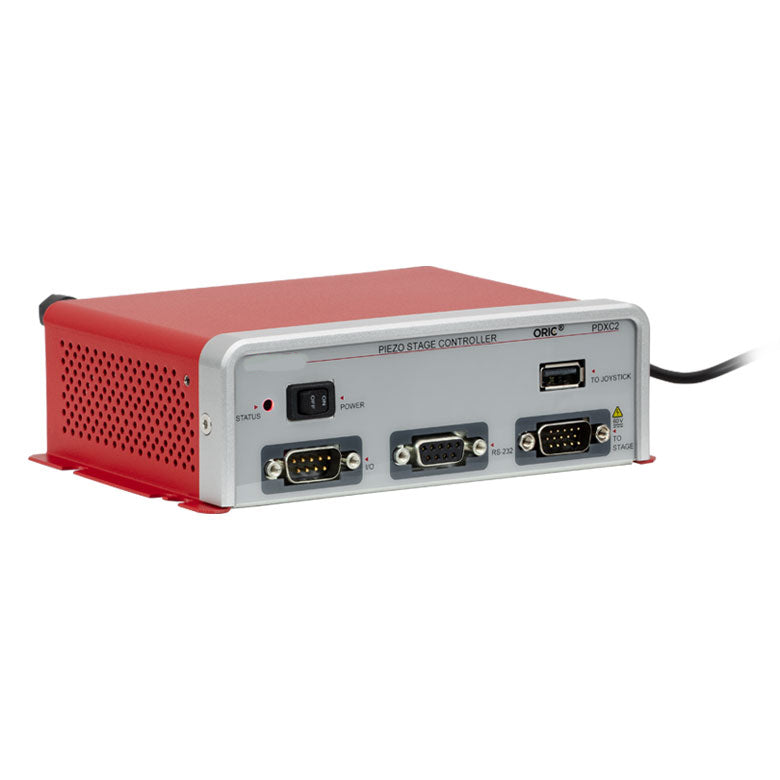

The T-PDXC2 compact controller is designed for our ORIC piezo-inertia-driven linear stages, and the T-PDR1C(-M) and T-PDXR1(-M) rotation stages. It features one channel that supports open- or closed-loop stage control using a 15-pin D-sub output.

The T-PDXC2 controller is connected to PC by either the USB or ethernet ports on the back panel of the controller. All the operating parameters and operations, such as switching between open- and closed-loop modes, performing homing operation, and parameter optimization are controlled by PC with the Kinesis® software

The T-PDXC2 unit is powered by the included DS12 12 VDC power adapter, which operates at an input voltage of 100 - 240 VAC and ships with a region-specific AC cable. For all applications, use an IEC320 compatible power cord fitted with a plug appropriate for your particular power socket. Make sure that the line voltage rating marked on the power adapter agrees with your local power supply.

Key Specifications
Performance Specifications
D-sub Port Number of Ports One
Voltage 0 to 56 V
Frequency 20 kHz Max
Max Current Limit 10 A
Front USB Type A, USB HID Host
Back USB Type B, USB Device 2.0
I/O Port Voltage of Analog In/Out -10 to 10 V, ±2%
Voltage of Trigger In/Out 0 to 5 V, TTL
Ethernet PC Communication One RJ-45 Port
Dimensions (L x W x H) 115.2 mm x 150.0 mm x 48.5 mm
(4.54” x 5.91” x 1.91”)
Weight 0.53 kg
Input Power 12 V, 3 A DAC
