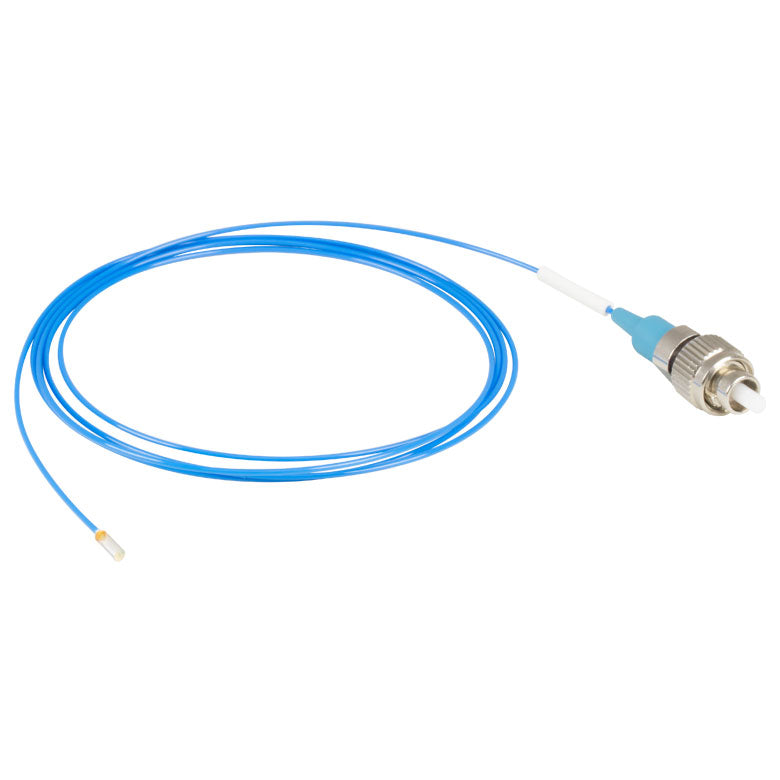

T-PMPFX1 - PM Pigtailed Ferrule, Ø1.8 mm, 8°, 630 nm, FC/PC
T-PMPFX1 - PM Pigtailed Ferrule, Ø1.8 mm, 8°, 630 nm, FC/PC
- 630, 780, and 1550 nm Alignment Wavelengths
- AR Coated Glass Ferrules
- 630 ± 30 nm VAR Coating
- 700 - 900 nm and 1260 - 1650 nm Broadband AR Coating
- 2.0 mm Narrow Key FC/PC or FC/APC Versions Available
- Designed for Easy Pairing with GRIN Lenses
- Pigtailed Glass Ferrule with 8° Face Angle
- Ideal for Telecom Applications
- Face Angle 8°
- Glass Ferrule AR Coating Range 630 ± 30 nm
- Reflectance Over AR Coating Range Ravg < 0.25%
-
Fiber NA 0.12
- Fiber Alignment Wavelength 630 nm
- Fiber Operating Wavelength 620 - 850 nm
- Cutoff Wavelength 570 ± 50 nm
- Fiber Type PM630-HP

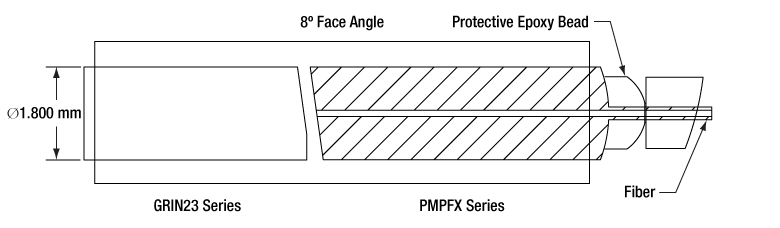

- Compatible GRIN Lens T-GRIN2306A
- Connector FC/PC

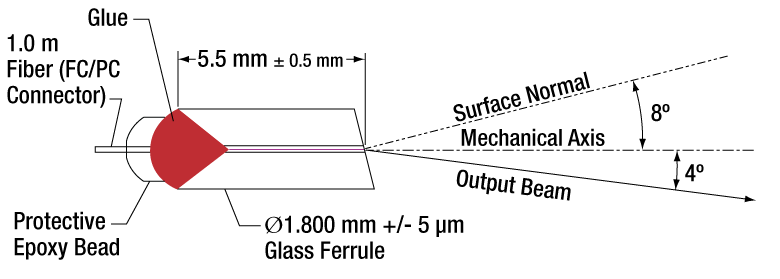

- Reference Diagram Click for information
| Common Specifications | |
|---|---|
| Ferrule Diameter | 1.800 mm ± 5 µm |
| Ferrule Length | 5.5 mm ± 0.5 mm |
| Ferrule Material | Borosilicate Glass |
| Wedge Tolerance | ±0.2° |
| Average Reflectivity | <0.25% in AR Coating Range |
| Fiber Length | 1.0 m +0.075 m/-0.0 m |
| Protective Jacket | Ø900 µm Hytrel®a Tubing |
