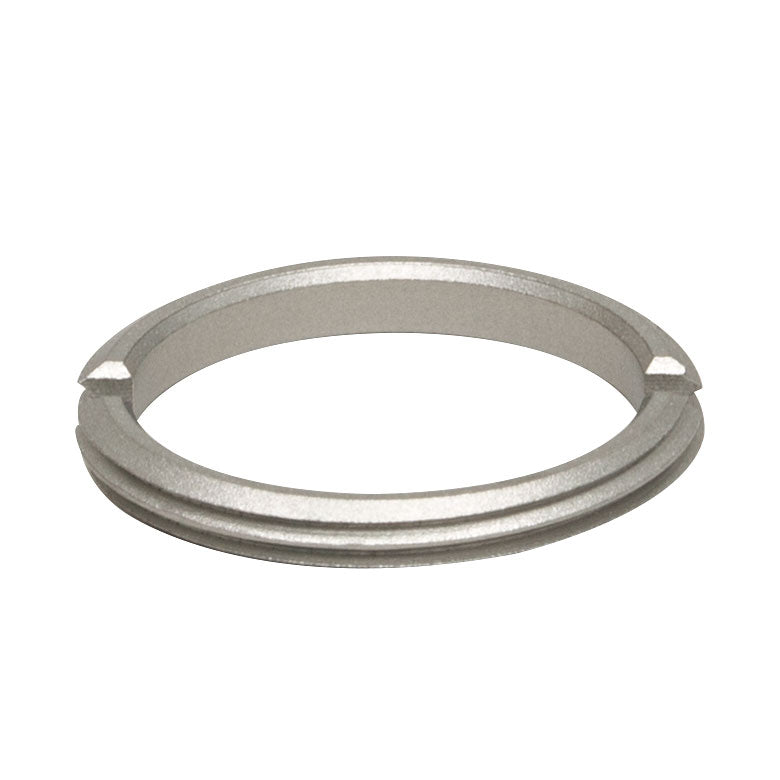

T-POLARIS-SM05RR - Stainless Steel SM05 (0.535"-40) Threaded Retaining Ring
T-POLARIS-SM05RR - Stainless Steel SM05 (0.535"-40) Threaded Retaining Ring
Thread SM05 (0.535"-40)
Thickness 0.07" (1.7 mm)
Compatible Spanner Wrench T-SPW603 T-SPW603L or T-SPW801
Compatible Optic Mounts Any Internally SM05-Threaded Mount
Clear Aperture Ø0.43" (Ø10.9 mm)
| Internal Thread, UNS-2B | External Thread, UNS-2A | ||
| Min Major Diameter | 0.5350" | Max Major Diameter | 0.5340" |
| Min Pitch Diameter | 0.5188" | Min Major Diameter | 0.5289" |
| Max Pitch Diameter | 0.5230" | Max Pitch Diameter | 0.5178" |
| Min Minor Diameter (and 83.3% of Thread) |
0.508" | Min Pitch Diameter | 0.5146" |
| Max Minor Diameter (and 64.9% of Thread) |
0.514" | Max Minor Diameter | 0.5069" |
