T-PS855 - N-SF11 Equilateral Dispersive Prism, 40 mm
T-PS855 - N-SF11 Equilateral Dispersive Prism, 40 mm T-PS855 - N-SF11 Equilateral Dispersive Prism, 40 mm T-PS855 - N-SF11 Equilateral Dispersive Prism, 40 mm T-PS855 - N-SF11 Equilateral Dispersive Prism, 40 mm

T-PS855 - N-SF11 Equilateral Dispersive Prism, 40 mm

Part No.: T-PS855

  • $ 385.00

T-PS855 - N-SF11 Equilateral Dispersive Prism, 40 mm

Product Drawing

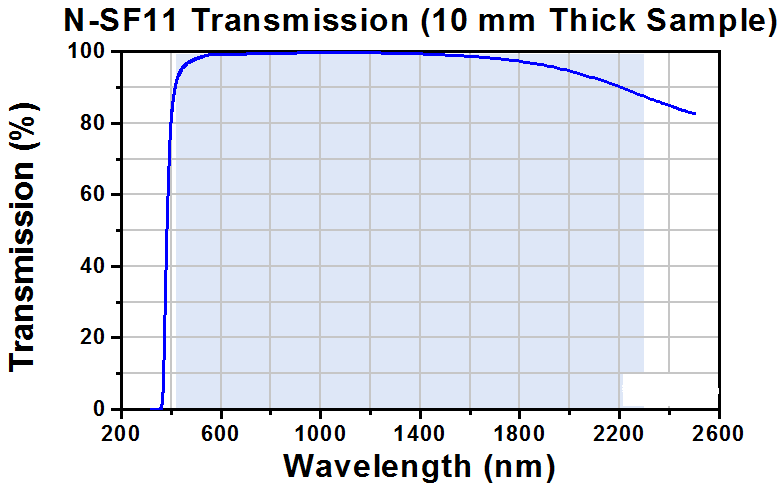

N-SF11 is a flint glass that offers excellent performance in the visible and NIR spectral range. It offers a high refractive index and low Abbe number, making it excellent for use in an equilateral dispersive prism.

Polarization Effects

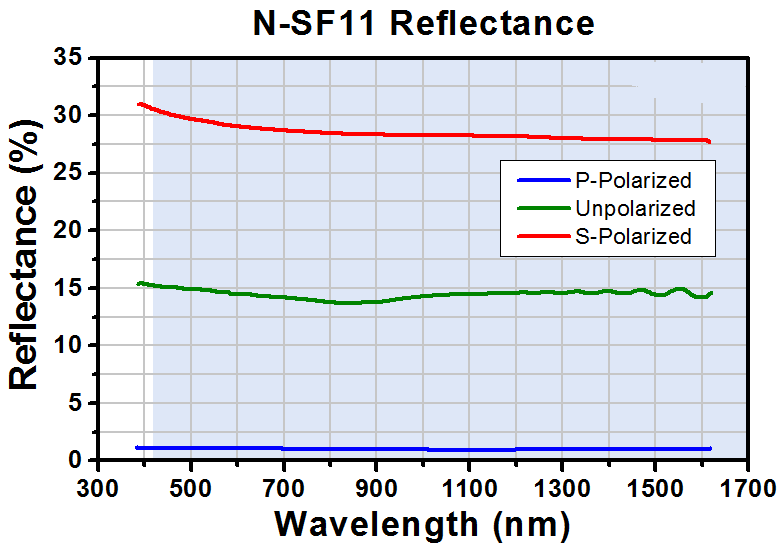

For P-Polarized light (blue line) incident on a dispersing prism at the angle of least deviation, the graph to the right shows that only a small percentage of the P-polarized light is reflected at the surface. Thus, for this polarization, the transmission through a prism fabricated from N-SF11, a RoHS-compliant version of SF11, will be excellent even though there is no AR coating on the surface.

Material Minimum Angle
of Deviation		 Vdb Surface Flatness
@ 633 nm		 Clear
Aperture		 Surface
Quality		 Angular
Tolerance		 Number of

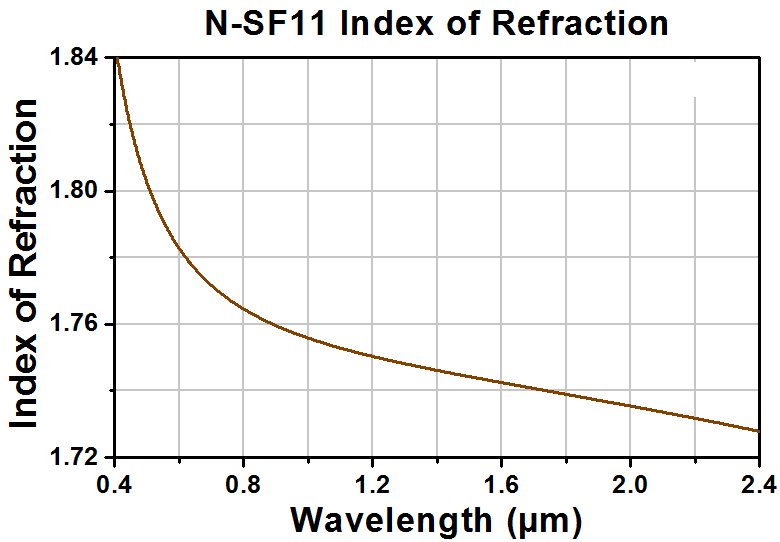

Polished Faces		 Index of
Refraction Plot
N-SF11 65.5° @ 633 nm 24.76 λ/10 70% 40-20 Scratch-Dig ±5 arcmin 2 Click
