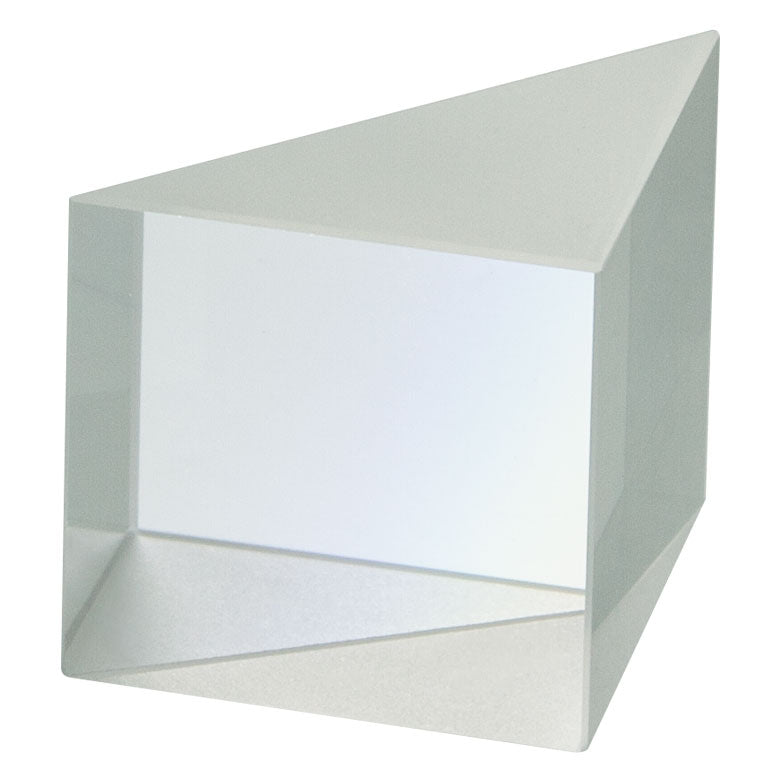

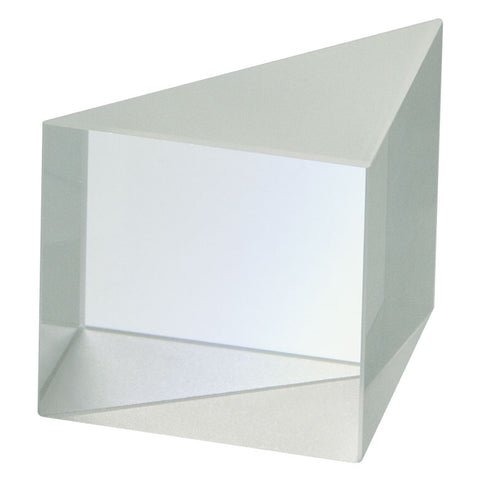

T-PS915 - N-BK7 Right-Angle Prism, Uncoated, L = 15 mm

Fosco Connect Part No.: T-PS915

  • $ 85.00 or

T-PS915 - N-BK7 Right-Angle Prism, Uncoated, L = 15 mm

Product Drawing

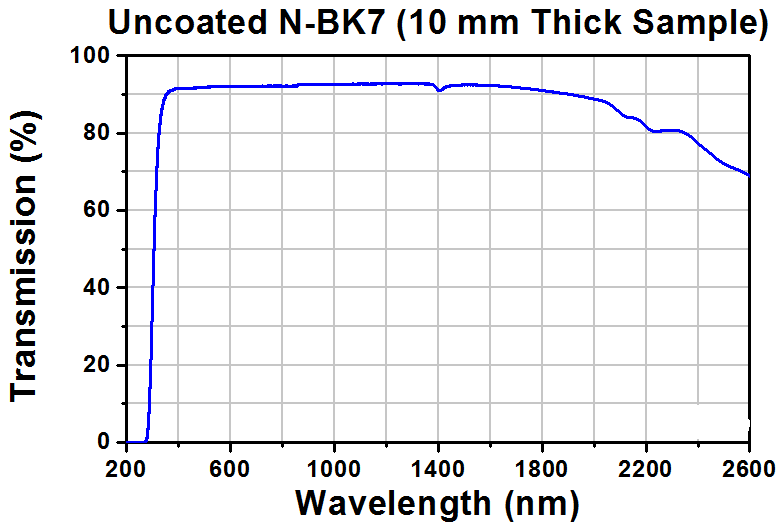

Choose an N-BK7 Right-Angle Prism if the additional benefits of fused silica are not required. N-BK7 provides excellent transmittance in the visible and near infrared portions of the spectrum. Please see the Graphs tab for a graph of index of refraction vs wavelength for N-BK7. Additionally, N-BK7 is a viable choice for UV applications down to 350 nm. For applications that demand maximum transmission, please see our AR-coated N-BK7 prisms below.

General Specifications

  • Material N-BK7
  • Clear Aperture 70% of Face Length and Width
  • Surface Quality 40-20 Scratch-Dig
  • Surface Flatness λ/10 at 633 nm
  • Number of Polished Faces 3 (Triangular Faces are Fine Ground)

Uncoated Prisms

  • Material N-BK7
  • L 15 mm
  • X 21.2 mm
  • Angle Tolerance ±3 arcmin
  • Dimensional Tolerance ±0.2 mm


Sold Out
