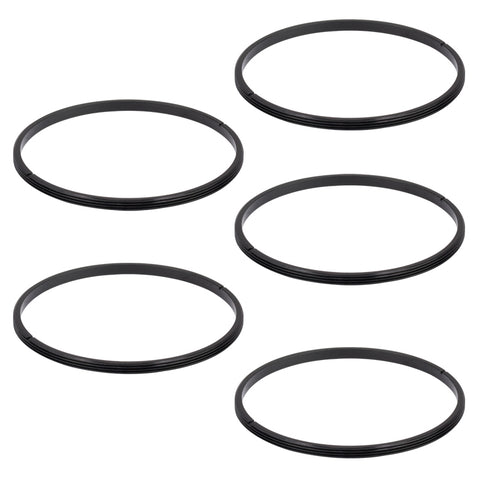

T-SM2RR-P5 - SM2 Retaining Ring for Ø2" Lens Tubes and Mounts, 5 Pack
T-SM2RR-P5 - SM2 Retaining Ring for Ø2" Lens Tubes and Mounts, 5 Pack
- Standard Retaining Rings for Optics Ranging from Ø39 mm to Ø2"
- SM2RR Retaining Rings Available in 5 Packs
- Thread T-SM2 (2.035"-40)
- Thickness 0.10" (2.5 mm)
- COMPATIBLE Spanner Wrench T-SPW604 or T-SPW801
- Compatible Optic Mounts Any Internally SM2-Threaded Mount
- Clear Aperture Ø1.90" (Ø48.3 mm)
Our Standard Retaining Rings are manufactured from anodized aluminum and are offered in sizes to match our optic mounts and lens tubes.
They maximize the clear aperture while providing sufficient holding force.
Securing an optic using a retaining ring is a stable method for holding the optic since the optic is retained along its entire edge instead of just at a few points. Each retaining ring is machined with two slots for compatibility with our selection of spanner wrenches.
| T-SM2 (2.035"-40.0) Threading | |||
|---|---|---|---|
| Internal Thread, UNS-2B | External Thread, UNS-2A | ||
| Min Major Diameter | 2.0350" | Max Major Diameter | 2.0338" |
| Min Pitch Diameter | 2.0188" | Min Major Diameter | 2.0287" |
| Max Pitch Diameter | 2.0239" | Max Pitch Diameter | 2.0176" |
| Min Minor Diameter (and 83.3% of Thread) |
2.008" | Min Pitch Diameter | 2.0137" |
| Max Minor Diameter (and 64.9% of Thread) |
2.014" | Max Minor Diameter | 2.0067" |
