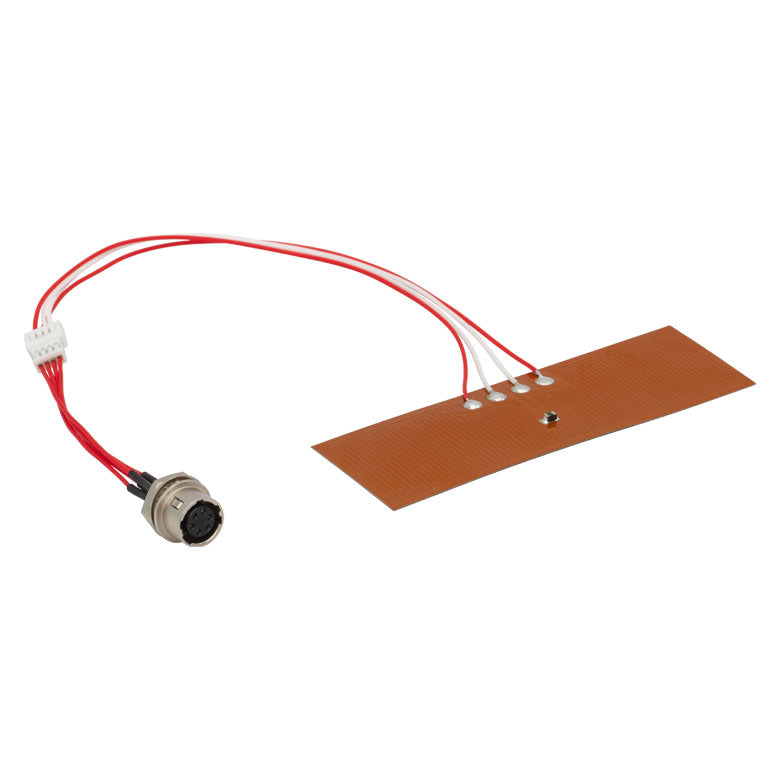

T-TLK-H - Flexible Polyimide Foil Heater with 10 kΩ Thermistor and 6 Pin Hirose Connector
T-TLK-H - Flexible Polyimide Foil Heater with 10 kΩ Thermistor and 6 Pin Hirose Connector
- 1" x 3" Heating Area for Use with Glass Cells or Lens Tubes
- Adhesive Backing for Easy Installation
- 10 W/in2 Heating Power with Integrated Thermistors
- T-TLK-H Heater Incorporates Hirose Connectors for Use with TC300 HeaterTemperature Controller
- Simplified Drawing and Pin Diagram
| Heater Power | 10 W/in2 (0.016 W/mm2) @ 70 °C | |
| Heater Resistance | 19.7 Ω | |
| Sensor Type | NTC10K Thermistor | |
| Size | 1" x 3" (25.4 mm × 76.2 mm) | |
| Effective Heating Area | 2.23 in2 (1438.7 mm2) | |
| Minimum Bend Radius | 0.5" (12.7 mm) in Thermistor Area, 0.030" (0.8 mm) in All Other Areas |
|
| Temperature Range | -32 to 100 °C (-26 to 212 °F) | |
