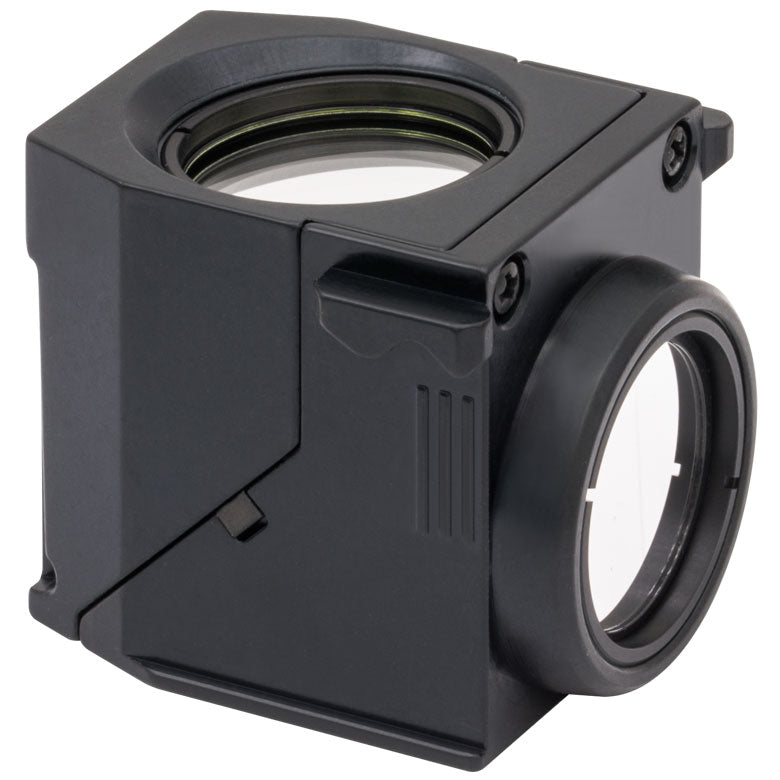

T-TLV-U-FF-BFP - Microscopy Cube with Pre-Installed BFP Filter Set for Olympus BX3, IX3
T-TLV-U-FF-BFP - Microscopy Cube with Pre-Installed BFP Filter Set for Olympus BX3, IX3
Features
- Drop-in Filter Cubes with Pre-Installed Fluorescence Filter Sets for Select Nikon and Olympus Microscopes (See Table Below)
- Filters Optimized for Common Fluorophores (See Table to the Right)
- Pre-Installed Filters Minimize Handling of Bare Optics
- Durable Aluminum Filter Cube Body
- Side Labels for Marking Installed Filters

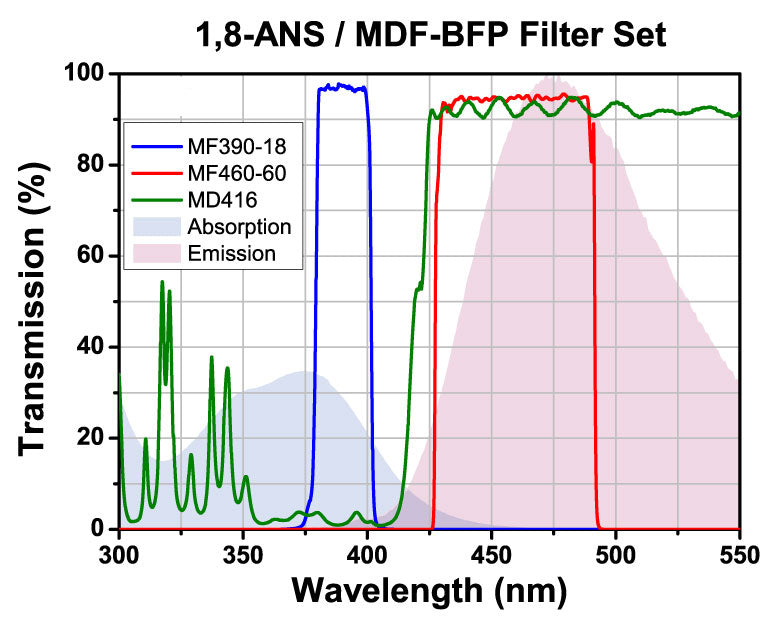

- Fluorophore (Peak Excitation λ, Peak Emission λ) 1,8-ANS (372 nm, 477 nm)

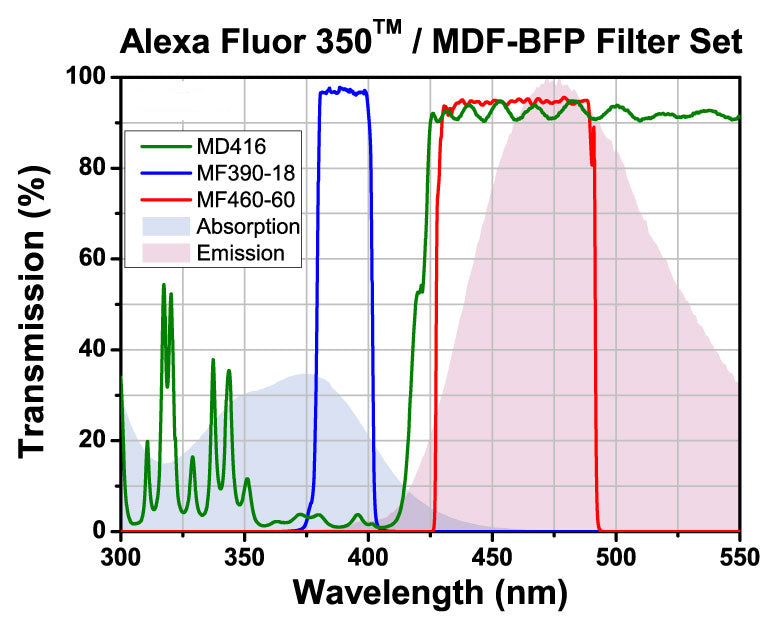

- Alexa Fluor 350™ (343 nm, 441 nm)

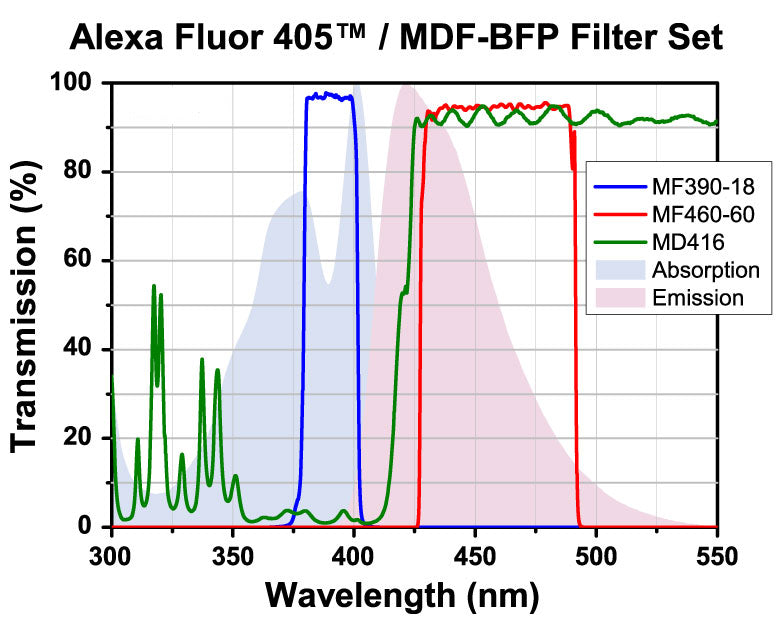

- Alexa Fluor 405™ (401 nm, 422 nm)

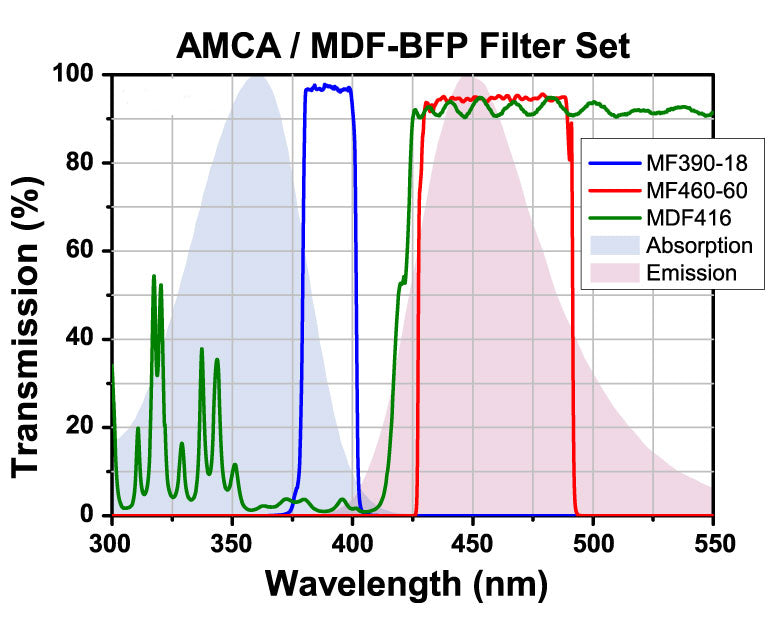

- AMCA (Aminomethylcoumarin) (350 nm, 488 nm)

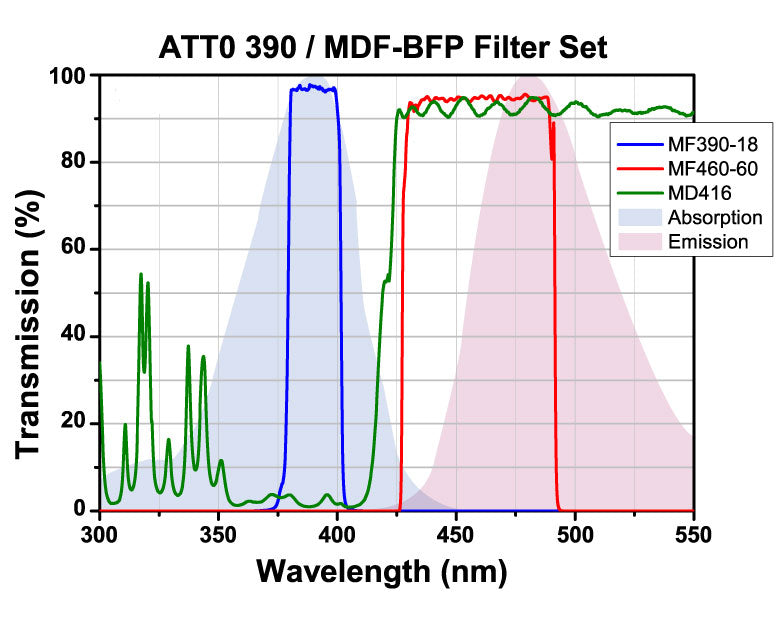

- ATTO 390 (392 nm, 477 nm)
- Vybrant DyeCycle Violet (369 nm, 437 nm)
- TagBFP (402 nm, 457 nm)
- SpectrumBlue (405 nm, 449 nm)
- Sirius (355 nm, 424 nm)
- sgBFP™ (387 nm, 451 nm)
- Pacific Blue™ (404 nm, 455 nm)
- Marina Blue (363 nm, 461 nm)
- LysoSensor Blue (374 nm, 424 nm)
- Hoechst 33258 (532 nm, 455 nm)
- HiLyte Fluor™ 405 (403 nm, 428 nm)
- ER-Tracker™ Blue-White DPX (372 nm, 557 nm)
- ECFP (435 nm, 475 nm)
- DyLight 405 (398 nm, 420 nm)
- DY-415 (418 nm, 470 nm)
- CellTrace calcein violet (400 nm, 452 nm)
- Cascade Blue™ (401 nm, 419 nm)
- BFP (EBFP) (380 nm, 440 nm)
- BD Horizon V500 (410 nm, 500 nm)
- BD Horizon V450 (406 nm, 449 nm)
| Item # Suffix | -BFP |
|---|---|
| Design Fluorophore | Blue Fluorescent Protein (BFP) |

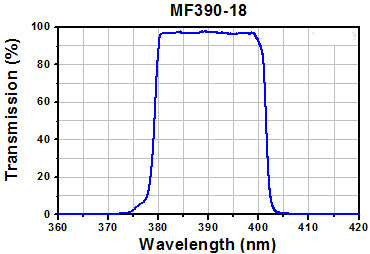

| Excitation Band | 390 ± 9 nm |

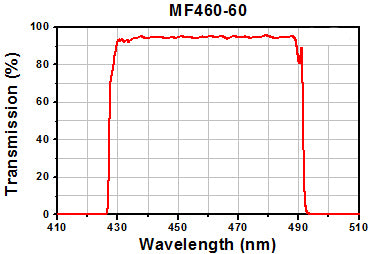

| Emission Band | 460 ± 30 nm |

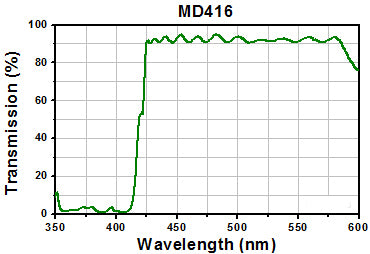

| Dichroic Band (R/T) | 360 - 407 nm / 425 - 575 nm |

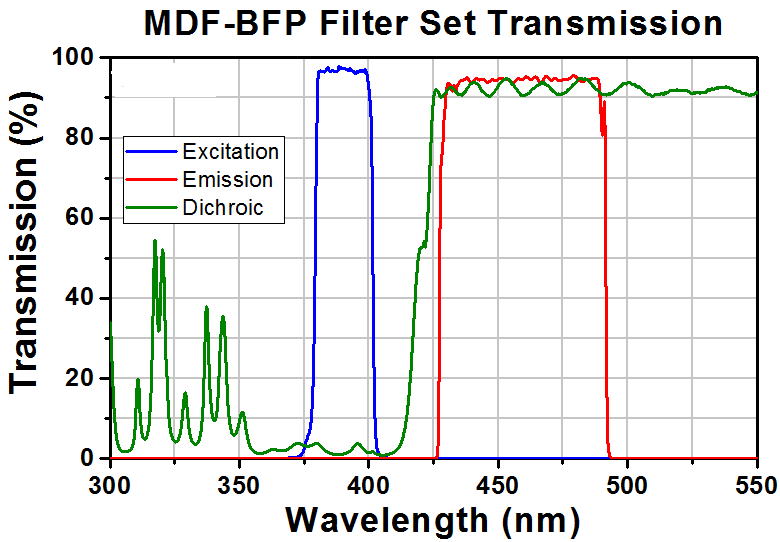

| Transmission Data | 1 2 3 4 5 |

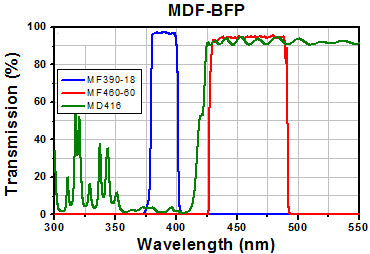

| Filter Set Item # | MDF-BFP |
