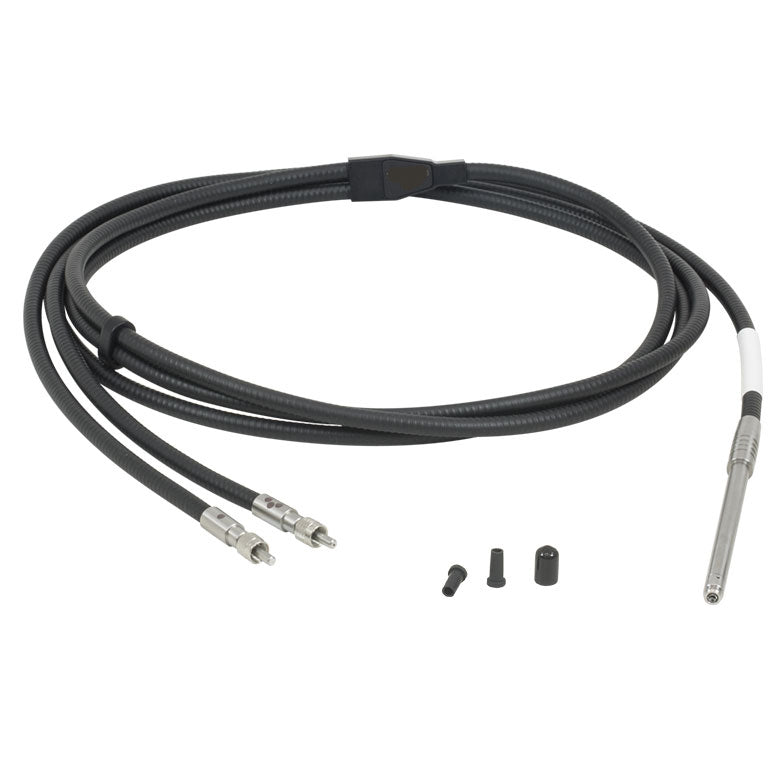

T-TP22 - Transmission Dip Probe, Ø200 µm, High OH, 400 - 900 nm, SMA905 to Ø1/4" Probe, 2 m
T-TP22 - Transmission Dip Probe, Ø200 µm, High OH, 400 - 900 nm, SMA905 to Ø1/4" Probe, 2 m
Hydroxyl Content High OH

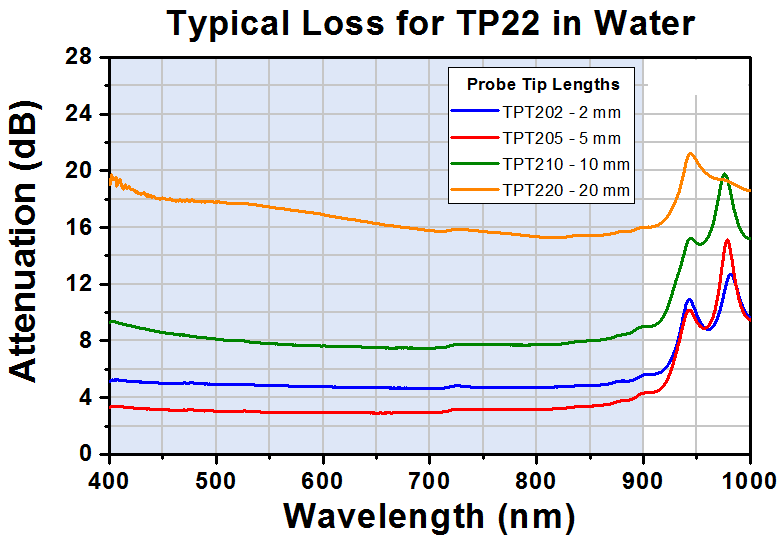

Wavelength Range (Click for Plot) 400-900 nm
Fiber Item # FG200UEA

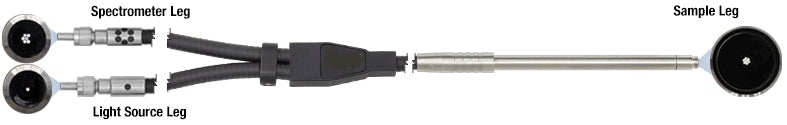

Source Leg SMA905 1 Fiber
Sample Leg Ø1/4" Probe
Spectrometer Leg SMA905 6 Fibers
Fiber Core Diameter 200 ± 4 µm
Fiber Cladding Diameter 220 ± 2 µm
NA 0.22 ± 0.02
Minimum Bend Radius Short Term 23 mm, Long Term 46 mm
