Features:

• Compact Crossed Czerny-Turner Spectrometer Design
• Choose from Four Wavelength Ranges:
  • 200 - 1000 nm with <2.0 nm Resolution
  • 350 - 700 nm with <0.5 nm Resolution
  • 500 - 1000 nm with <0.6 nm Resolution
  • 950 - 1700 nm with <9.0 nm Resolution
• PC Control with USB or Ethernet Connection
• Horizontal or Vertical Mounting Options:
  • Horizontal Mounting Using Two Through Holes for 1/4"-20 (M6) Screws
  • Two Slots for Vertical Mounting with CL4 Clamps

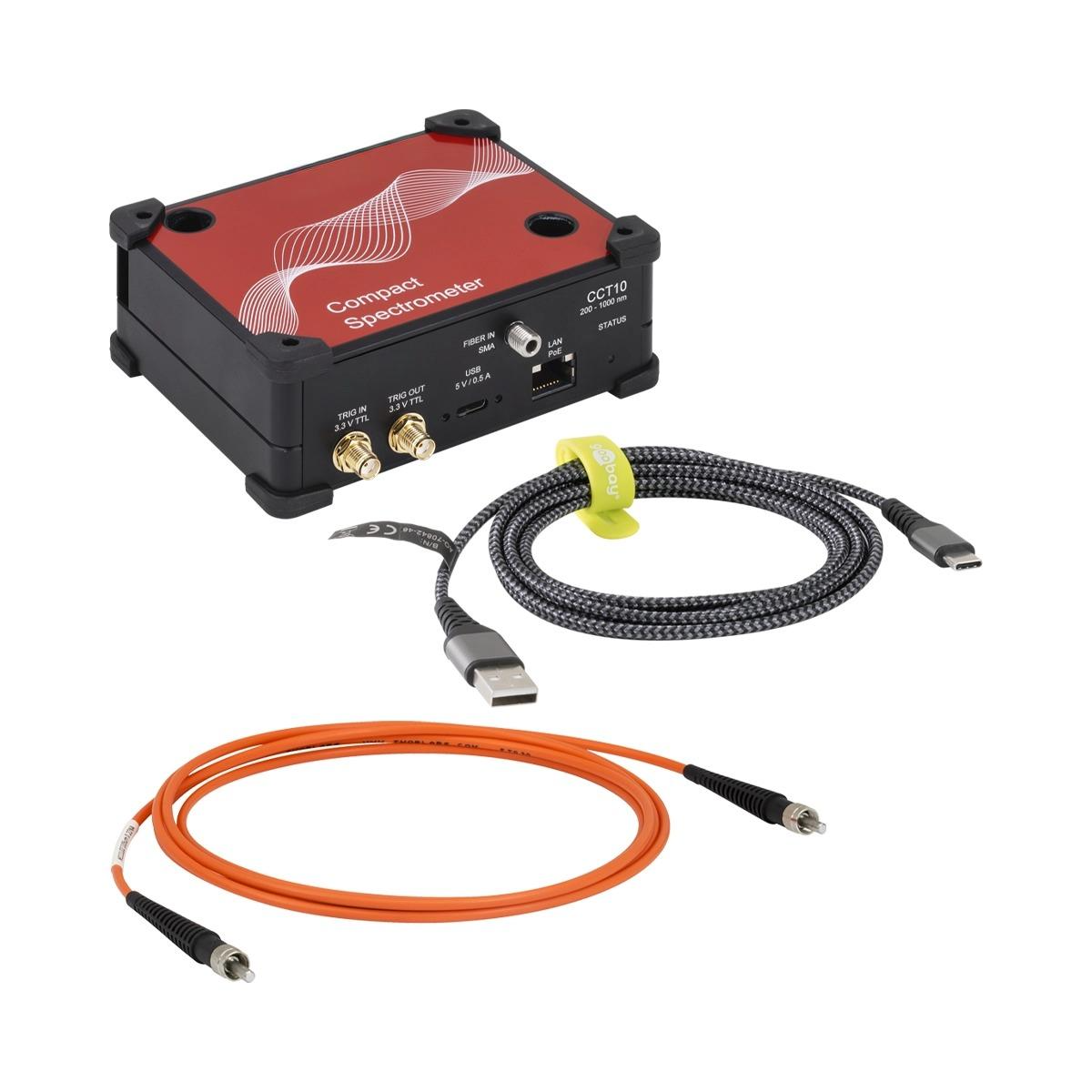

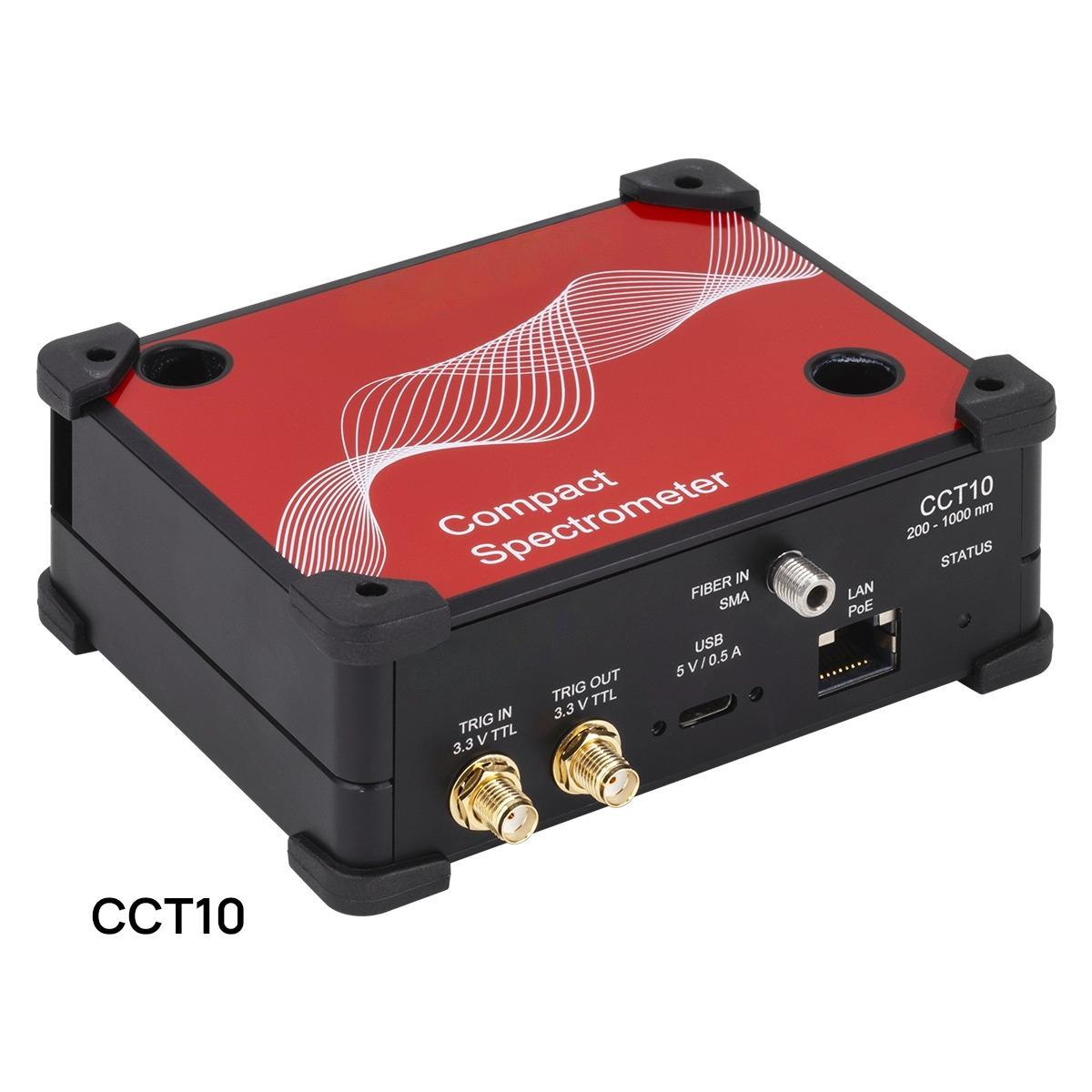

The TH-CCT10 Compact Spectrometers are roughly the same size as a portable hard drive. Each compact spectrometer is wavelength calibrated and amplitude corrected and is shipped with a calibration report and amplitude correction test data.

The test data is valid for both the spectrometer and the included patch cable. Thorlabs recommends recalibrating the spectrometer every 12 months, and also whenever a new patch cable will be used with the spectrometer, as the cable affects the amplitude correction.

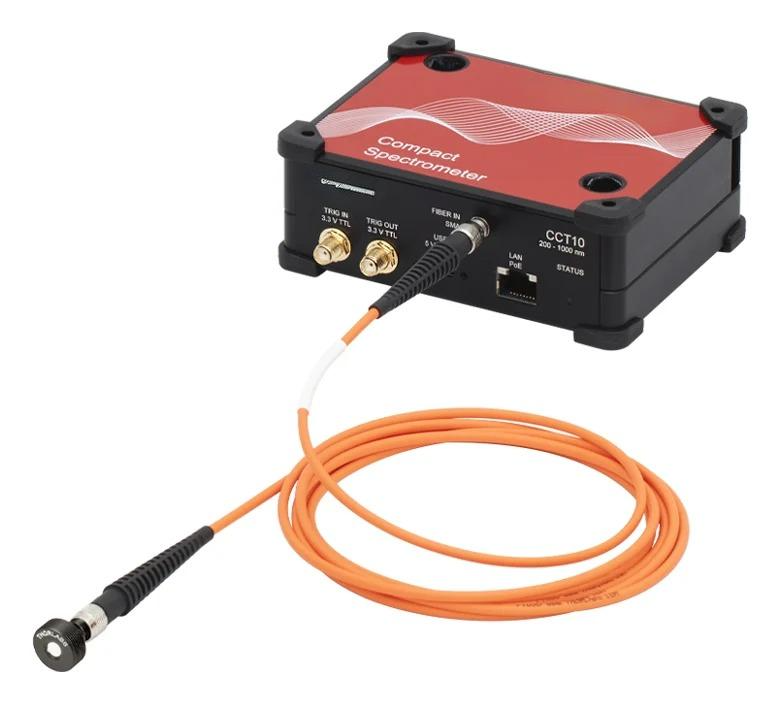

The input port accepts SMA905-connectorized fibers, and the CCSB1 cosine corrector available below can be used to adapt the spectrometers for free-space applications.
