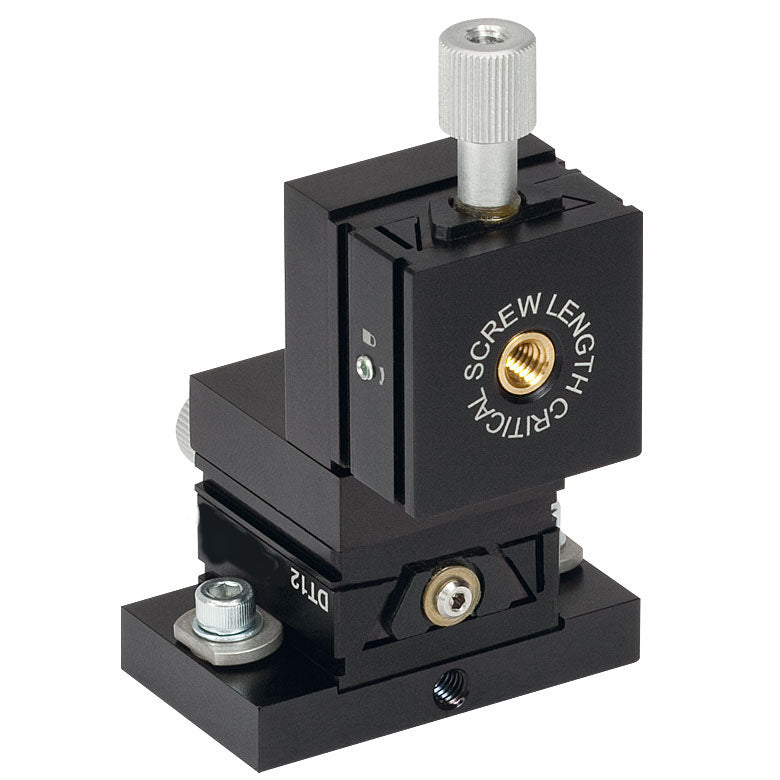

TH-DT12XZ - 1/2" XZ Dovetail Translation Stage with Baseplate, 8-32 Taps
TH-DT12XZ - 1/2" XZ Dovetail Translation Stage with Baseplate, 8-32 Taps
- Preconfigured, 2-Axis XY and XZ Translators
- Bottom-Located 8-32 (M4) Tap for diameter 1/2" Post Compatibility
- Top-Located 8-32 (M4) Tap for Mounting Components
- Each Stage Includes a DT12B(/M) Base Plate
- Lockable Axes of Translation
The TH-DT12XY(-M) and TH-DT12XZ(-M) are compact, two-axis translation stages that incorporate a dovetail and lead screw translation mechanism for smooth linear positioning along the entire range of travel for each axis. The TH-DT12XY(-M) consists of two TH-DT12(-M) stages, while the TH-DT12XZ(-M) consists of two TH-DT12(-M) stages and a DT12A Angle Bracket. Each stage also includes a base plate to mount it directly to an optical table.
