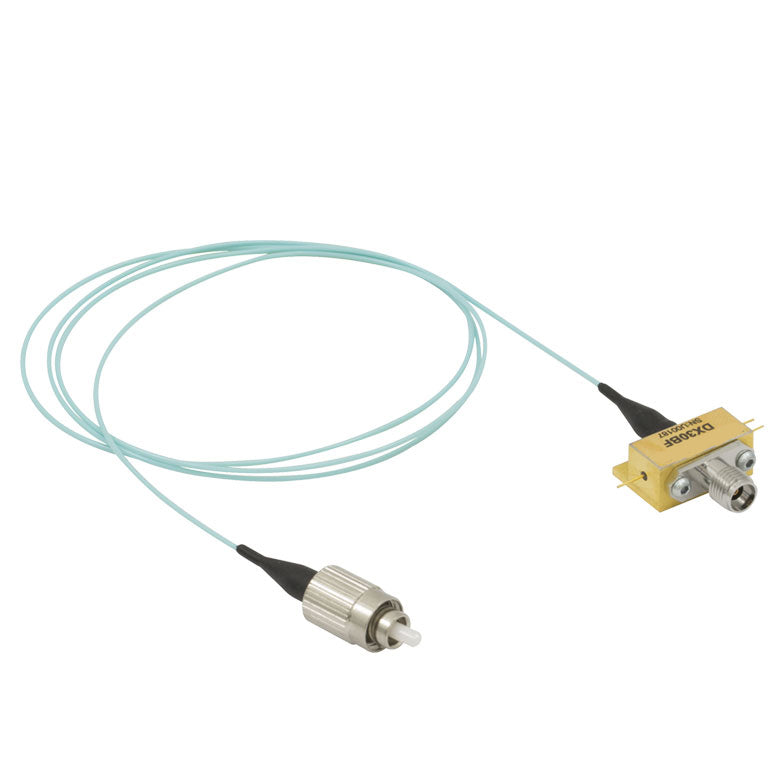

TH-DX30BF - Multimode Ultrafast Detector Module, 750 - 1650 nm, DC - 30 GHz, FC/PC

Fiber Pigtail OM4 (MM)

Bandwidth DC - 30 GHz (at 1560 nm)

Wavelength Range 750 - 1650 nm

Impulse Response 15 ps (FWHM at 1560 nm)

Responsivity 0.45 A/W (at 850 nm) 0.7 A/W (at 1310 nm)

Conversion Gain 11.3 V/W (at 850 nm) 17.5 V/W (at 1310 nm)

Optical Return Loss (Max) -8 dB (at 850/1310 nm)

Noise-Equivalent Power (NEP) 32 pW/√Hz

Photodiode Bias Voltage 4V

Product Drawing
